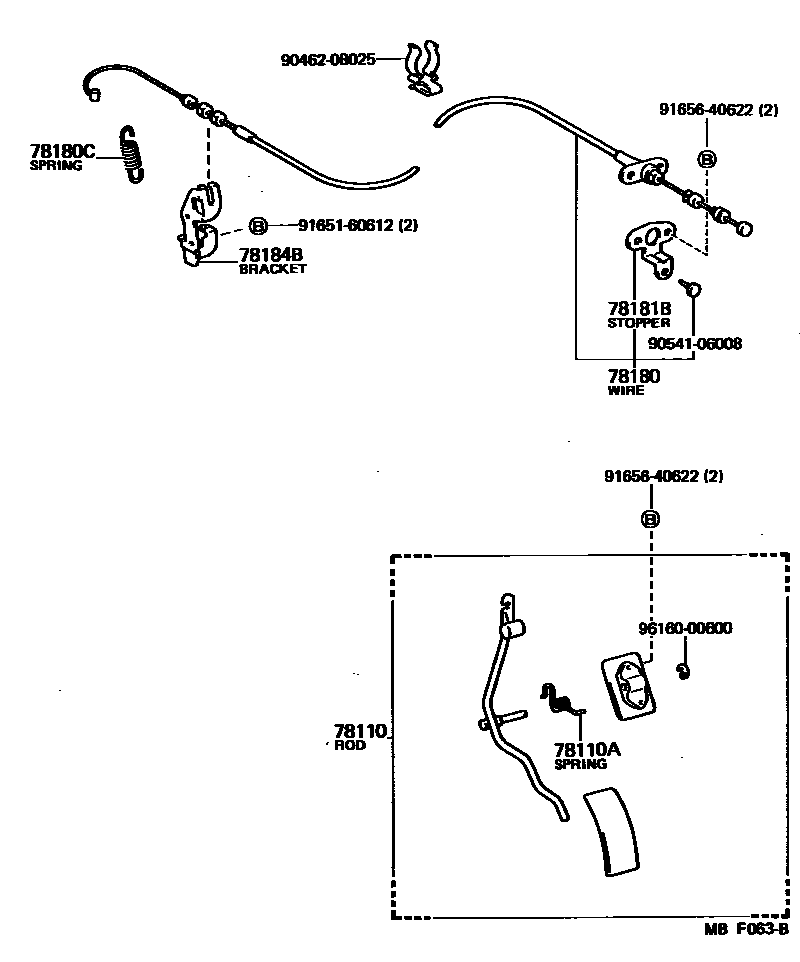

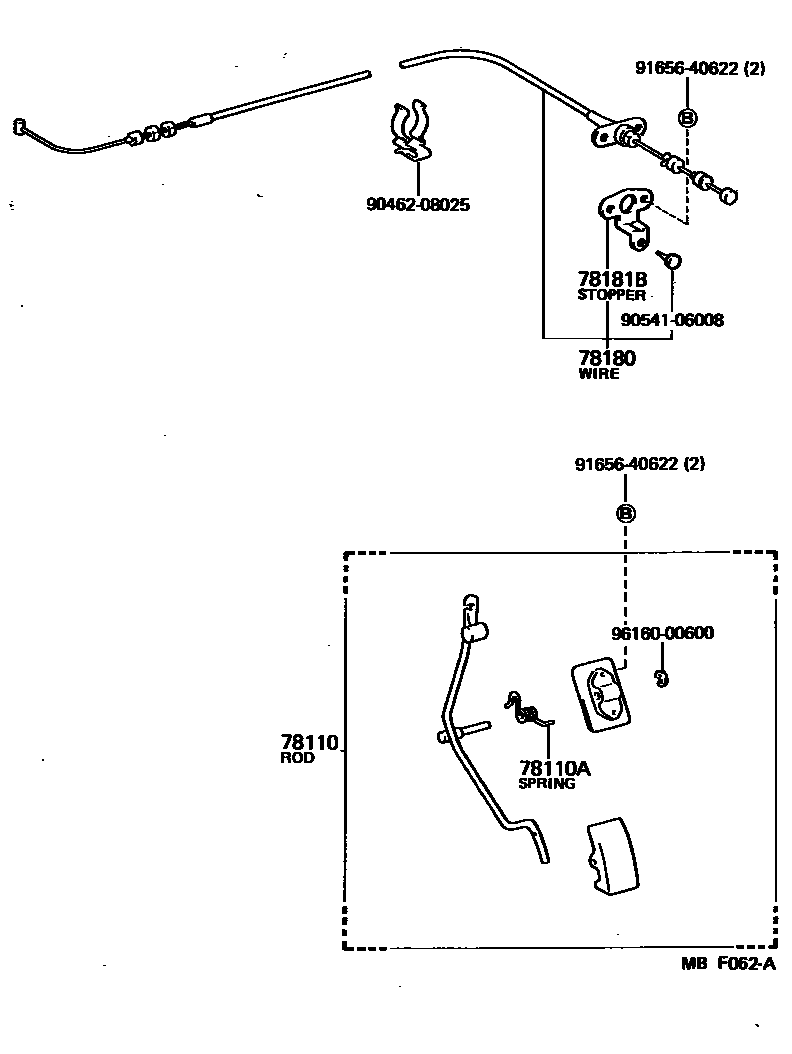

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110 | Accelerator pedal lever assembly | 78010-12100 · 78010-12110 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18055 · 90508-18398 |
| 78180 | Throttle cable assembly | 78180-12410 · 78180-12640 · 78180-12760 |
| 78180C | Tension spring (for throttle cable) | 90507-10009 · 90507-11004 |
| 78181B | Accelerator pedal idle speed adjustment stop | 78181-12051 · 78181-12090 |
| 78184B | Throttle pedal control cable bracket | 78184-12150 · 78184-12200 |
