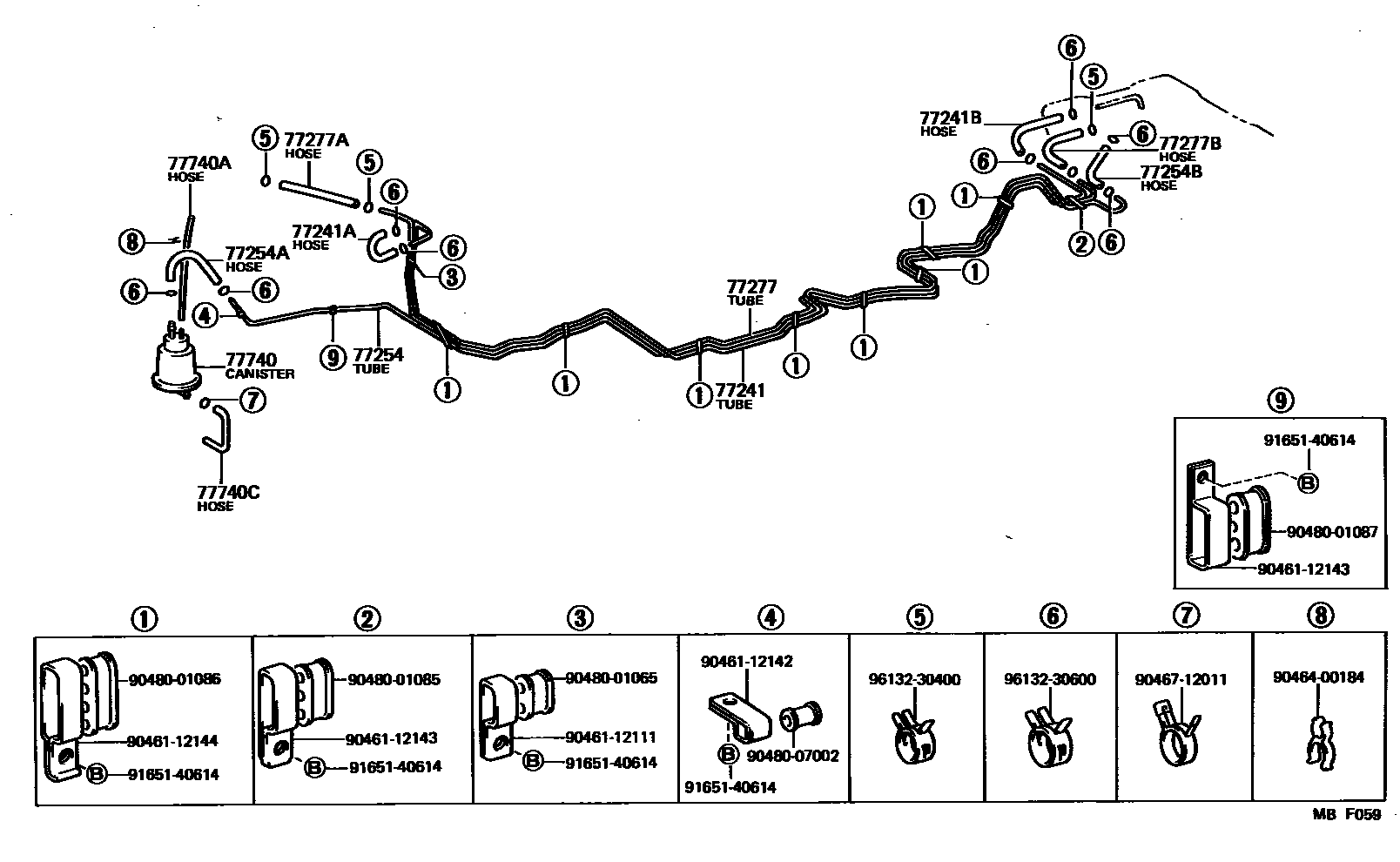

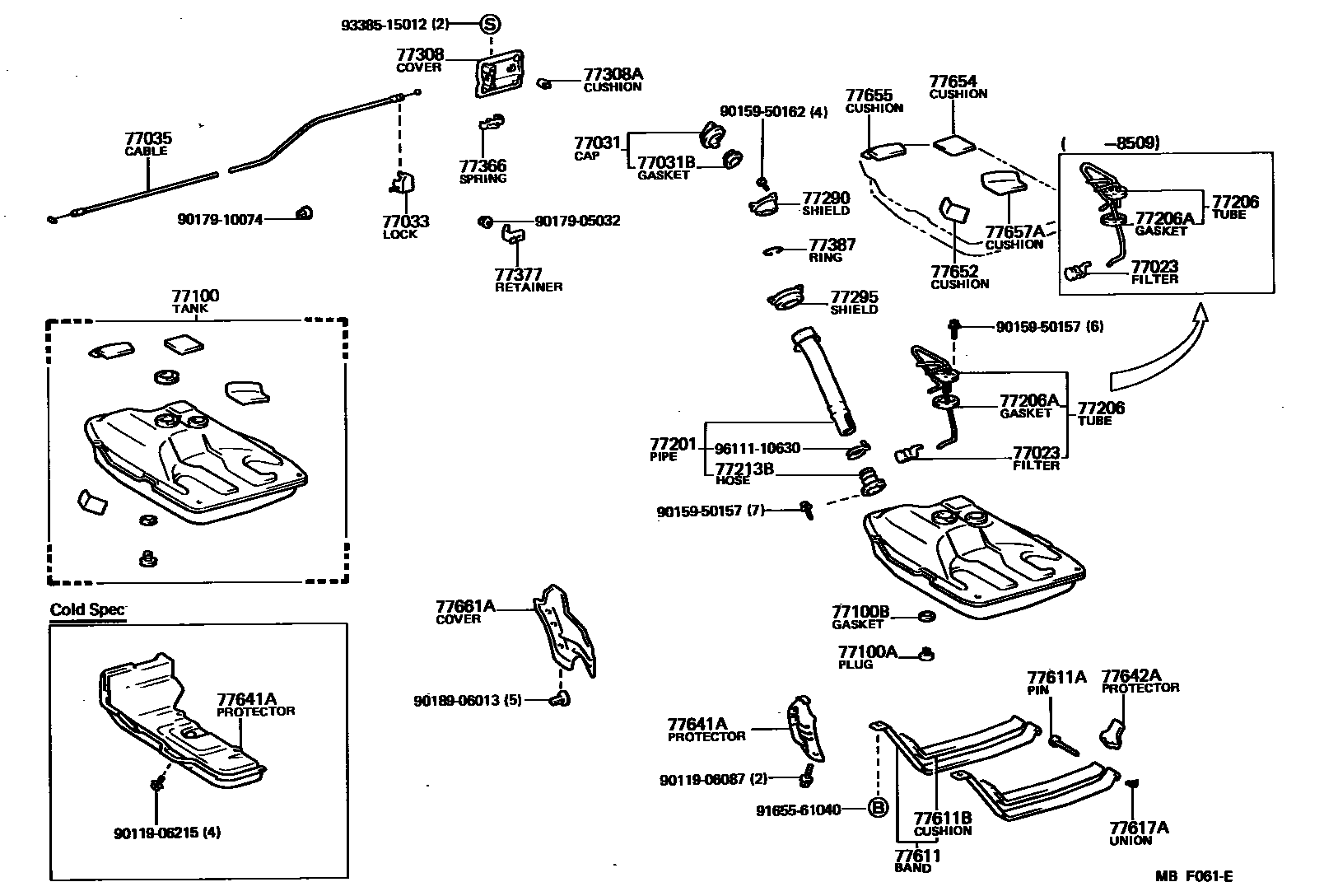

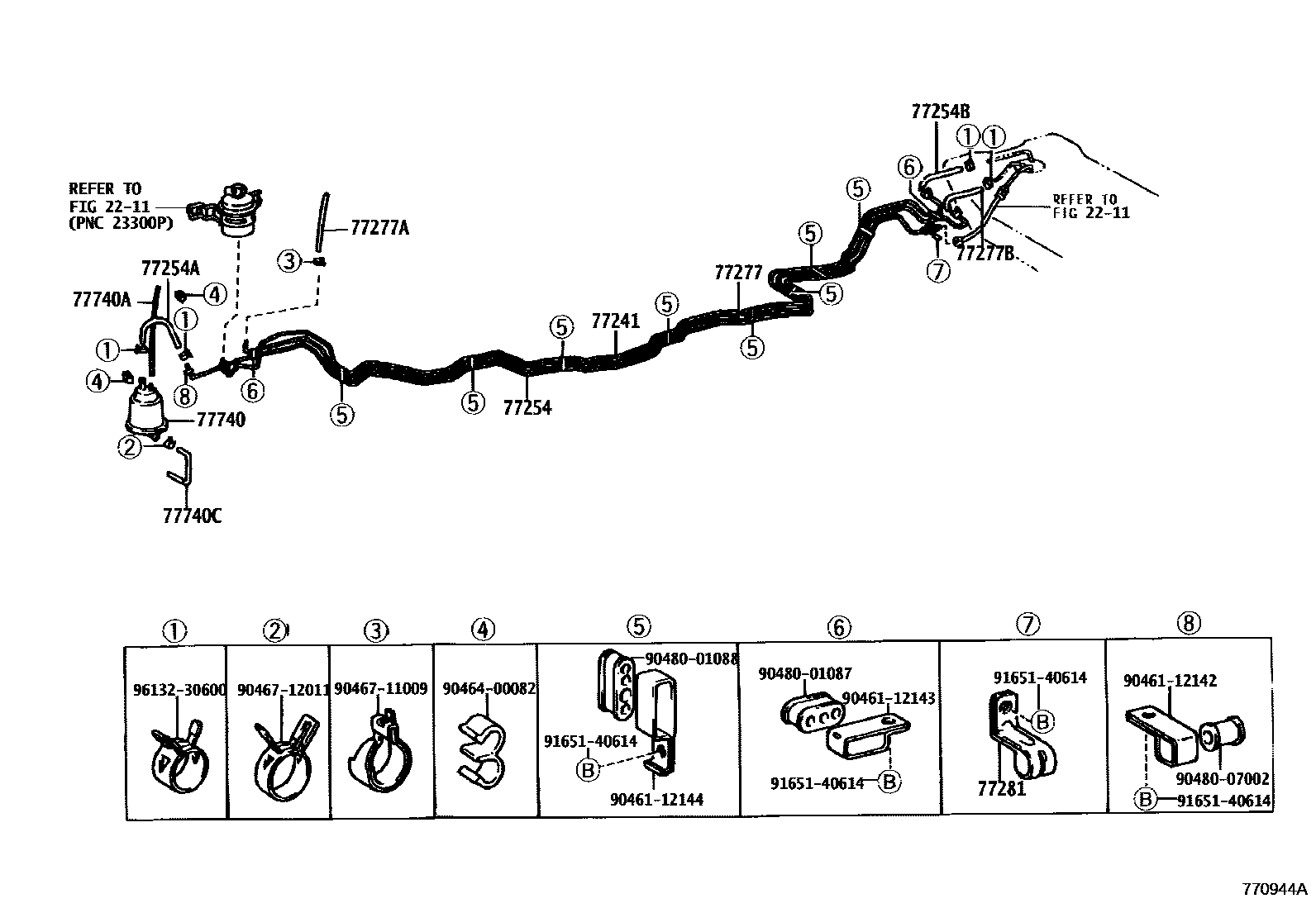

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 3 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77023 | Fuel suction pipe filter sub-assembly | 77023-12050 |
| 77031 | Fuel tank cap assembly | 77310-12100 |
| 77031B | Gasket (for fuel tank cap) | 77316-12050 |
| 77033 | Fuel tank cap lock sub-assembly | 77037-14010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12090 |
| 77100 | fuel tank assembly | 77001-19295 · 77001-19305 |
| 77100A | Screw plug (for fuel tank) | 90341-20004 |
| 77100B | Gasket (for fuel tank) | 90430-20007 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-16060 |
| 77206 | Fuel tank suction pipe sub-assembly | 77017-12210 · 77017-12240 · 77017-12260 · 77017-12380 |
| 77206A | Gasket (for fuel tank suction pipe) | 77178-10010 |
| 77213B | Fuel tank to filler pipe hose | 77213-14090 |
| 77241 | No. 1 main fuel pipe | 77205-12110 · 77205-12120 |
| 77241A | No. 1 fuel hose (for No. 1 main fuel line) | 95332-06020 · 95333-06020 |
| 77241B | No. 2 fuel hose (for No. 1 main fuel line) | 95332-06020 · 95333-06020 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77019-12090 · 77019-12100 |
| 77254A | No. 1 fuel hose (for No. 1 drain pipe) | 95332-06020 · 95333-06020 |
| 77254B | No. 2 fuel hose (for No. 1 drain pipe) | 95332-06020 · 95333-06020 · 95333-06022 |
| 77277 | No. 1 fuel return pipe | 77255-12150 · 77255-12160 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90447-12044 · 95333-04024 |
| 77277B | No. 2 fuel hose (for No. 1 return pipe) | 95333-04018 · 95333-06022 |
| 77281 | No. 1 main fuel pipe bracket | 77281-12020 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-12010 |
| 77295 | Fuel filler pipe cover | 77293-12020 |
| 77308 | Fuel inlet cap sub-assembly | 77350-12100 |
| 77308A | Cushion (for fuel inlet cap) | 90541-08009 |
| 77366 | Fuel filler cap hinge spring | 77360-24010 |
| 77377 | Fuel filler cap lock retainer | 77377-24010 |
| 77387 | fuel inlet ring | 77391-16010 |
| 77611 | fuel tank strap | 77601-12070 · 77601-16050 · 77602-12030 · 77602-16040 |
| 77611A | Pin (for fuel tank strap) | 90240-08020 |
| 77611B | No. 4 fuel tank liner | 77654-12021 |
| 77617A | Auxiliary fuel tank strap connector | 77617-12010 |
| 77641A | No. 1 fuel tank protective shell | 77641-12130 · 77641-16030 |
| 77642A | No. 2 fuel tank protective shell | 77642-12010 |
| 77652 | No. 1 fuel tank liner | 77651-16050 · 77655-12021 |
| 77654 | No. 2 fuel tank liner | 77652-12041 |
| 77655 | No. 3 fuel tank liner | 77653-12031 |
| 77657A | No. 5 fuel tank liner | 77655-12021 |
| 77661A | Fuel tank filler hose cap | 77661-12030 · 77661-12040 |
| 77740 | Carbon canister assembly | 77704-12270 |
| 77740A | No. 1 fuel hose (for canister) | 17361-15070 |
| 77740C | No. 3 fuel hose (for charcoal canister) | 77754-12030 |
