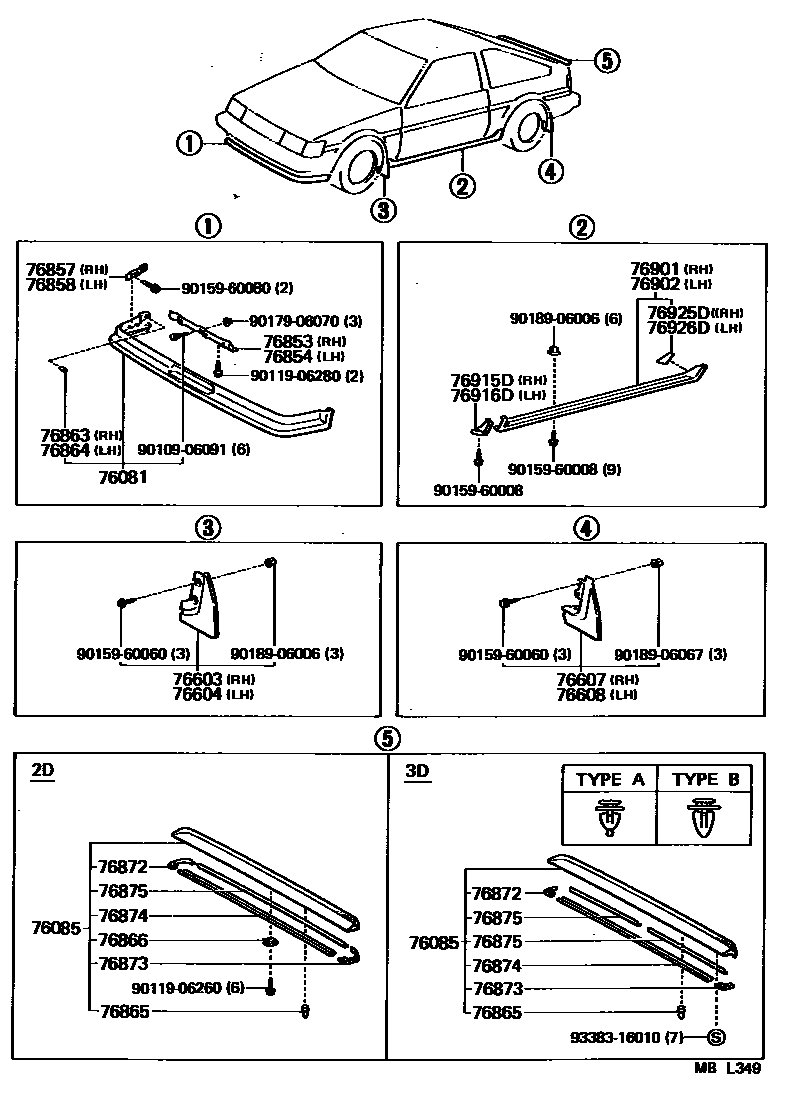

Toyota COROLLA 挡泥板和扰流板 — Figure 7601
Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76081 | Front spoiler sub-assembly | 76081-12010 |
| 76085 | Rear spoiler sub-assembly | 76085-12010 · 76085-12030 |
| 76603 | Right front fender fender sub-assembly | 76621-19075 · 76621-19076 |
| 76604 | Left front fender fender sub-assembly | 76622-19075 · 76622-19076 |
| 76607 | Right rear side fender sub-assembly | 76607-19175 · 76607-19275 |
| 76608 | Left rear side fender sub-assembly | 76608-19175 · 76608-19275 |
| 76853 | Fixing piece on right front spoiler | 76853-12020 |
| 76854 | Fixing bracket on left front spoiler | 76854-12020 |
| 76857 | Right front spoiler fixing | 76857-12010 |
| 76858 | Left front spoiler fixing | 76858-12010 |
| 76863 | No. 2 right front spoiler fixing piece | 76863-12010 |
| 76864 | No. 2 left front spoiler fixing piece | 76863-12010 |
| 76865 | No. 1 rear spoiler fixing piece | 76865-12020 · 76865-12040 |
| 76866 | No. 2 rear spoiler fixing piece | 76865-12030 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12020 · 76872-12030 |
| 76873 | No. 2 rear spoiler protective strip | 76873-12020 · 76873-12030 |
| 76874 | No. 3 rear spoiler protective strip | 76874-12020 · 76874-12030 |
| 76875 | No. 4 rear spoiler protective strip | 76875-12030 · 76875-12040 |
| 76901 | Right fender sub-assembly | 76901-12010 · 76901-12011 |
| 76902 | Left fender sub-assembly | 76902-12010 · 76902-12011 |
| 76915D | Right front fender | 76915-12010 · 76915-12011 |
| 76916D | Left front fender | 76916-12010 · 76916-12011 |
| 76925D | Right fender protection strip | 76925-12010 |
| 76926D | Left fender protection strip | 76926-12010 |
