Toyota COROLLA 侧防护条 — Figure 7503

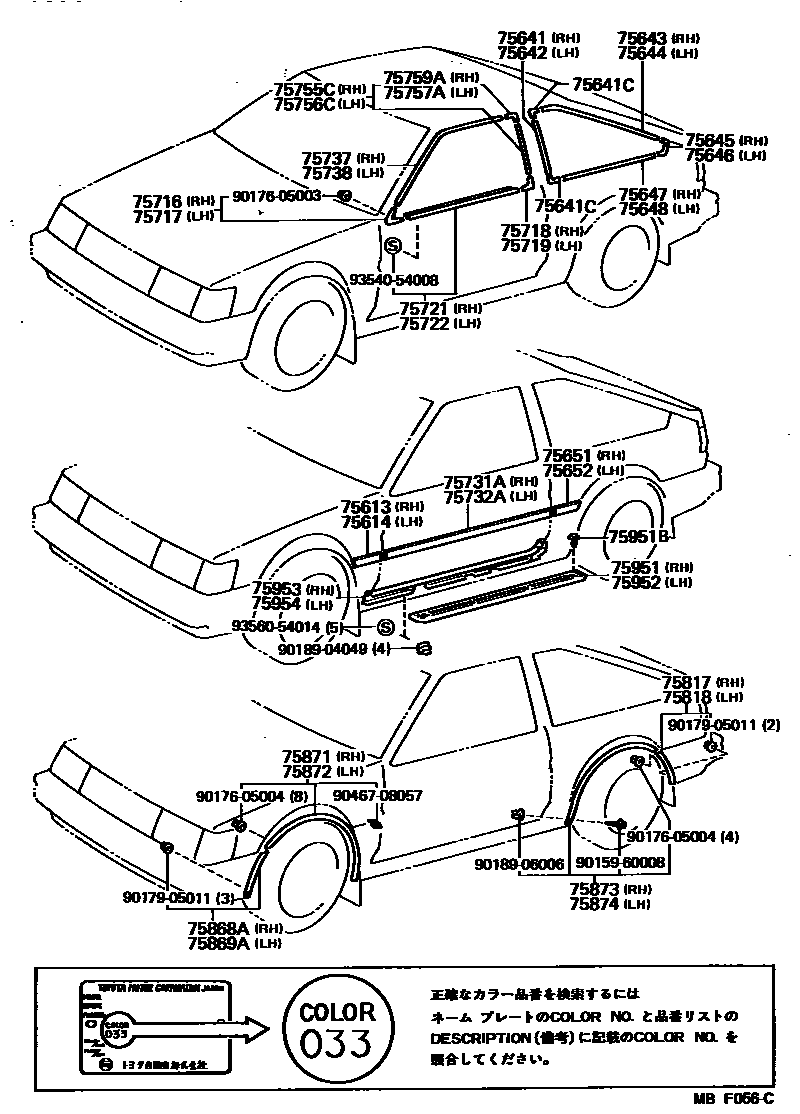

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75641 | Right front corner window outer protective strip | 75641-12100 · 75641-12110 · 75641-12120 |
| 75641C | Corner window protective strip joint | 76651-12031 · 76651-12041 · 76651-12051 · 76652-12031 · 76652-12041 · 76652-12051 · 76653-12031 · 76653-12041 · 76653-12051 · 76654-12031 · 76654-12041 · 76654-12051 |
| 75642 | Left front corner window protection strip | 75642-12100 · 75642-12110 · 75642-12120 |
| 75643 | Protective strip on the outside of the right corner window | 75643-12030 · 75643-12040 · 75643-12050 |
| 75644 | Protective strip on the outside of the left corner window | 75644-12030 · 75644-12040 · 75644-12050 |
| 75645 | Right rear corner window protection strip | 75645-12031 · 75645-12041 · 75645-12051 |
| 75646 | Left rear corner window protection strip | 75646-12031 · 75646-12041 · 75646-12051 |
| 75647 | Right corner window outer lower protective strip | 75647-12030 · 75647-12040 · 75647-12050 |
| 75648 | Left corner window outer lower protective strip | 75648-12030 · 75648-12040 · 75648-12050 |
| 75651 | Right side outer protective strip | 75651-12350 |
| 75652 | Left side outer protective strip | 75652-12350 |
| 75716 | Right front door waistline front protective strip end cover | 75716-19015 · 75716-19025 |
| 75717 | Left front door waistline front protective strip end cover | 75717-19015 · 75717-19025 |
| 75718 | Right front door waistline rear protective strip end cover | 75718-12030 · 75718-12040 |
| 75719 | Left front door waistline rear protective strip end cover | 75719-12010 · 75719-12020 |
| 75721 | Right front door waistline protection strip | 75710-19175 · 75710-19195 |
| 75722 | Left front door waistline protection strip | 75720-19175 · 75720-19195 |
| 75737 | Right front door window frame front protective strip | 75751-12140 · 75751-12150 |
| 75738 | Left front door window frame front protective strip | 75752-12140 · 75752-12150 |
| 75755C | Right front door window frame rear protective strip | 75755-12060 · 75755-12070 |
| 75756C | Left front door window frame rear protective strip | 75756-12080 · 75756-12090 |
| 75757A | Left front door window frame rear protective strip joint cover | 75757-12040 · 75757-12050 |
| 75759A | Right front door window frame rear protective strip joint cover | 75759-12040 · 75759-12050 |
| 75817 | No. 2 right side panel wheel opening protective strip | 75817-19015 |
| 75818 | No. 2 left side enclosure wheel opening protective strip | 75818-19015 |
| 75868A | No. 2 right front fender wheel opening protective strip | 75868-19015 |
| 75869A | No. 2 left front fender wheel opening protective strip | 75869-19015 |
| 75871 | Right front fender wheel well protection strip | 75871-19185 |
| 75872 | Left front fender wheel well protection strip | 75872-19185 |
| 75873 | Right side panel wheel mouth protection strip | 75873-19115 · 75873-19125 |
| 75874 | Left side panel wheel mouth protection strip | 75874-19115 · 75874-19125 |
