Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 3 PNC and OE references.

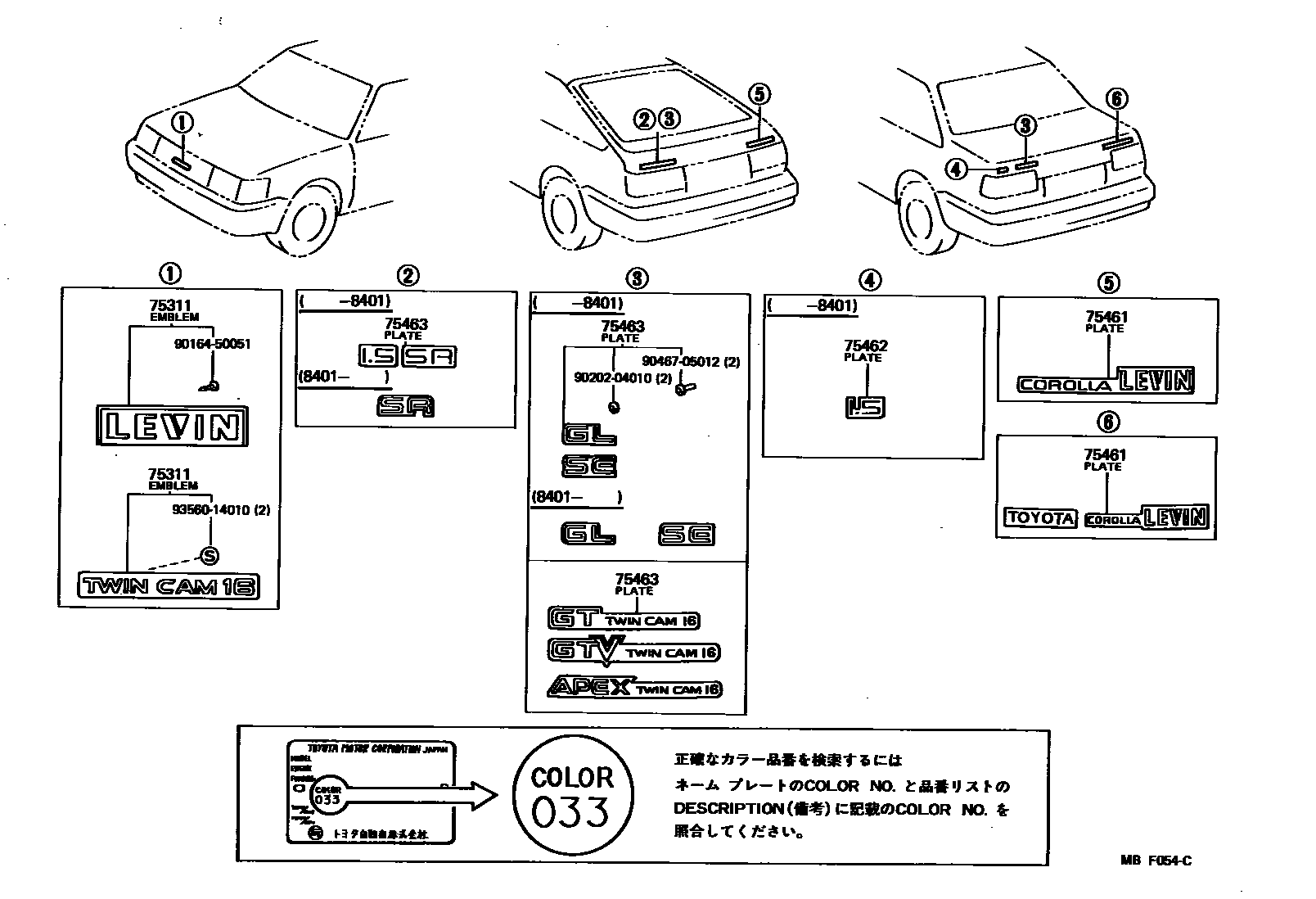

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — MBF054C
丰田徽标和铭牌(车外和车内) — MBF054C (198305 – 198505)

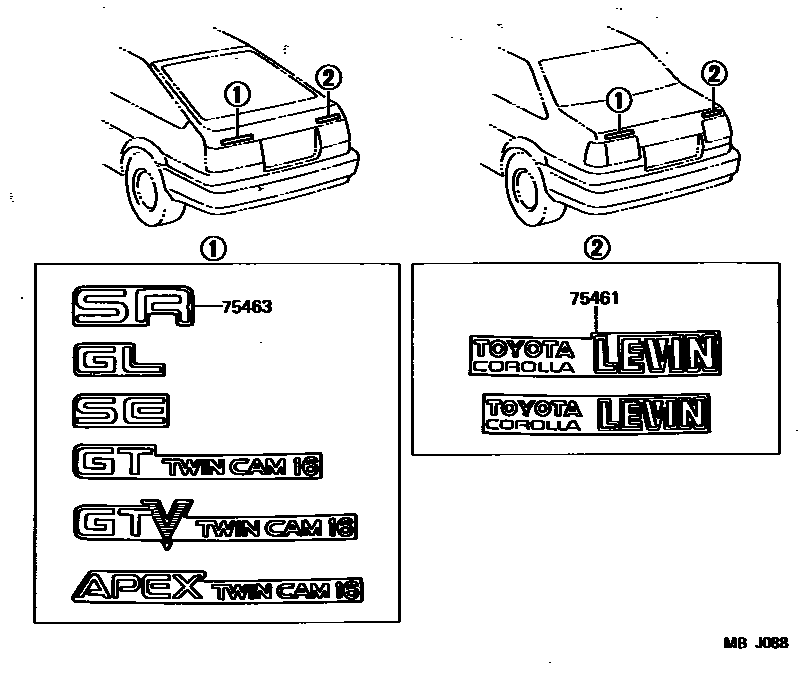

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — MBJ088
丰田徽标和铭牌(车外和车内) — MBJ088 (198505 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-80031 · 75321-19835
75462Rear No. 3 nameplate (displacement)75444-12160
75463Rear No. 4 nameplate (grade mark)75443-12420 · 75443-12440
