Toyota COROLLA 扶手和遮阳板 — Figure 7401

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 2 images and 3 PNC and OE references.

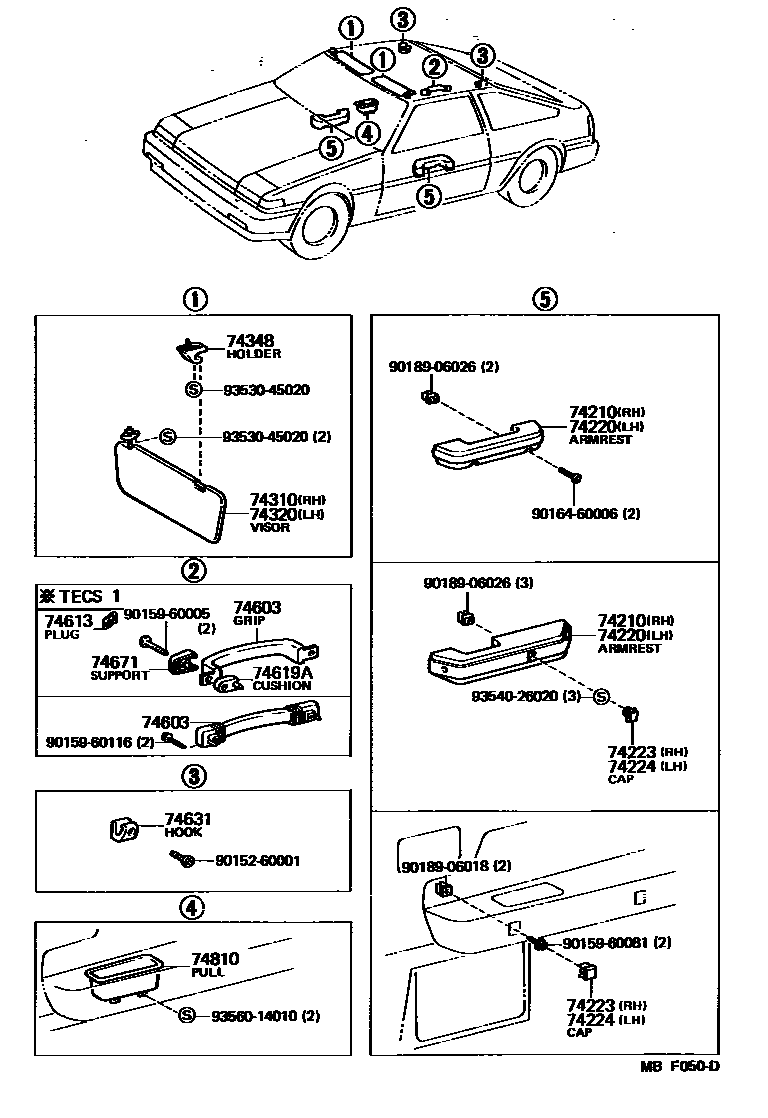

Toyota COROLLA 扶手和遮阳板 EPC diagram — MBF050D
扶手和遮阳板 — MBF050D (198305 – 198505)

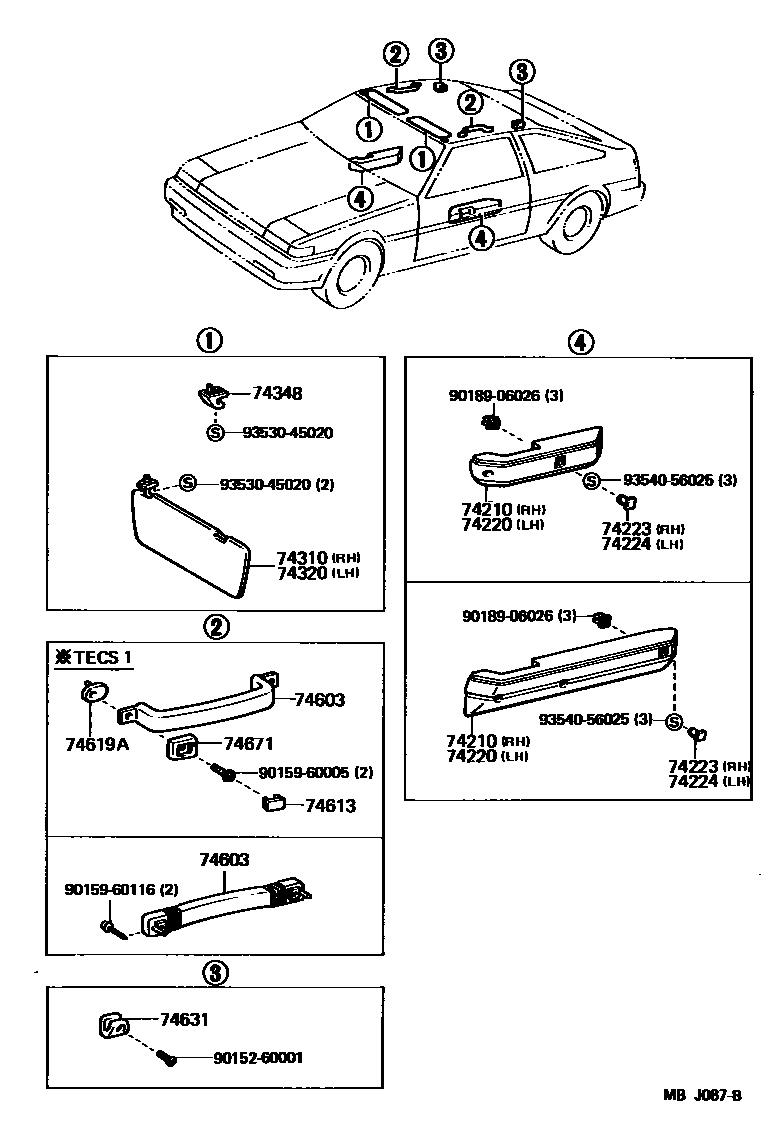

Toyota COROLLA 扶手和遮阳板 EPC diagram — MBJ087B
扶手和遮阳板 — MBJ087B (198505 – 999999)

PNC and OE references

PNCPart nameOE numbers
74310Right sun visor assembly74310-12320 · 74310-12370 · 74310-12380
74320Left sun visor assembly74320-12260 · 74320-12280
74619AAuxiliary handle cushion74619-12010
