Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

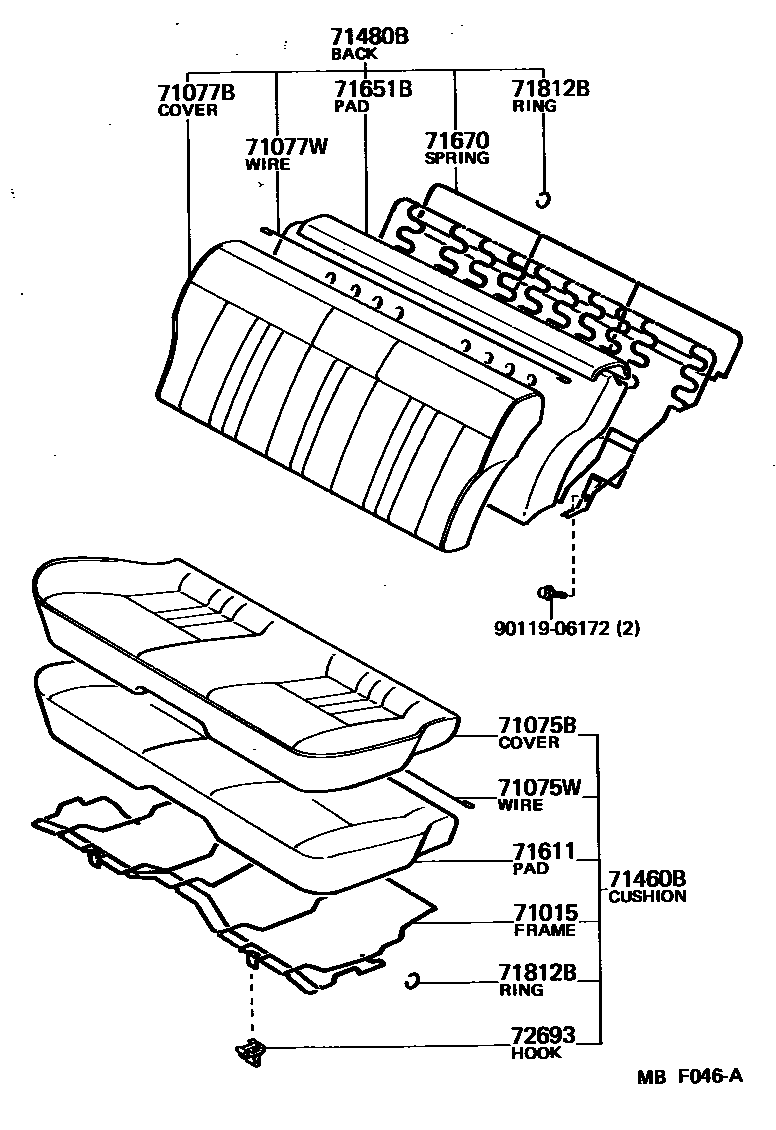

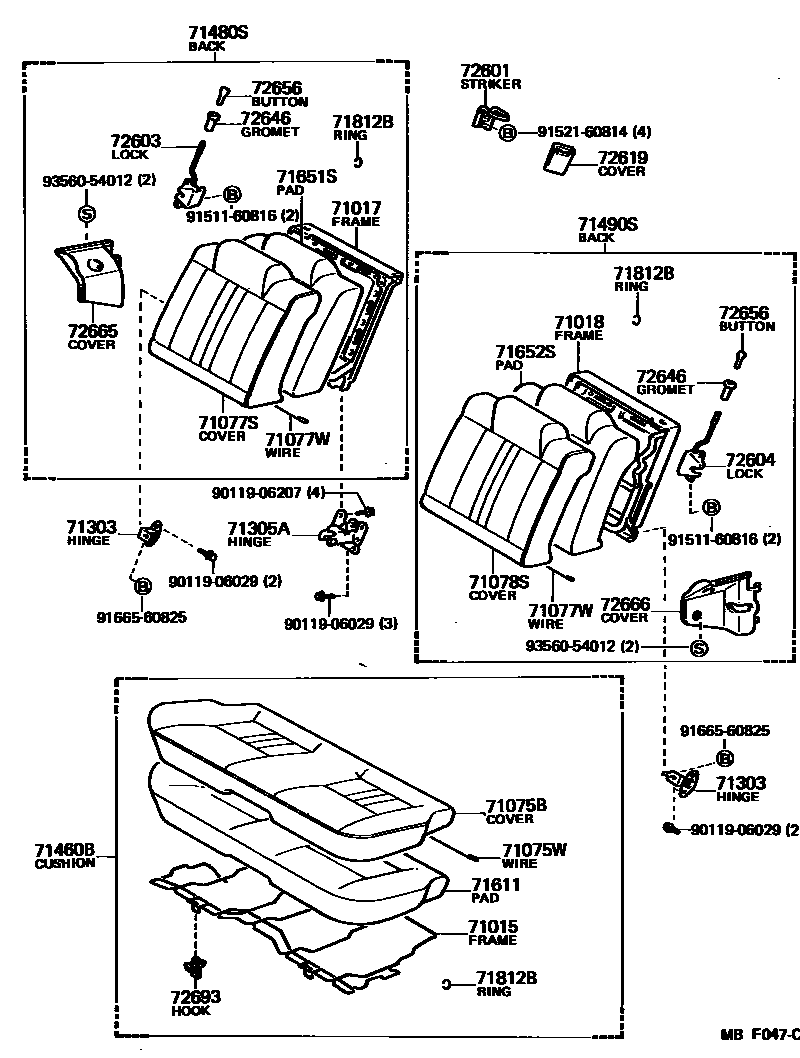

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-12240 · 71015-12241 |
| 71017 | Right rear seat back frame sub-assembly | 71202-12060 · 71202-12080 |
| 71018 | Rear left seat back frame sub-assembly | 71203-12040 · 71203-12060 |
| 71075B | Rear seat cushion cover (for bench seat) | 71065-12870 |
| 71075W | Rear seat cushion protective wire | 90580-20009 · 90580-20133 |
| 71077B | Rear seat backrest cover (for bench seat) | 71077-1E830 |
| 71077W | Rear seat backrest protective wire | 90580-20015 · 90580-20032 · 90580-20091 · 90580-20096 · 90580-20103 · 90580-29005 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12040 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12050 |
| 71460B | Rear seat cushion assembly (for bench seat) | 71460-1A850 |
| 71480B | Rear seat back assembly (for bench seat) | 71480-1E520 |
| 71611 | Rear seat cushion cushion | 71611-12380 · 71611-12390 · 71611-12400 · 71611-12410 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-12010 · 71507-12030 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12370 · 71651-12380 · 71651-12400 · 71651-12410 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12280 · 71652-12290 · 71652-12300 · 71652-12310 |
| 71670 | Rear seat back spring assembly (for bench seat) | 71670-12200 |
| 71812B | Clip (for rear seat cushion cover) | 90467-18071 |
| 72601 | Rear seat lock sub-assembly | 72601-12070 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12080 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12070 |
| 72693 | Rear seat cushion hook | 72693-12010 |
