Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

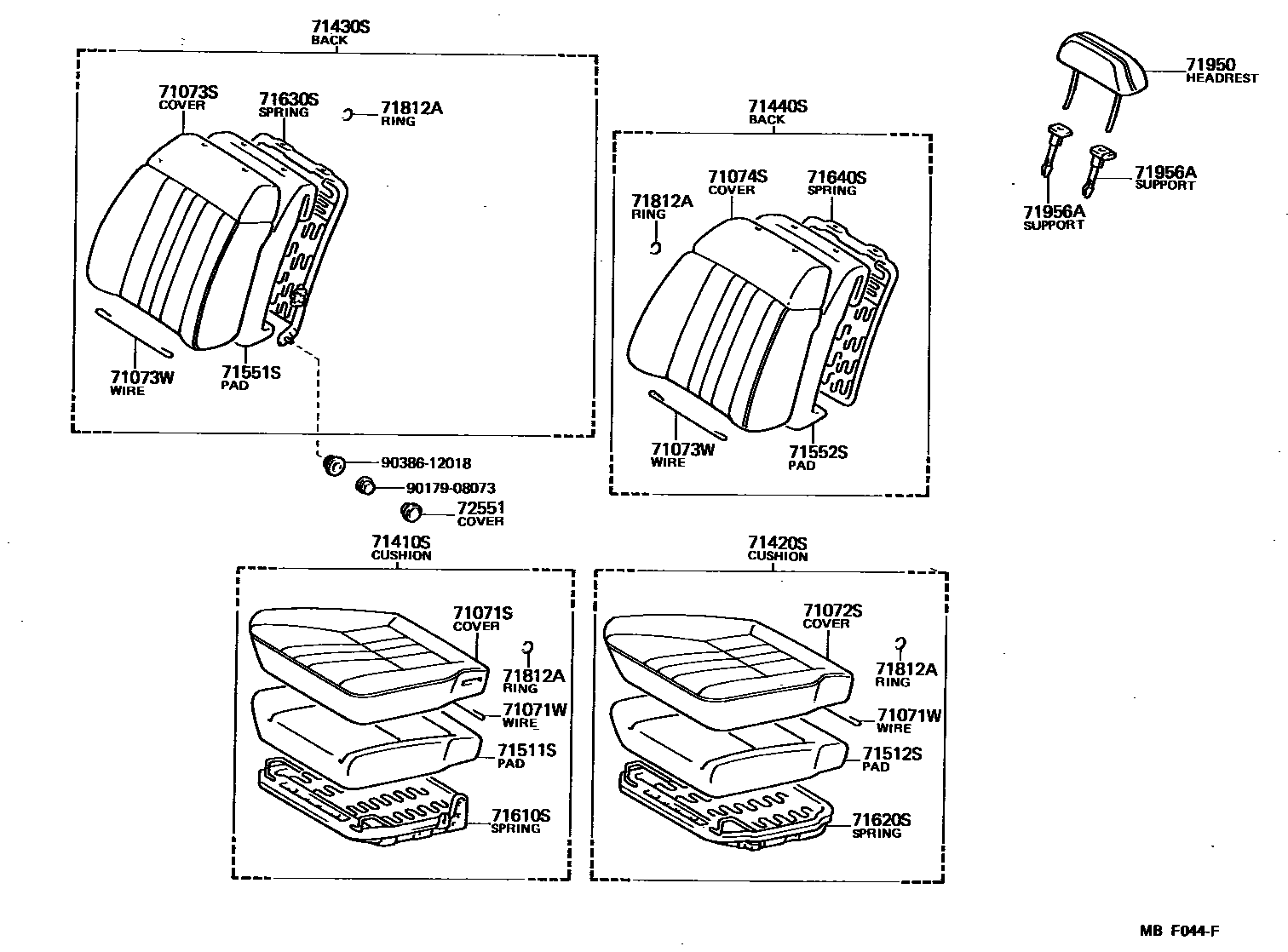

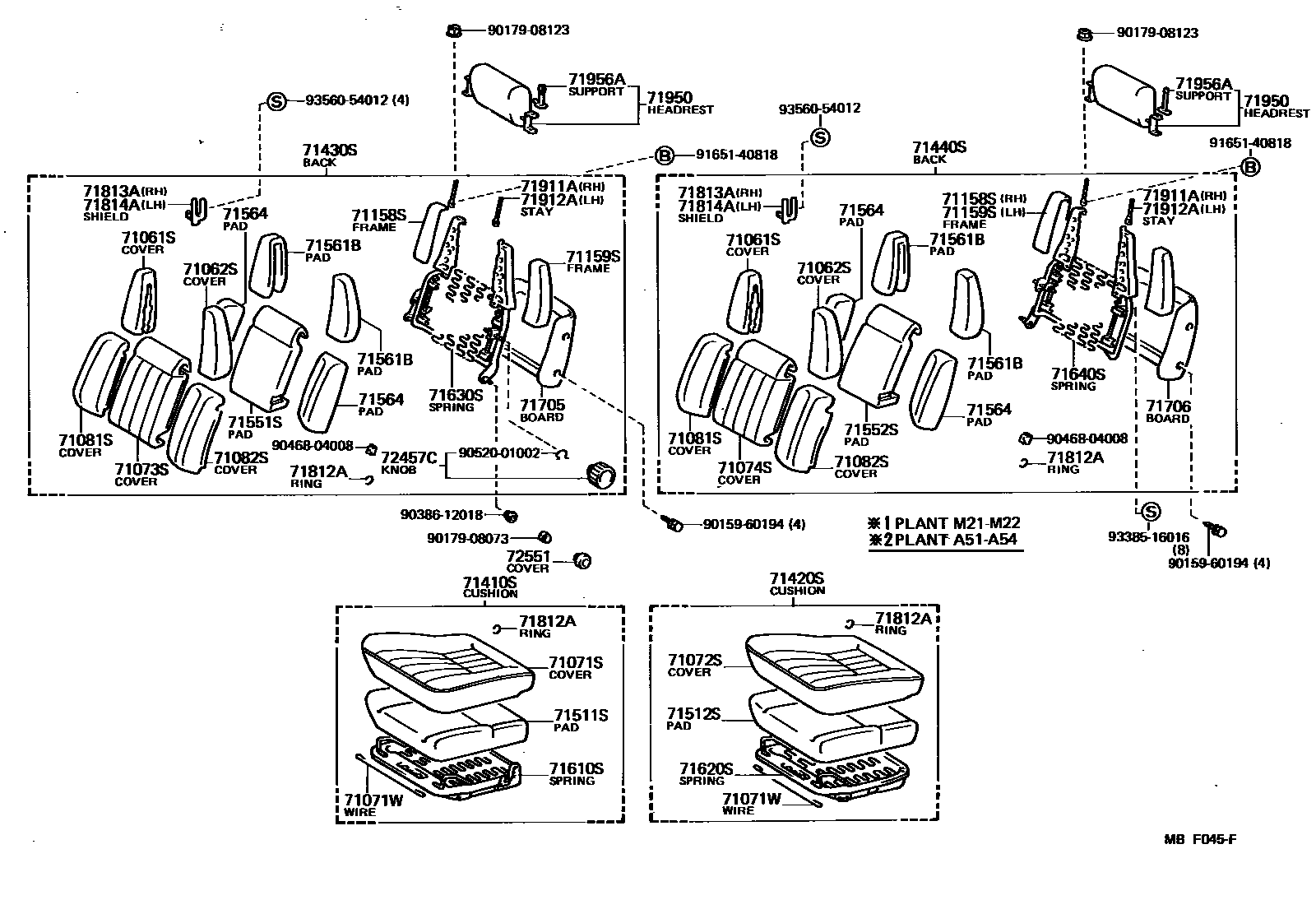

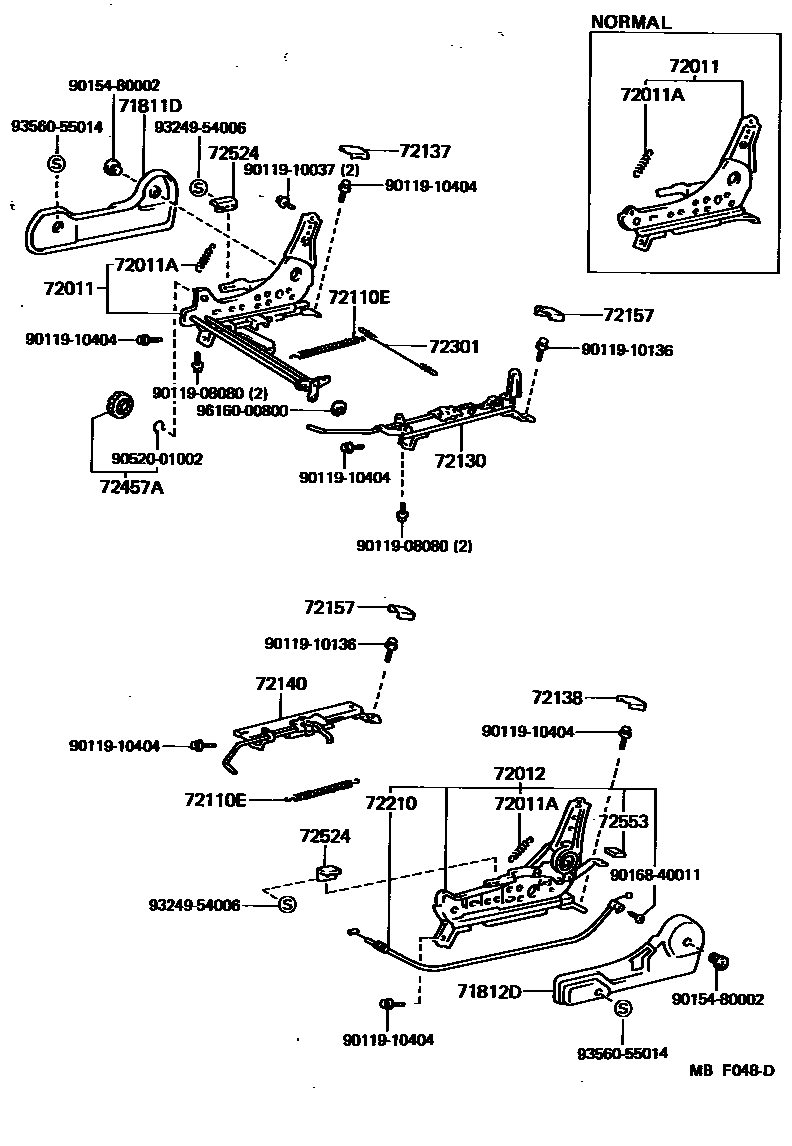

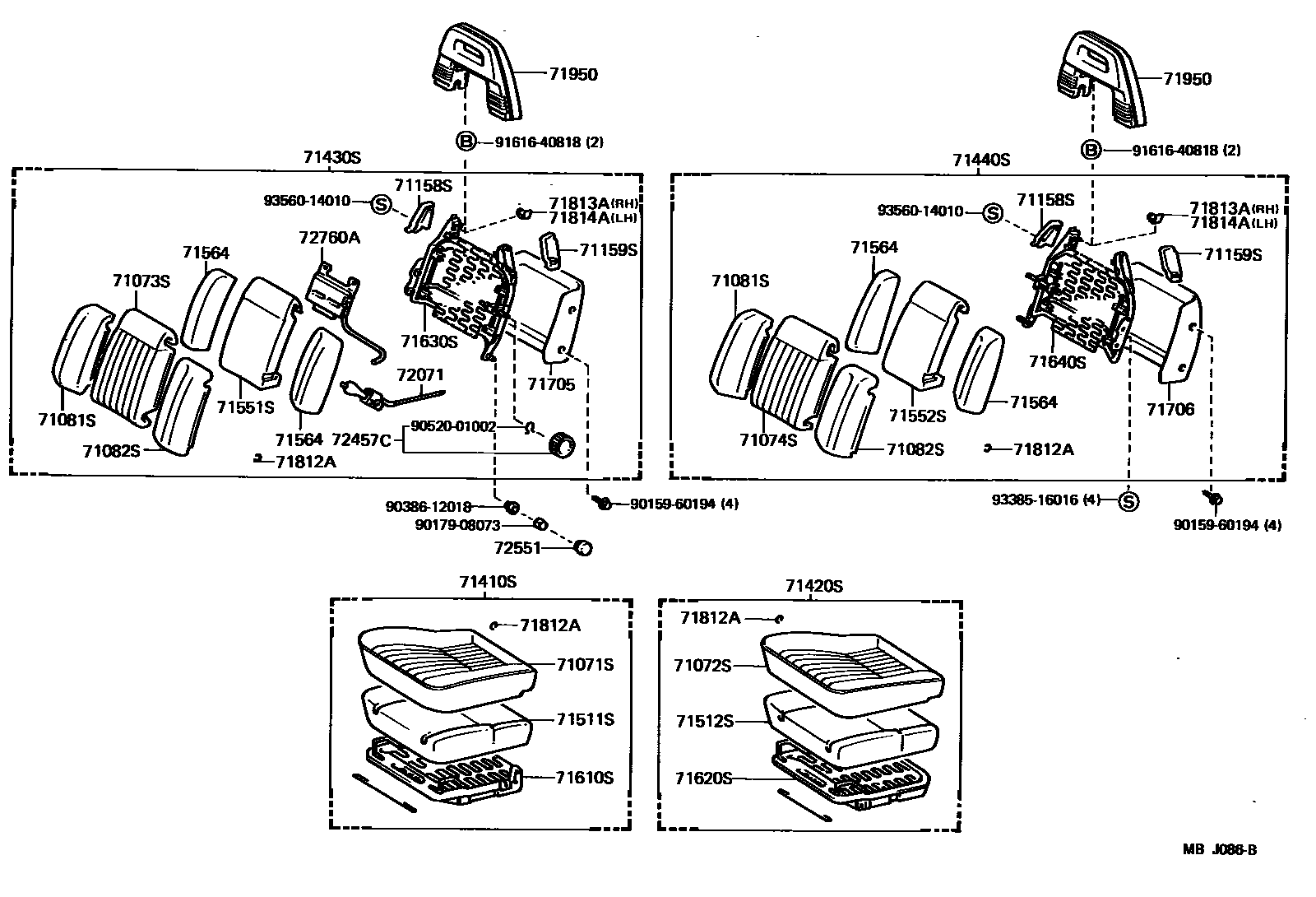

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71071S | Front right seat cushion cover (for split seats) | 71071-1A850 |
| 71071W | Front seat cushion protective wire | 90580-20019 · 90580-20103 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-1A860 |
| 71073S | Front right seat back cover (for split seats) | 71073-1E210 |
| 71073W | Front seat back cover wire | 90580-20020 |
| 71074S | Front left seat back cover (for split seats) | 71074-1A230 |
| 71158S | Front right seat back frame | 71158-12060 · 71158-12080 |
| 71159S | Front left seat back frame | 71159-12040 · 71159-12060 |
| 71410S | Front right seat cushion assembly (for split seats) | 71410-1E180 |
| 71420S | Front left seat cushion assembly (for split seats) | 71420-1E160 |
| 71430S | Front right seat back assembly (for split seats) | 71430-1E420 |
| 71440S | Front left seat back assembly (for split seats) | 71440-1E360 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12440 · 71511-12460 · 71511-12540 · 71511-14140 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12440 · 71511-12460 · 71511-12540 · 71511-14140 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12390 · 71551-12400 · 71551-12410 · 71551-12420 · 71551-12500 · 71551-12510 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12390 · 71551-12400 · 71551-12410 · 71551-12420 · 71551-12500 · 71551-12510 |
| 71561B | Padded front seat backrest | 71561-12180 · 71562-12040 |
| 71564 | Front seat backrest side cushions | 71563-12050 · 71564-12010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12160 · 71610-12161 · 71610-12170 · 71610-12180 · 71610-12190 · 71610-12201 · 71610-12250 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-12141 · 71620-12150 · 71620-12181 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-12270 · 71630-12290 · 71630-12330 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-12220 · 71640-12230 · 71640-12300 |
| 71812A | Small clamp ring (for front seats) | 90468-18071 |
| 71911A | Front right seat headrest stay | 71911-14050 |
| 71912A | Front left seat headrest stay | 71912-14040 |
| 71950 | Front seat headrest assembly | 71910-12410 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-12300 · 72010-12380 · 72010-12390 · 72010-12440 · 72010-12500 · 72010-12510 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-18015 |
| 72012 | Front left seat outer adjuster sub-assembly | 72020-12400 · 72020-12440 |
| 72110E | No. 1 tensioning spring (for seat slide rail) | 90506-18020 |
| 72130 | Right seat inner slide rail assembly | 72130-12330 · 72130-12410 · 72130-12420 · 72130-12450 |
| 72140 | Left seat inner slide rail assembly | 72140-12390 |
| 72210 | Seat slide rail control cable assembly | 72210-14100 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-12050 |
| 72551 | Seat No. 1 backrest tilt hinge cover | 72551-12070 |
| 72553 | Seat back tilt pedal cover | 72553-12040 |
| 72760A | Lumbar support adjuster assembly | 72750-12050 |
