Toyota COROLLA 底板和底板装饰罩 — Figure 6404

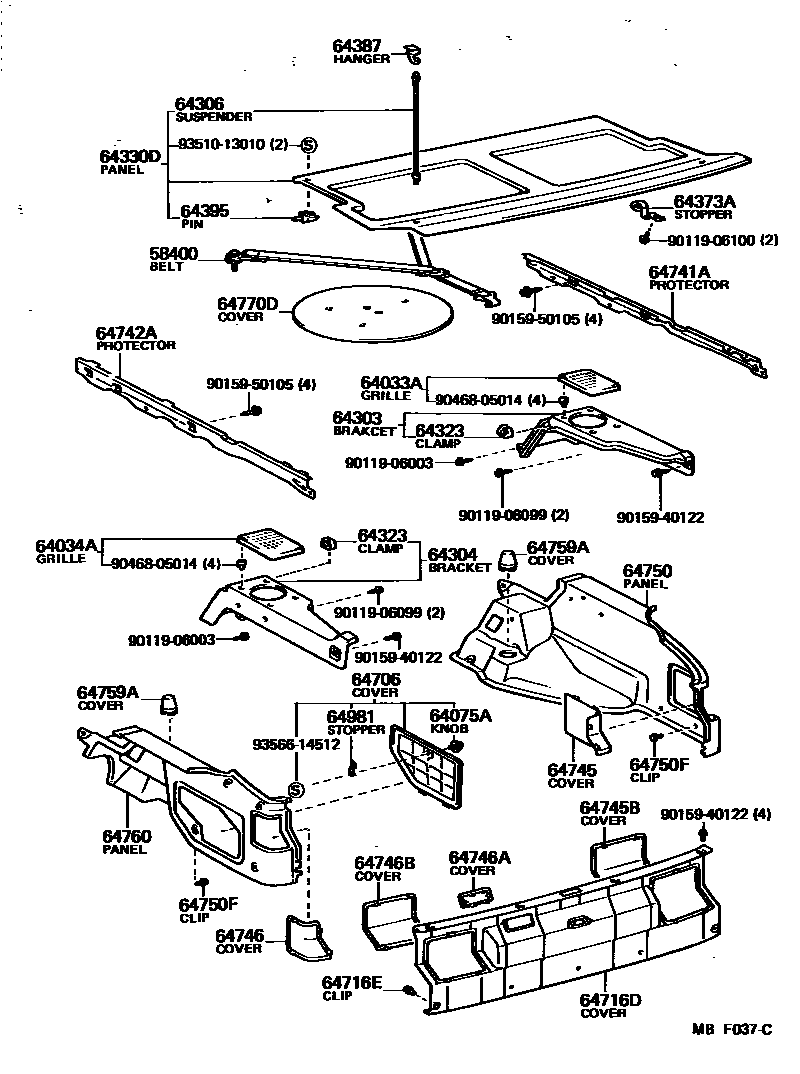

Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58400 | No. 1 suitcase fixing strap assembly | 58400-12030 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-12010 |
| 64323 | Glove box decorative plate clip No. 1 | 64323-10010 · 64324-10010 |
| 64373A | Glove box decorative panel stopper | 64373-12040 |
| 64387 | Glove box decorative panel hanger | 64381-10010 |
| 64395 | Glove box trim panel hinge pin | 64395-16010 |
| 64741A | Decoration protection piece on the right side of the base plate | 64741-12010 · 64741-12020 |
| 64742A | Decoration protection piece on the left side of the floor | 64742-12010 · 64742-12020 |
| 64770D | Spare tire cover assembly | 64770-12020 · 64770-12030 · 64770-12090 |
| 64981 | Washer water tank cover stopper | 64981-16021 |
