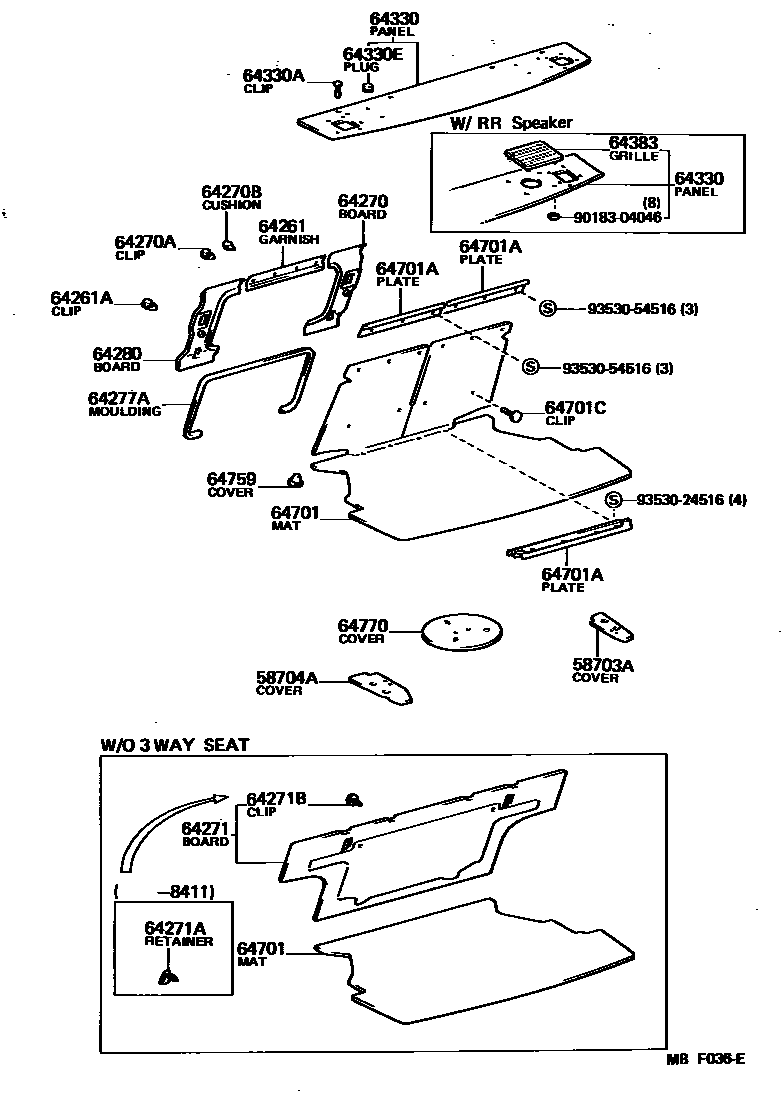

Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403
Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58703A | Trunk door right side decorative cover sub-assembly | 58703-12010 |
| 58704A | Luggage door left decorative cover sub-assembly | 58704-12010 · 58704-12011 |
| 64261 | Cabin partition decoration parts | 64261-12021 |
| 64261A | Clip (for cabin partition decoration) | 90467-06046 |
| 64270 | Right compartment partition assembly | 64271-12091 |
| 64270A | Clip (for fixing the compartment partition) | 90467-06046 |
| 64270B | Cushion pad (for cabin partition) | 90541-09010 |
| 64271 | No. 1 compartment partition | 64270-12030 |
| 64271A | Car partition fixings | 62598-14020 |
| 64277A | Car partition decorative strip | 64277-12021 |
| 64280 | Left compartment partition assembly | 64272-12031 |
| 64701 | Luggage pad assembly | 64701-12060 |
| 64701A | Suitcase fixing plate | 58573-12040 |
| 64770 | Spare tire cover assembly | 64770-12020 · 64770-12030 · 64770-12090 |
