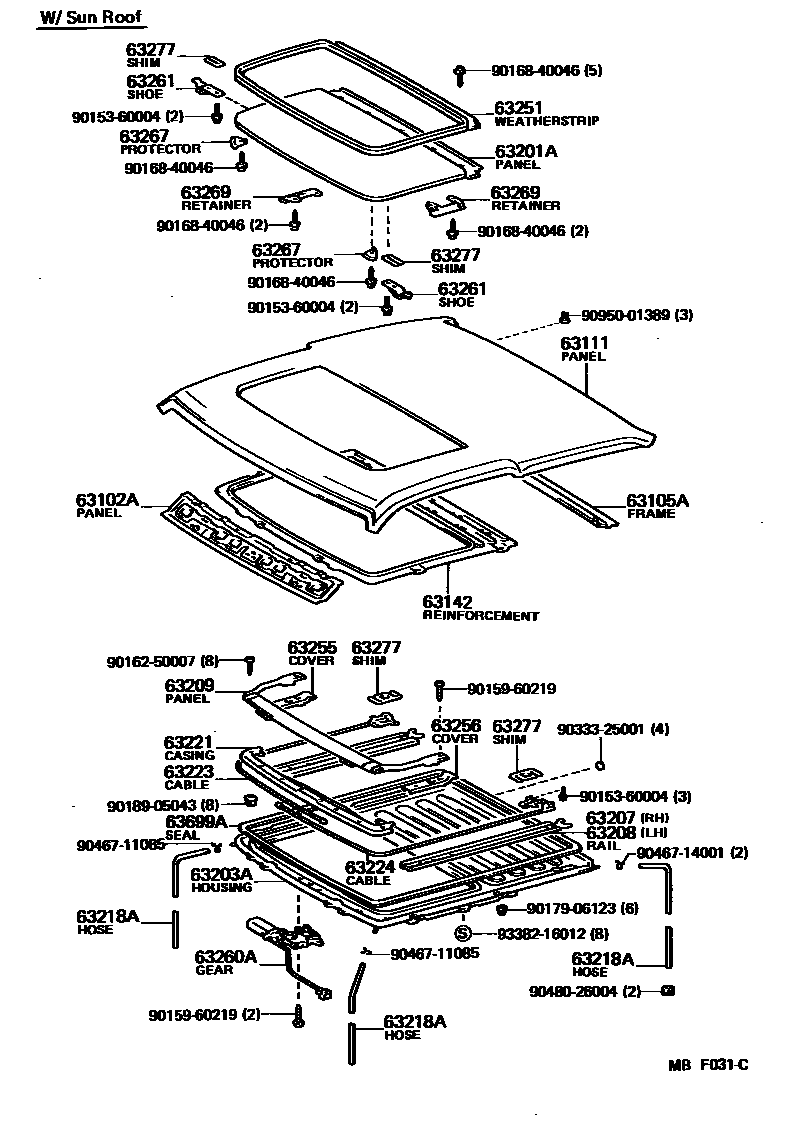

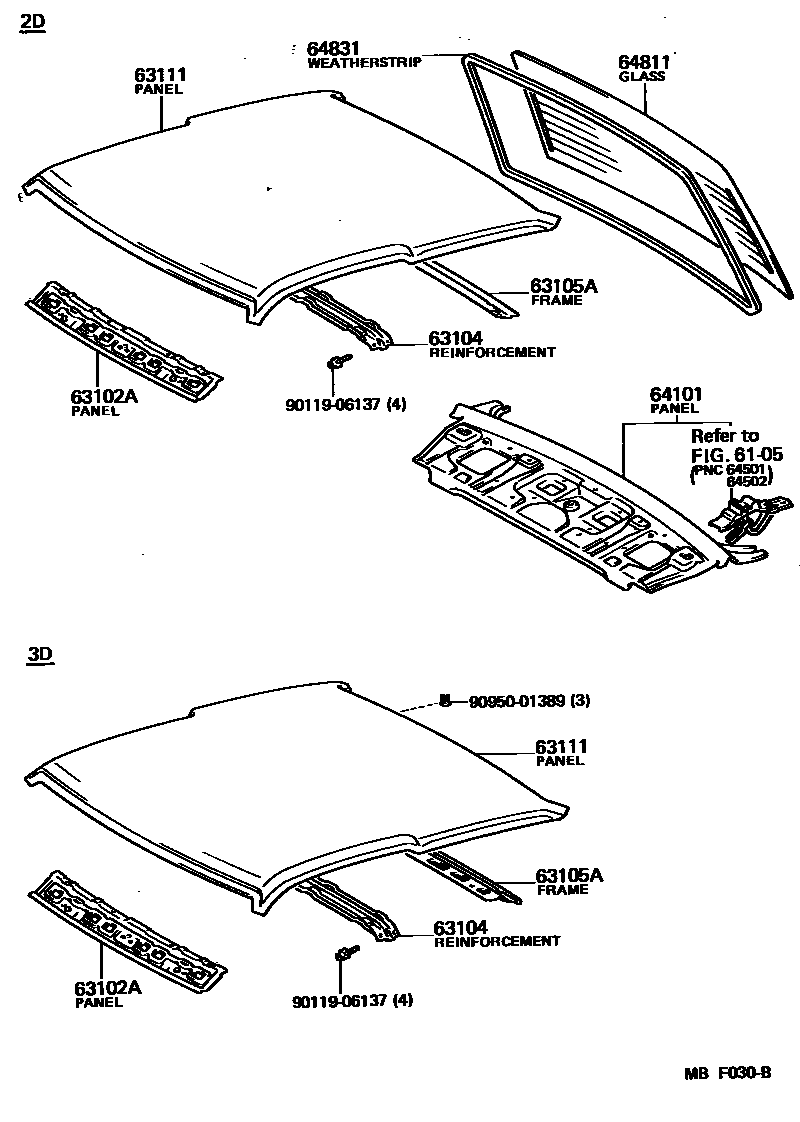

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-12010 |
| 63104 | Center roof panel reinforcement sub-assembly | 63141-12090 |
| 63105A | Back door opening frame sub-assembly | 63105-12090 · 63105-12100 · 63105-12160 · 63105-12170 · 63133-12130 |
| 63111 | roof panel | 63111-12190 · 63111-12200 · 63111-12210 · 63111-12220 |
| 63142 | No. 2 roof panel reinforcement | 63142-12010 |
| 63201A | Sliding sunroof or removable sunroof panel sub-assembly | 63201-12090 |
| 63203A | Sliding sunroof or removable sunroof frame sub-assembly | 63203-12050 · 63203-12090 · 63203-12091 · 63203-12101 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-12020 · 63207-12040 · 63207-12041 · 63207-12042 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-12020 · 63208-12040 · 63208-12041 · 63208-12042 |
| 63209 | Roof deflector sub-assembly | 63209-12020 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-12020 · 63249-12030 · 63249-12040 |
| 63221 | Sliding sunroof cable duct | 63221-12020 · 63221-12040 |
| 63223 | Right sliding sunroof transmission cable | 63223-12020 |
| 63224 | Left sliding sunroof transmission cable | 63224-12010 |
| 63251 | Sliding skylight panels or removable skylight seals | 63251-12030 |
| 63255 | Right sliding sunroof guide cover | 63255-12020 · 63255-12040 |
| 63256 | Left sliding sunroof guide cover | 63255-12020 · 63255-12040 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12050 · 63260-20010 |
| 63261 | Front sliding sunroof slider | 63261-12020 · 63261-20010 · 63262-12020 |
| 63267 | Sliding sunroof sealing strip protection | 63267-14010 · 63267-20010 · 63268-14020 · 63268-20010 |
| 63269 | Sliding sunroof sealing strip fixings | 63269-20010 · 63279-20010 |
| 63277 | Sliding skylight stringer gasket | 63277-14020 · 63277-20010 |
| 63699A | Sliding sunroof guide seals | 63699-12020 |
| 64101 | Upper back panel sub-assembly | 64101-12230 · 64101-12240 |
| 64811 | back window glass | 64801-12310 · 64801-12330 |
| 64831 | Back window glass seal strip | 64812-12270 |
