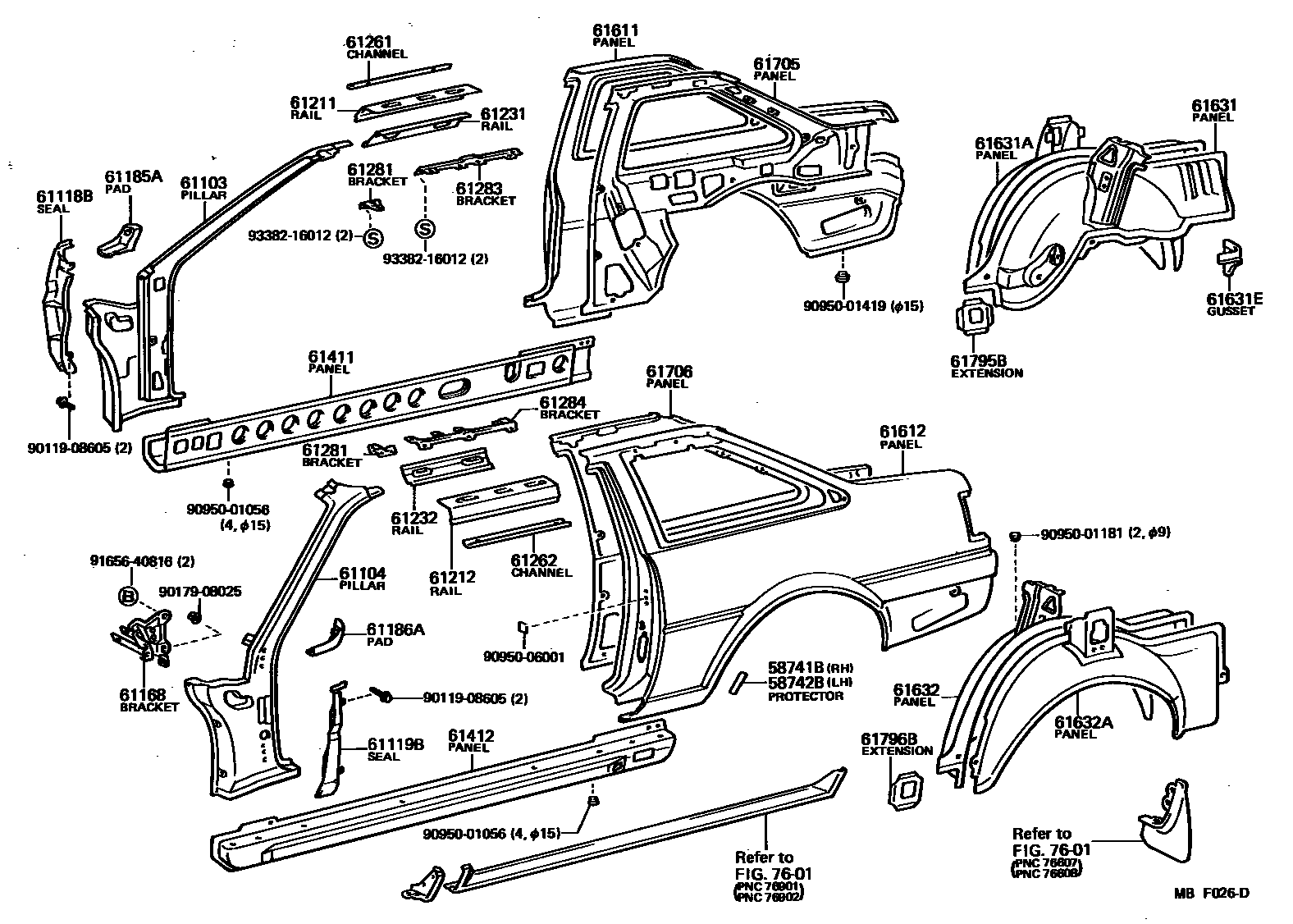

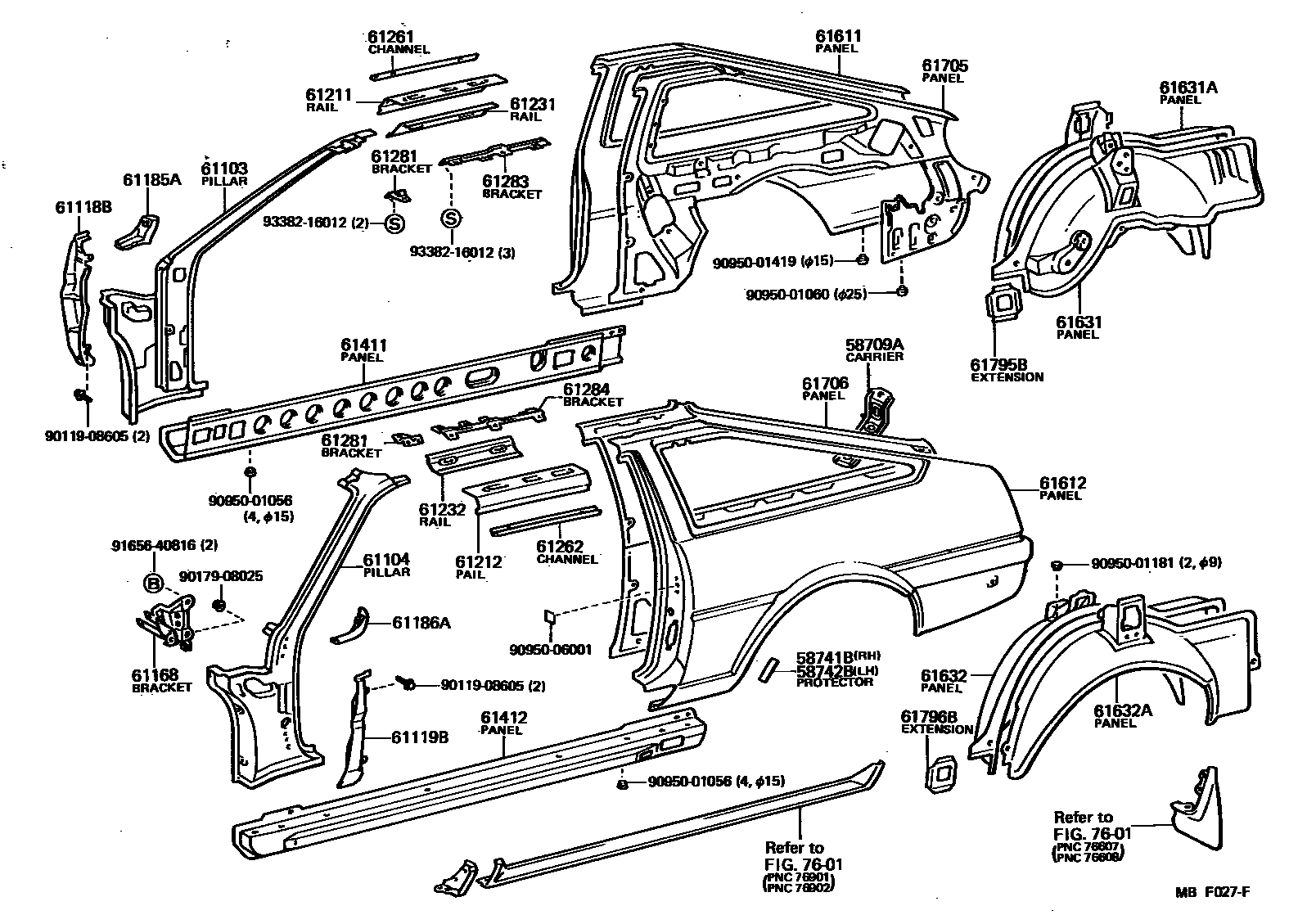

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58709A | Jack bracket sub-assembly | 58709-12050 · 58709-12051 |
| 58741B | Right side enclosure protection panel | 58741-12010 |
| 58742B | Left side enclosure protection panel | 58742-12010 |
| 61103 | Right body front pillar sub-assembly | 61021-12320 · 61021-12561 · 61021-12570 |
| 61104 | Left body front pillar sub-assembly | 61022-12380 · 61022-12621 · 61022-12630 |
| 61118B | Seal from body front pillar to right front fender | 61118-12040 |
| 61119B | Seal from body front pillar to left front fender | 61119-12040 |
| 61168 | Dashboard to left front wall side bracket | 61036-12020 |
| 61185A | Right body front pillar outer extension pad | 61185-12010 |
| 61186A | Exterior extension pad of left body front pillar | 61186-12010 |
| 61211 | Roof right outer longitudinal beam | 61211-12180 |
| 61212 | Roof left outer longitudinal beam | 61212-12180 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12320 |
| 61232 | Roof left inner longitudinal beam | 61232-12220 |
| 61261 | Drainage channel on the right side of the roof | 61265-12050 |
| 61262 | Drainage channel on the left side of the roof | 61266-12050 |
| 61281 | Sliding skylight frame No. 1 mounting bracket | 61281-12010 |
| 61283 | Sliding sunroof frame No. 3 right mounting bracket | 61283-12010 |
| 61284 | Sliding sunroof frame No. 3 left mounting bracket | 61284-12010 |
| 61411 | Right door outer sill panel | 61401-12180 · 61401-12241 · 61401-12250 · 61401-12251 |
| 61412 | Left door outer sill panel | 61402-12180 · 61402-12241 · 61402-12250 · 61402-12251 |
| 61611 | Right side hoarding | 61601-1A720 · 61601-1A730 · 61601-1E280 · 61601-1E340 |
| 61612 | left side panel | 61602-1A310 · 61602-1A350 · 61602-1E040 · 61602-1E070 |
| 61631 | Right wheel cover panel | 61603-12905 · 61603-12907 · 61603-12908 |
| 61631A | Right wheel cover outer panel | 61631-12907 · 61631-12908 · 61631-12909 · 61631-12910 |
| 61631E | Right rear side wheel housing corner panel | 61645-12080 |
| 61632 | Left side wheel cover panel | 61604-12905 · 61604-12907 · 61604-12908 |
| 61632A | Left side wheel cover outer panel | 61632-12901 · 61632-12902 · 61632-12903 · 61632-12904 |
| 61705 | Roof right inner panel sub-assembly | 61705-12620 · 61705-12640 |
| 61706 | Roof left inner panel sub-assembly | 61706-12690 · 61706-12700 · 61706-12948 |
| 61795B | Right wheel housing extension | 61795-12020 |
| 61796B | Left side wheel housing extension | 61796-12020 |
