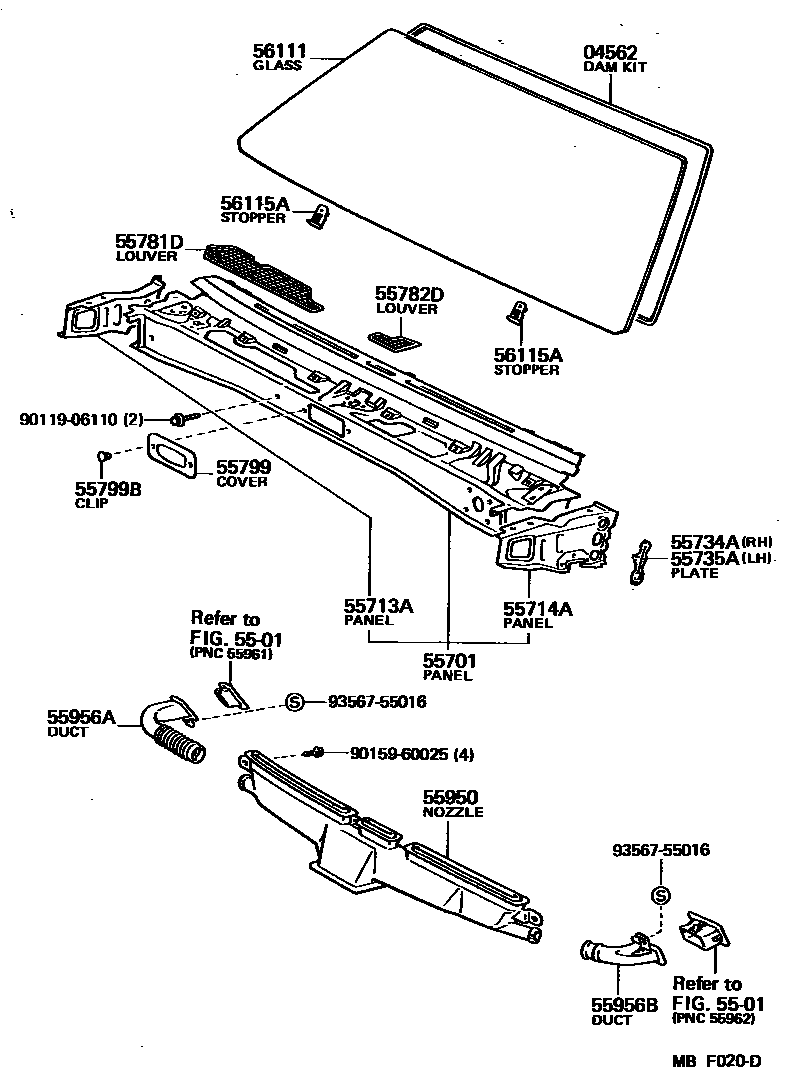

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-30030 · 04562-30040 |
| 55701 | Front apron sub-assembly | 55700-12230 · 55700-12410 |
| 55713A | Right front wall upper side panel | 55713-12050 |
| 55714A | Left front wall upper side panel | 55714-12050 |
| 55734A | Right waterproof cover | 55734-12060 |
| 55735A | Left waterproof cover panel | 55735-12060 |
| 55781D | Ventilation grille on right front apron | 55781-12120 |
| 55782D | Ventilation grille on left front apron | 55784-12010 |
| 55799 | wiper motor cover | 55793-24010 |
| 55799B | Wiper motor cover outer clip | 90467-08023 |
| 55950 | Defroster nozzle assembly | 55950-12080 |
| 55956A | Side defroster No. 1 nozzle air duct | 55970-12050 |
| 55956B | Side defroster No. 2 nozzle air duct | 55980-12040 |
| 56111 | windshield | 56111-12480 · 56111-12510 · 56111-12511 · 56111-12760 · 56111-12790 |
| 56115A | Windshield block No. 1 | 56115-12010 |
