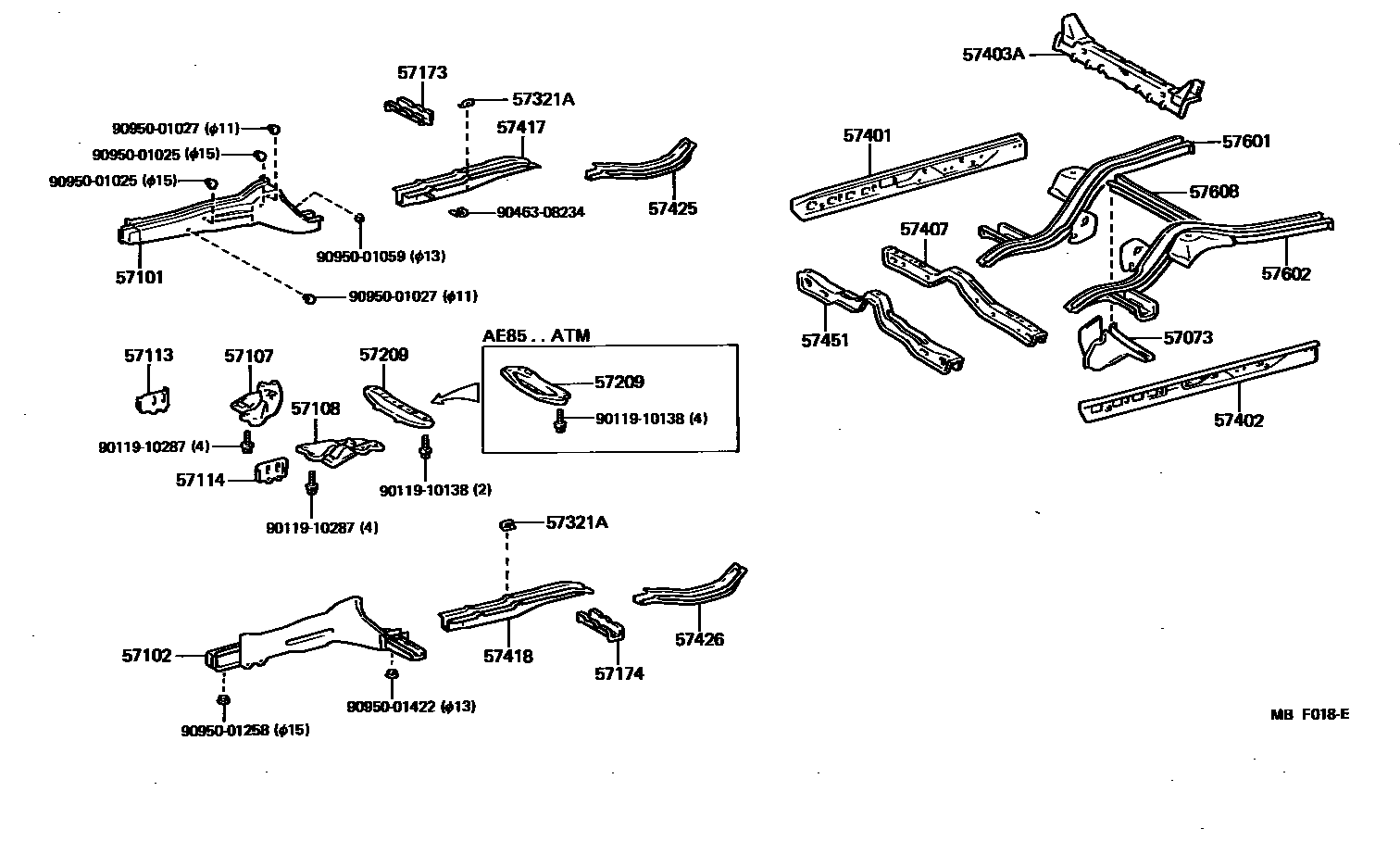

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57073 | Transverse thrust rod bracket sub-assembly | 57073-12030 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-12180 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-12180 |
| 57107 | Right support rod bracket sub-assembly | 57107-12040 · 57107-12050 |
| 57108 | Left support rod bracket sub-assembly | 57108-12040 · 57108-12050 · 57108-12070 |
| 57113 | Right front longitudinal beam extension | 57113-12060 |
| 57114 | Left front longitudinal beam extension | 57114-12060 |
| 57173 | No. 2 right front torsion box section piece | 57173-12010 |
| 57174 | No. 2 left front torsion box section piece | 57174-12010 |
| 57209 | Engine rear support beam sub-assembly | 57209-12290 · 57209-12300 · 57209-12310 · 57209-12340 |
| 57321A | Three-way catalytic converter installation fixings | 57321-12040 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-12160 · 57401-12170 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-12160 · 57402-12170 |
| 57403A | Center floor No. 3 beam sub-assembly | 57403-12030 · 57403-12040 |
| 57407 | Center floor No. 1 beam sub-assembly | 57407-12010 |
| 57417 | Front floor lower right reinforcement | 57417-12040 · 57417-12050 |
| 57418 | Front floor lower left reinforcement | 57417-12040 · 57417-12050 |
| 57425 | Front floor No. 2 right reinforcement | 57425-12020 · 57425-12030 |
| 57426 | Front floor No. 2 left reinforcement | 57426-12020 · 57426-12030 |
| 57451 | front floor cross member | 57408-12030 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12910 · 57601-12912 · 57601-12913 · 57601-12914 · 57601-12915 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12910 · 57602-12912 · 57602-12913 · 57602-12914 · 57602-12915 |
| 57608 | Rear floor No. 2 cross member sub-assembly | 57405-12040 |
