Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

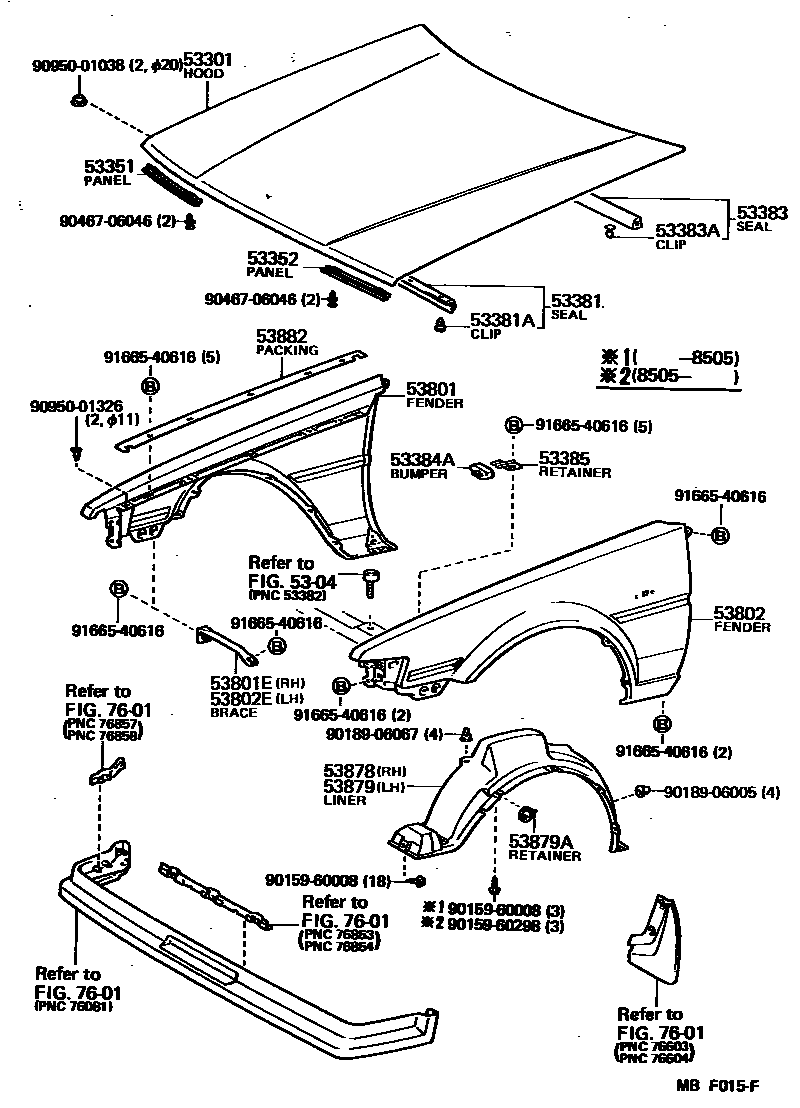

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-12340 · 53301-12342 · 53301-12440 · 53301-12442 |
| 53351 | Engine cover right side panel | 53351-12020 |
| 53352 | Engine cover left panel | 53352-12020 |
| 53381 | Engine cover to radiator bracket seal | 53381-12120 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53383 | Engine cover to cowl upper cover seal | 53383-12050 |
| 53383A | Clamp (for engine cover to cowl upper cover seal) | 90467-08030 |
| 53384A | fender to engine cover buffer block | 53384-14010 |
| 53385 | Engine cover buffer block fixing | 53385-14010 · 53386-14010 |
| 53801 | Right front fender sub-assembly | 53801-1A580 · 53801-1A581 · 53801-1A591 · 53801-1A600 · 53801-1A601 · 53801-1A620 · 53801-1A621 · 53801-1A850 · 53801-1A851 · 53801-1A861 · 53801-1E290 · 53801-1E300 · 53801-1E340 · 53801-1E350 |
| 53801E | Right front fender to fender stay | 53835-12020 |
| 53802 | Left front fender sub-assembly | 53802-1A550 · 53802-1A551 · 53802-1A600 · 53802-1A601 · 53802-1A661 · 53802-1E220 · 53802-1E240 |
| 53802E | Left front fender to fender stay | 53835-12020 |
| 53878 | Right front fender lining | 53875-12060 · 53875-12061 |
| 53879 | Left front fender lining | 53876-12060 · 53876-12061 |
| 53879A | Front fender lining fixing parts | 53879-14010 |
| 53882 | Front fender main seal | 53882-12060 |
