Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 3 images and 10 PNC and OE references.

Toyota COROLLA radiator grille EPC diagram — MBF013
radiator grille — MBF013 (198305 – 198505)

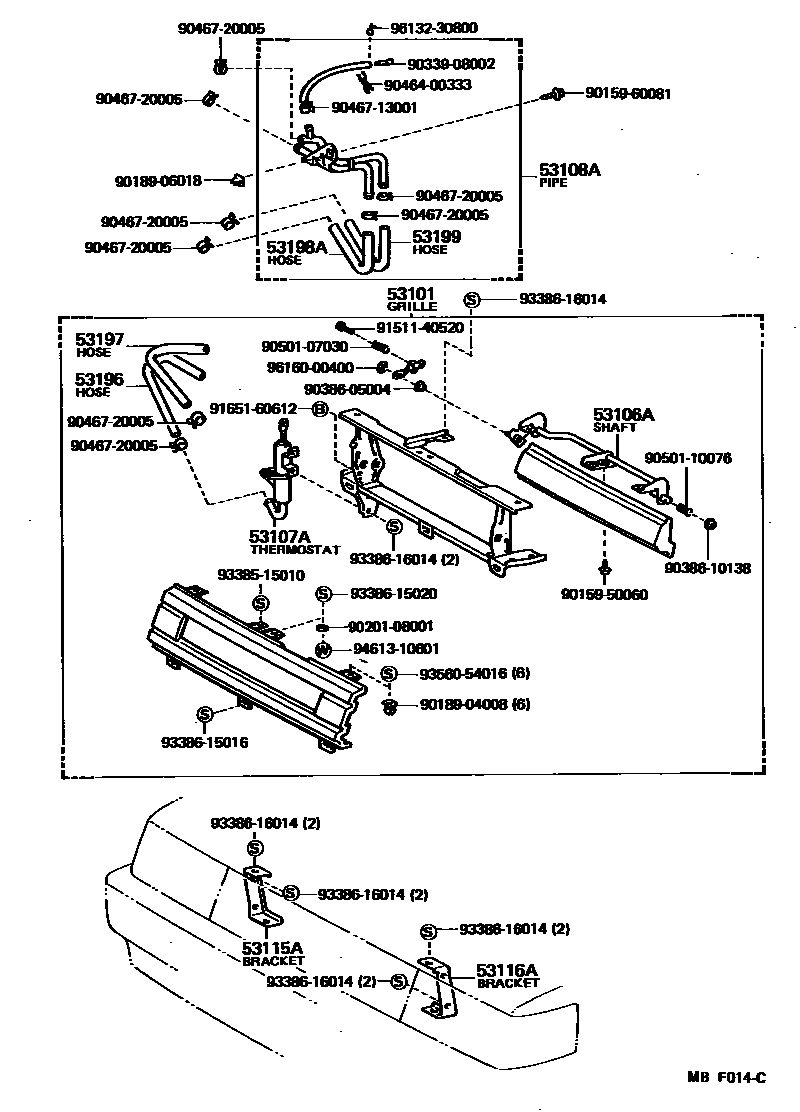

Toyota COROLLA radiator grille EPC diagram — MBF014C
radiator grille — MBF014C (198305 – 198505)

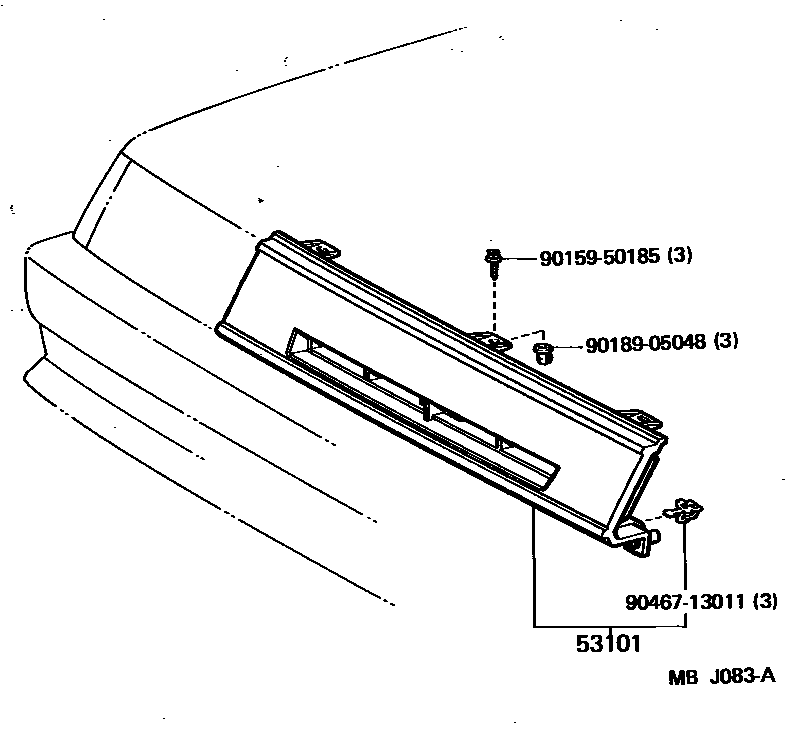

Toyota COROLLA radiator grille EPC diagram — MBJ083A
radiator grille — MBJ083A (198505 – 999999)

PNC and OE references

PNCPart nameOE numbers
53101Radiator grille sub-assembly53100-12220 · 53100-12221 · 53100-12270 · 53100-12271 · 53100-12300
53106ARadiator grille shaft sub-assembly53106-12010
53107ARadiator grille thermostat sub-assembly53107-12020 · 53107-12021
53108ARadiator grille tube sub-assembly53108-12030
53115ARadiator grille right bracket53115-12070
53116ARadiator grille left bracket53116-12070
53196Radiator grille hose No. 153196-12010
53197Radiator grille hose No. 253197-12010
53198ARadiator grille No. 3 hose53198-12020
53199Radiator grille No. 4 hose53199-12020
