Toyota COROLLA 后保险杠及附件 — Figure 5202

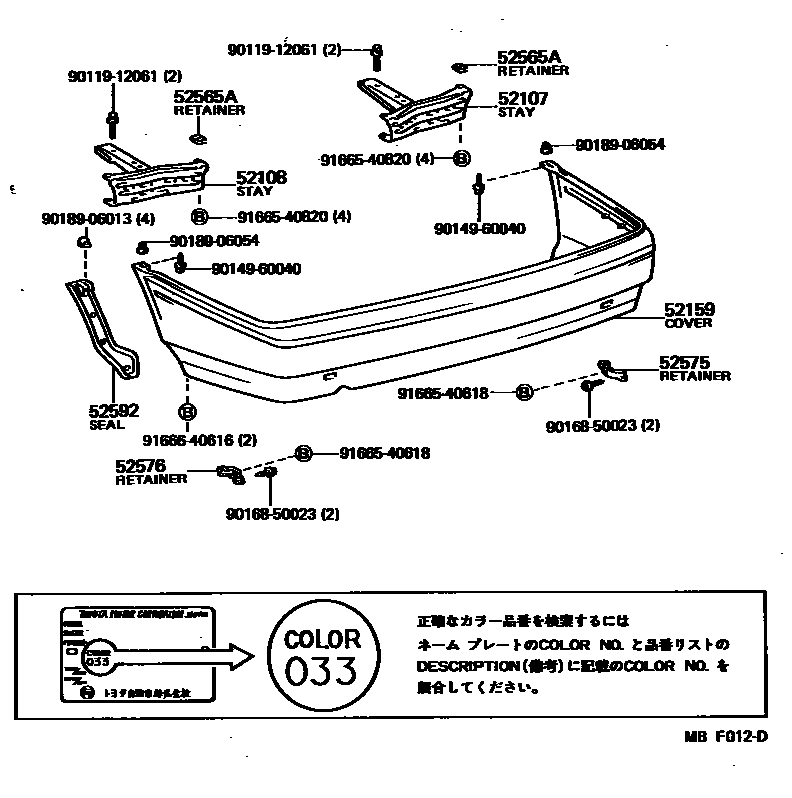

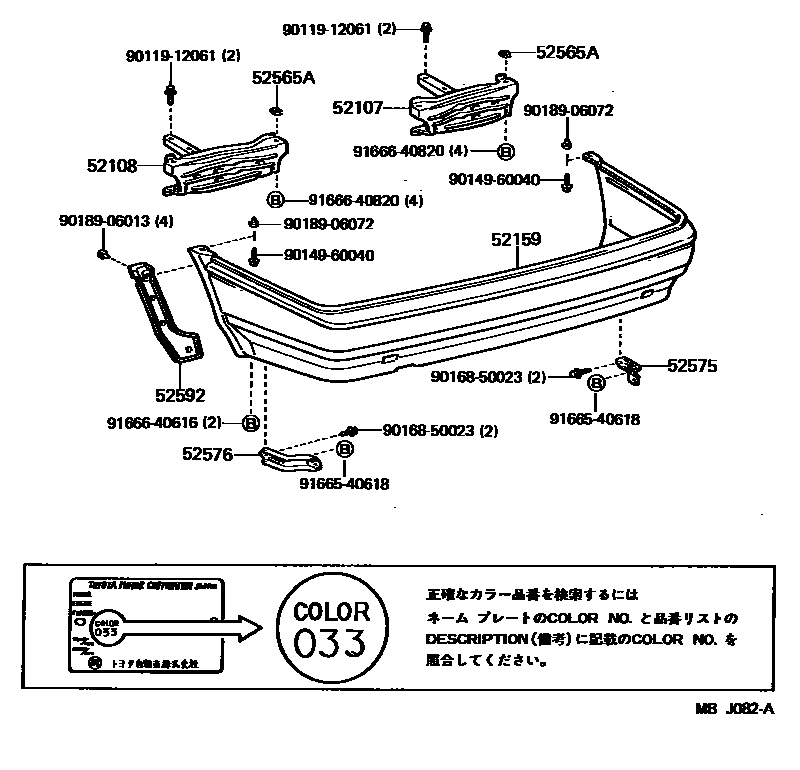

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52107 | Rear bumper right side stay sub-assembly | 52015-12110 · 52015-12111 |
| 52108 | Rear bumper left side stay sub-assembly | 52016-12110 · 52016-12111 |
| 52159 | rear bumper cover | 52159-12060 · 52159-12061 · 52159-12062 · 52159-12092 |
| 52565A | Rear bumper lower fixing bracket | 52565-12040 |
| 52575 | Rear bumper right side fixing bracket | 52575-12010 · 52575-12011 |
| 52576 | Rear bumper left side fixing bracket | 52576-12010 · 52576-12011 |
| 52592 | Rear bumper left seal | 52591-12010 · 52592-12010 |
