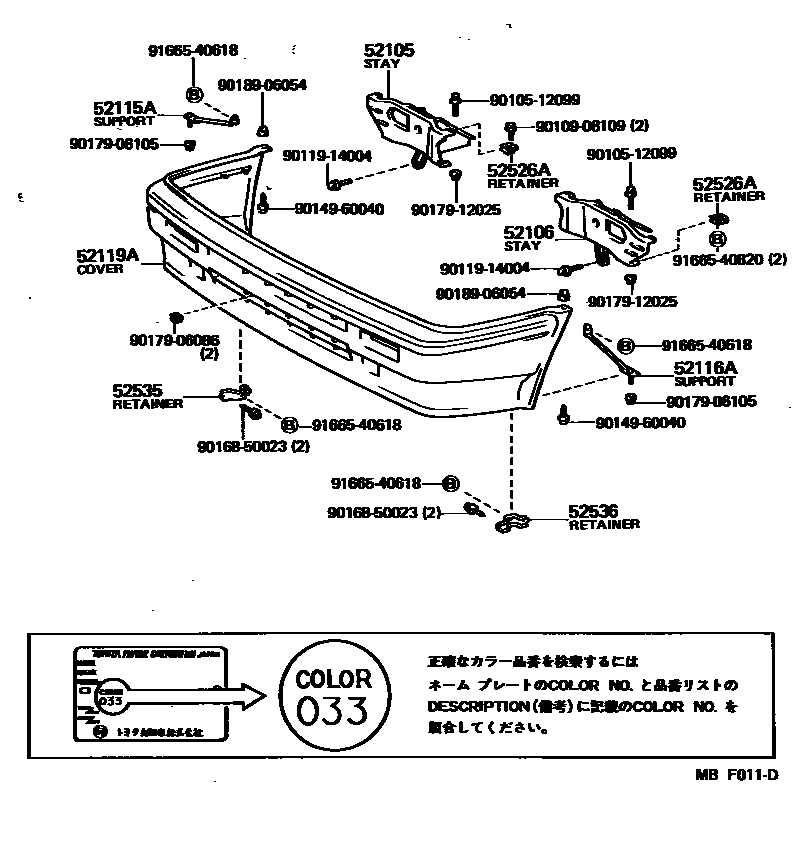

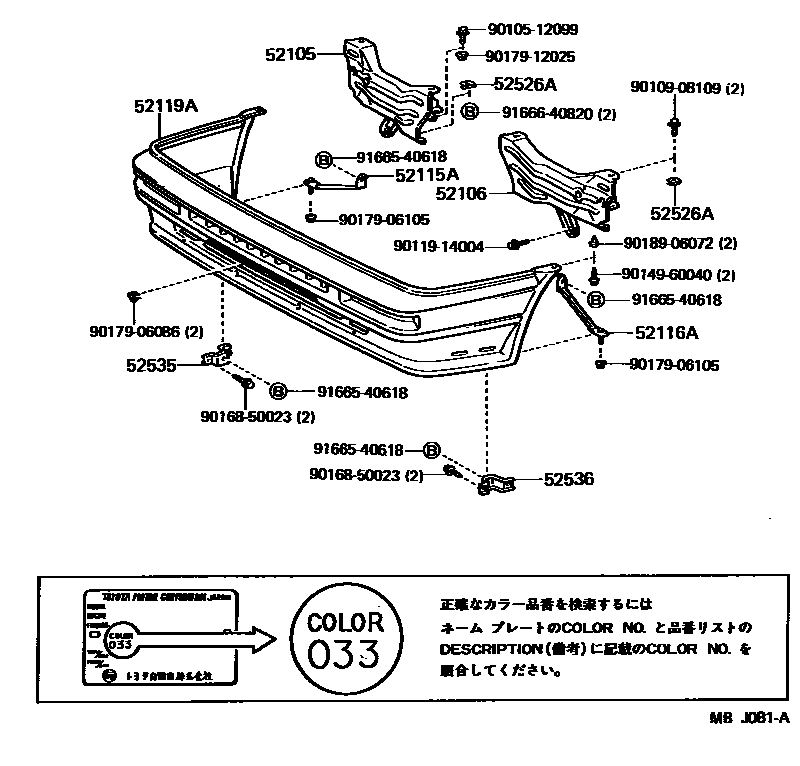

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52105 | Front bumper right side stay sub-assembly | 52011-12220 · 52011-12231 |
| 52106 | Front bumper left stay sub-assembly | 52012-12220 · 52012-12231 |
| 52115A | Front bumper right side bracket | 52115-12160 · 52115-12240 |
| 52116A | Front bumper left bracket | 52115-12160 · 52115-12240 |
| 52119A | front bumper cover | 52119-12090 · 52119-12091 · 52119-12142 · 52119-12152 |
| 52526A | Front bumper No. 1 lower fixing bracket | 52565-12040 |
| 52535 | Front bumper right side fixing bracket | 52535-12010 · 52535-12011 |
| 52536 | Front bumper left fixed bracket | 52536-12010 · 52536-12011 |
