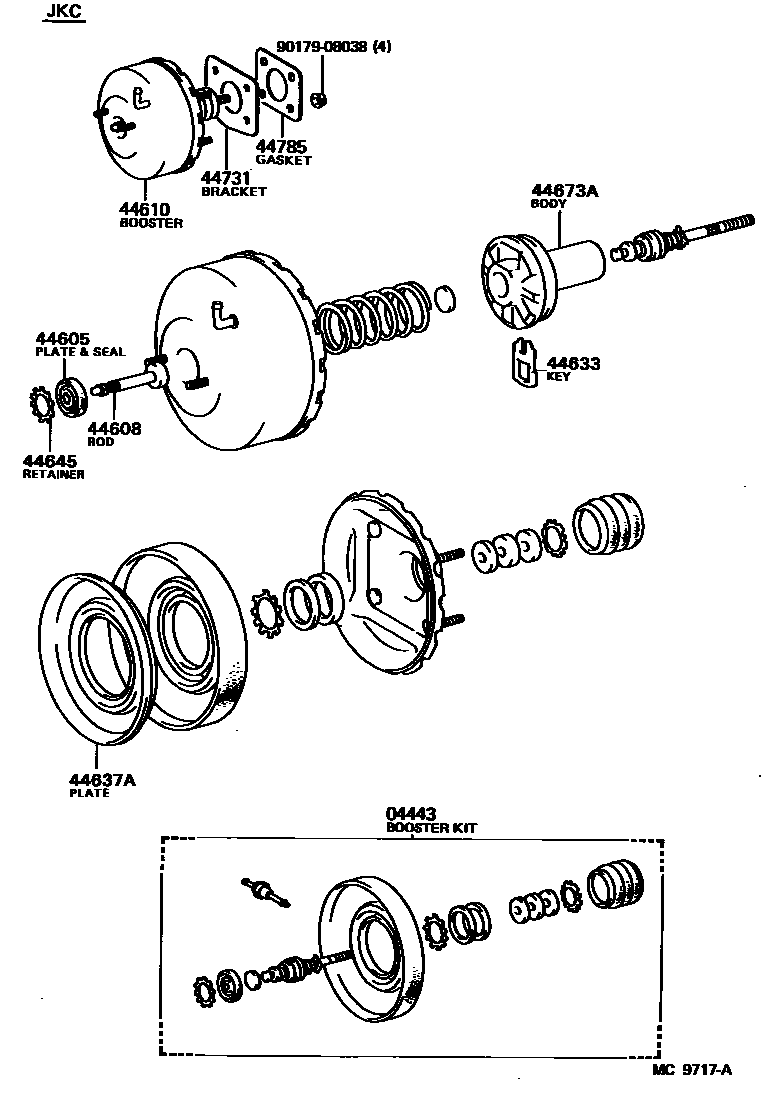

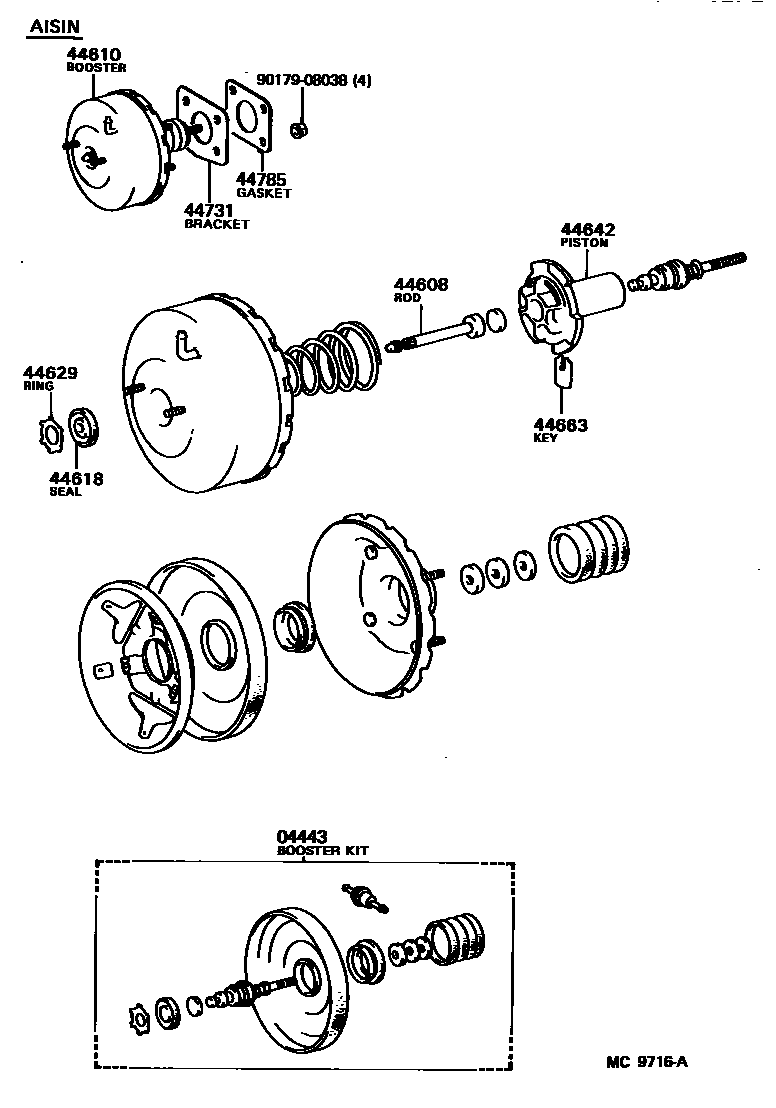

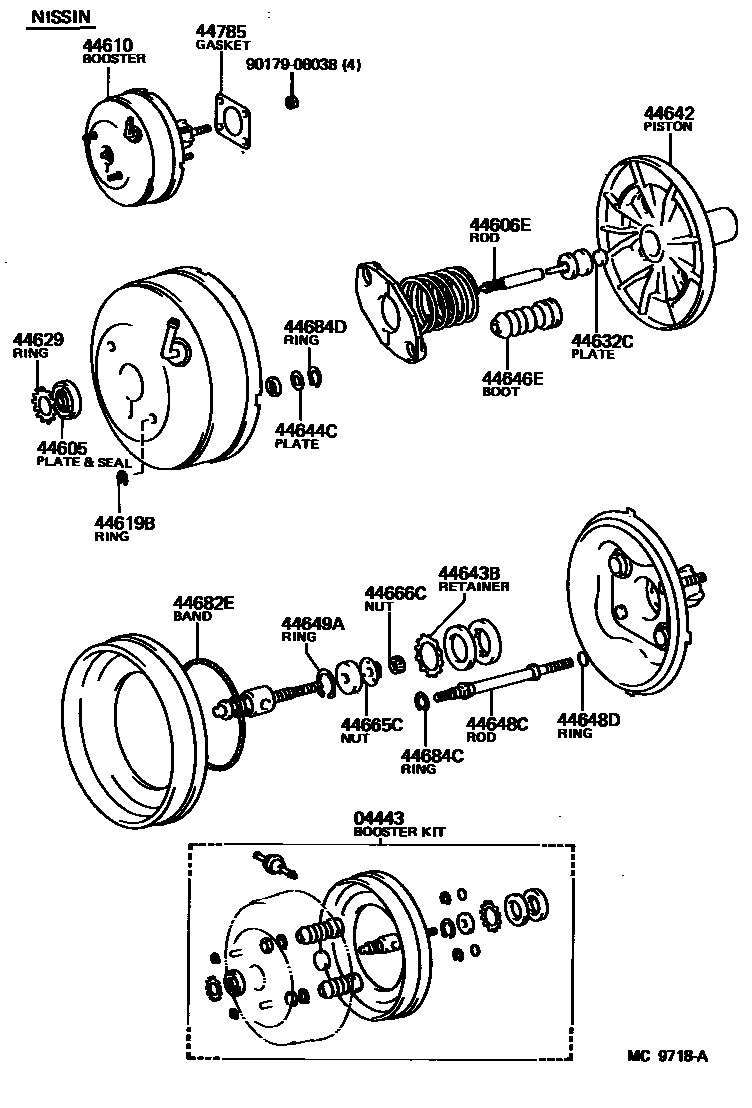

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04443 | brake booster components | 04443-12250 · 04443-12260 · 04443-12270 · 04443-12280 |
| 44605 | Booster plate and sealing ring sub-assembly | 44605-12410 · 44605-22021 |
| 44606E | Brake booster piston rod sub-assembly | 44606-12410 |
| 44608 | Booster push rod sub-assembly | 44606-12520 · 44608-32020 |
| 44610 | brake booster assembly | 44610-12390 · 44610-12400 · 44610-12410 · 44610-12420 |
| 44618 | Booster body sealing ring | 44621-28120 |
| 44619B | Booster body tie rod ring | 44619-12410 |
| 44629 | annular inner ring | 44628-12410 · 44628-28120 |
| 44632C | reaction disk | 44632-12410 |
| 44633 | booster valve plunger key | 44633-28130 |
| 44637A | booster diaphragm disc | 44637-16060 |
| 44642 | brake booster piston | 44642-12410 · 44642-16050 · 44642-27150 |
| 44643B | Booster sealing ring | 44643-12410 |
| 44644C | Booster body tie rod sealing plate | 44644-12410 |
| 44645 | Booster push rod sealing ring | 44645-22020 |
| 44646E | Booster body tie rod dust cover | 44646-12410 |
| 44648C | Booster body tie rod | 44648-12410 |
| 44648D | O-ring (for booster tie rod) | 96712-24015 |
| 44649A | Booster piston retaining ring | 44649-12410 |
| 44663 | valve stop key | 44635-28120 |
| 44665C | Booster lever adjustment nut | 44665-12410 |
| 44666C | Booster lever lock nut | 44666-12410 |
| 44673A | booster valve body | 44673-28180 |
| 44682E | booster diaphragm band | 44682-12410 |
| 44684C | No. 1 snap ring (for booster body tie rod) | 44684-12410 |
| 44684D | No. 2 snap ring (for booster body tie rod) | 96150-01000 |

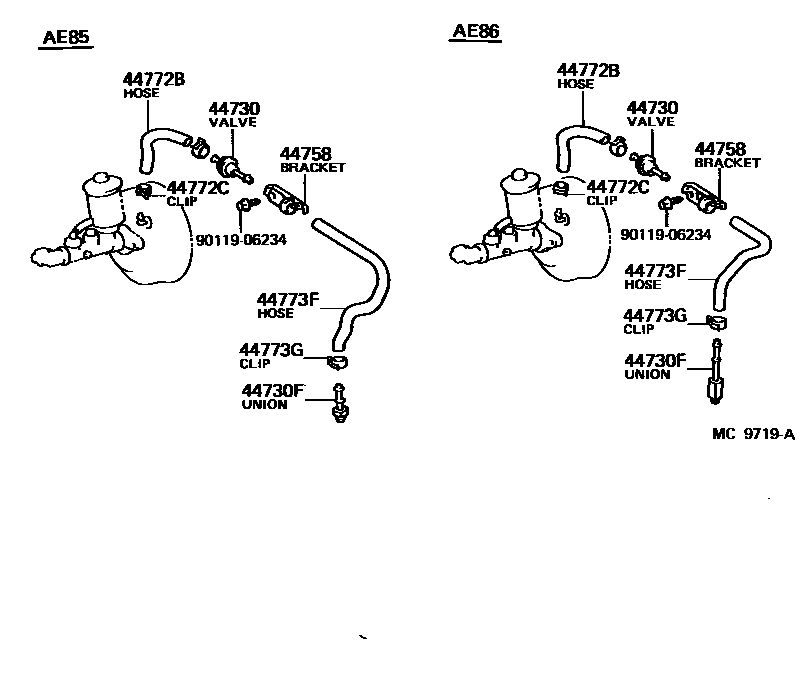

| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51020 · 90404-51028 |
| 44731 | Front brake booster bracket | 44731-14020 |
| 44758 | Vacuum check valve bracket | 44758-12190 · 44758-12191 |
| 44772B | Hoses (check valve to brake booster) | 44772-12170 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16002 |
| 44773F | Hoses (connector to check valve) | 44773-12250 · 44773-12260 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16002 |
| 44785 | brake booster pad | 44785-14010 |
