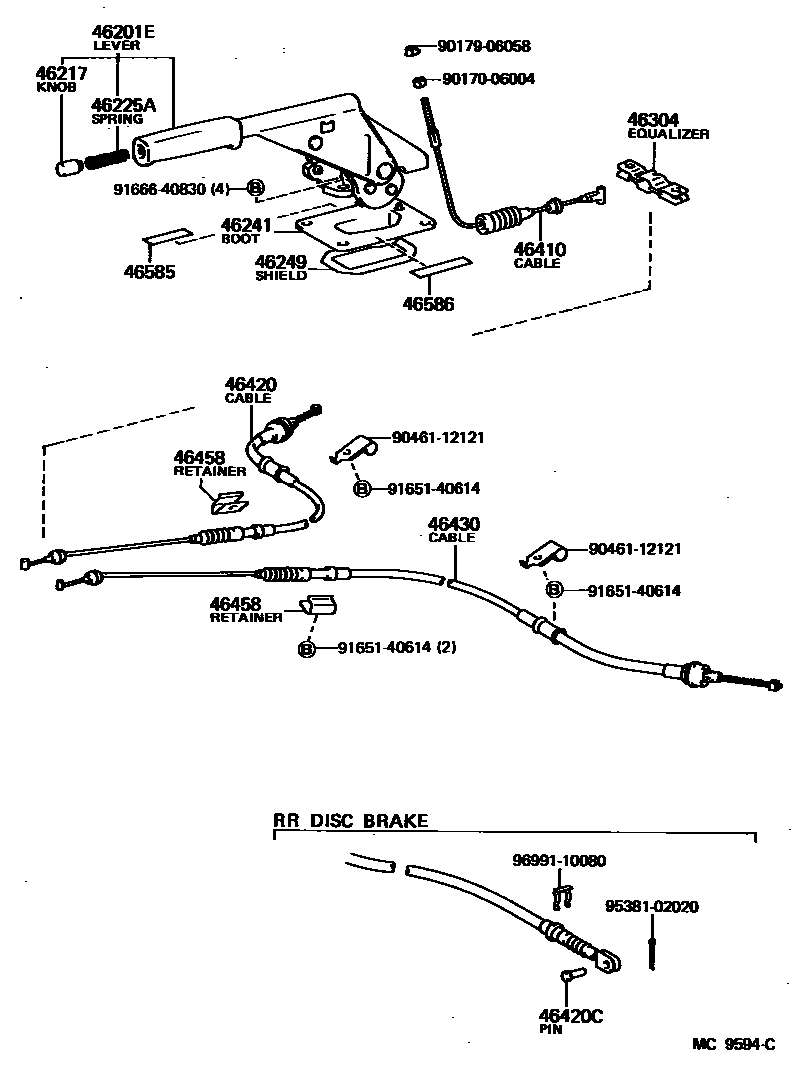

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46201E | Parking brake lever sub-assembly | 46201-12080 · 46201-12081 |
| 46225A | Compression spring (for parking brake pawl lever) | 90501-10745 |
| 46241 | Parking brake lever dust cover | 46241-12070 · 46241-24010 |
| 46249 | Parking brake hole cover | 46249-24010 |
| 46304 | Parking brake balancer sub-assembly | 46341-16020 |
| 46410 | Parking brake cable assembly No. 1 | 46410-12120 · 46410-12140 |
| 46420 | Parking brake No. 2 cable assembly | 46420-12260 · 46420-12280 · 46420-12300 |
| 46420C | Pin with hole (for parking brake cable) | 90240-08040 |
| 46430 | Parking brake No. 3 cable assembly | 46430-12160 · 46430-12180 · 46430-12200 |
| 46458 | Cable fixings | 46458-20020 |
| 46585 | Parking brake warning plate | 46585-12030 |
| 46586 | No. 2 parking brake warning plate | 46586-12030 |
