Toyota COROLLA 动力转向配管 — Figure 4503

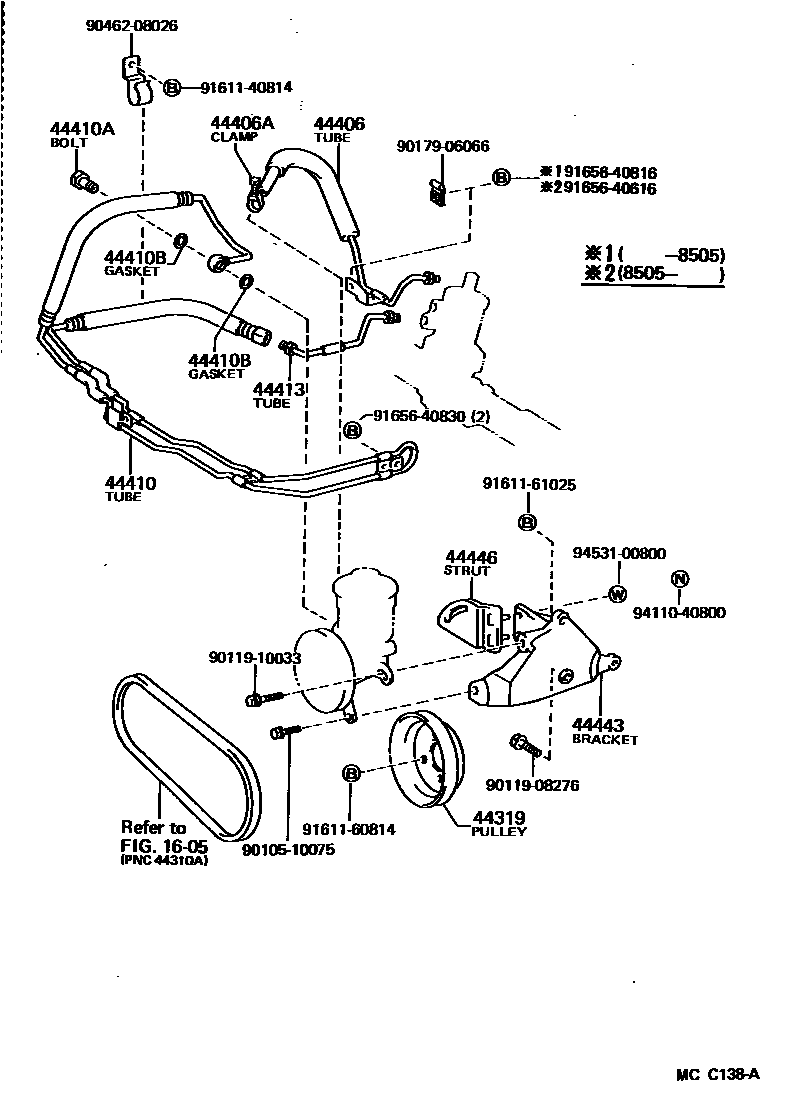

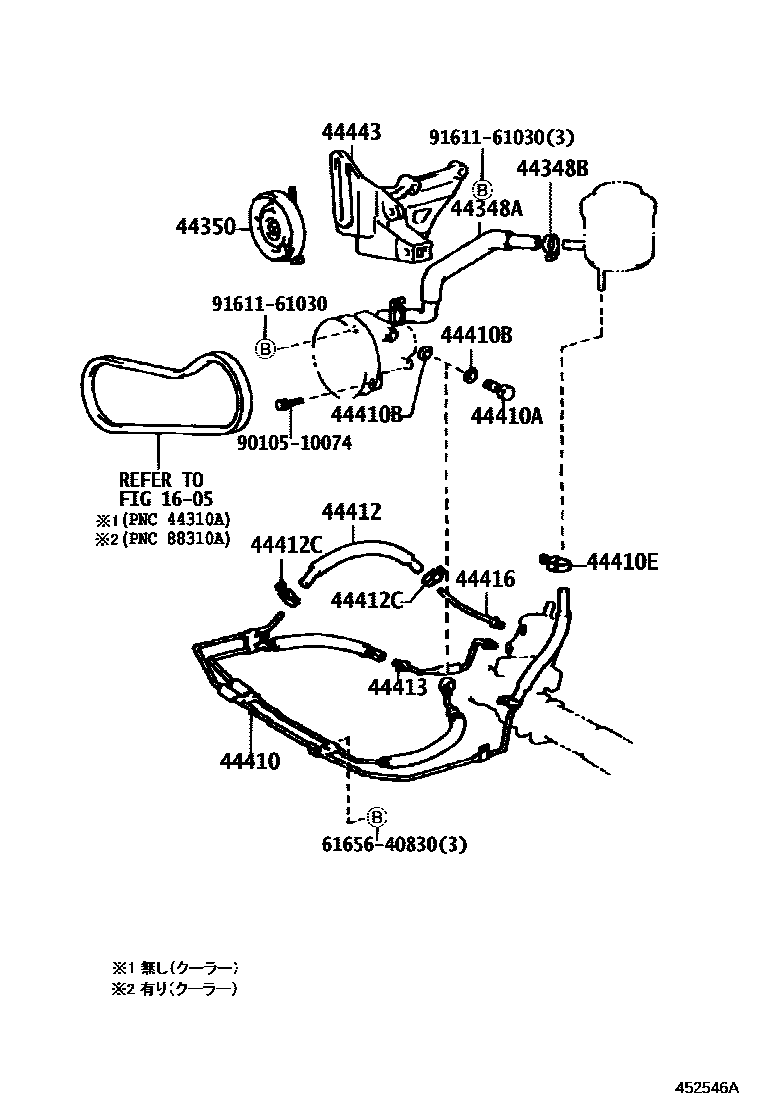

Toyota COROLLA EPC diagram 4503, 动力转向配管, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44319 | Vane pump drive pulley | 44319-12011 |
| 44348A | No. 1 hose (tank to pump) | 44348-12010 · 44348-12011 · 44348-12030 |
| 44348B | Clamp (for reservoir to pump hose) | 90460-26001 |
| 44350 | Power steering idler assembly | 44350-12030 |
| 44406 | Oil return pipe sub-assembly | 44406-12020 · 44406-12060 |
| 44406A | Clamp (for oil return pipe) | 90460-01001 |
| 44410 | Pressure supply pipe assembly | 44410-12070 · 44410-12130 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16005 · 90401-16008 |
| 44410B | Gasket (for pressure supply pipe) | 90430-16242 |
| 44410E | Clamp (for pressure supply tube) | 90460-01001 |
| 44412 | Oil return hose | 44412-12090 |
| 44412C | Clamp (for oil return hose) | 90460-01001 |
| 44413 | No. 1 pressure supply pipe | 44413-12070 · 44413-12120 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-12080 · 44416-12090 |
| 44443 | pump bracket | 44443-12030 · 44443-12040 |
| 44446 | Adjust the stand | 44446-12020 |
