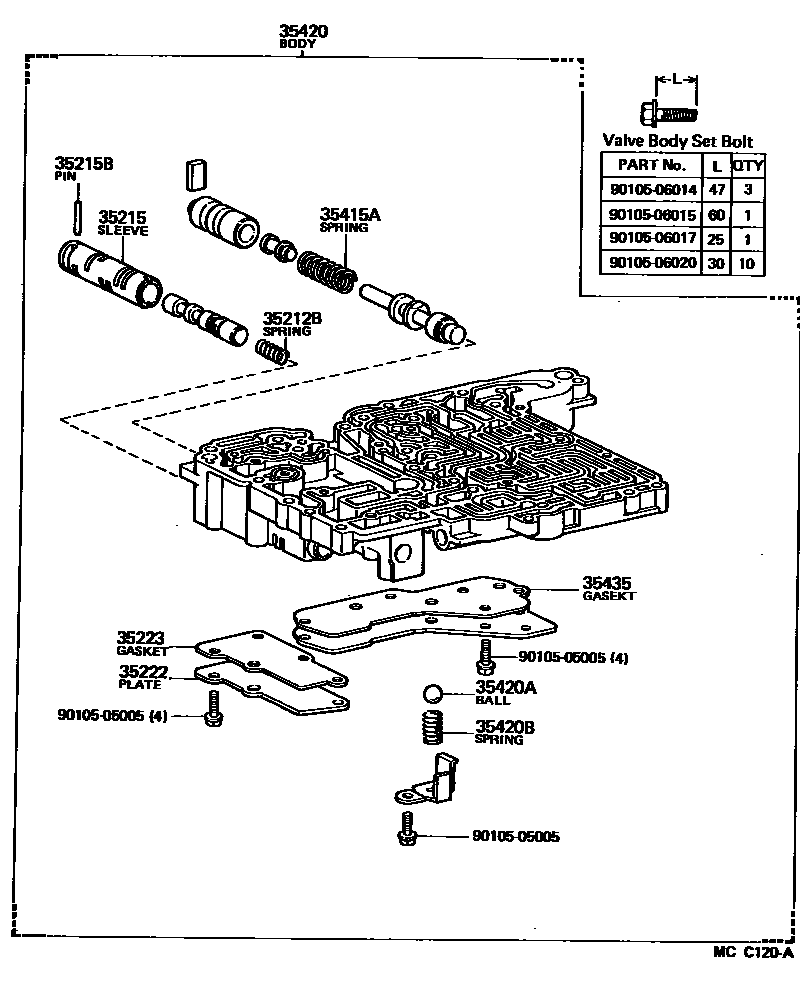

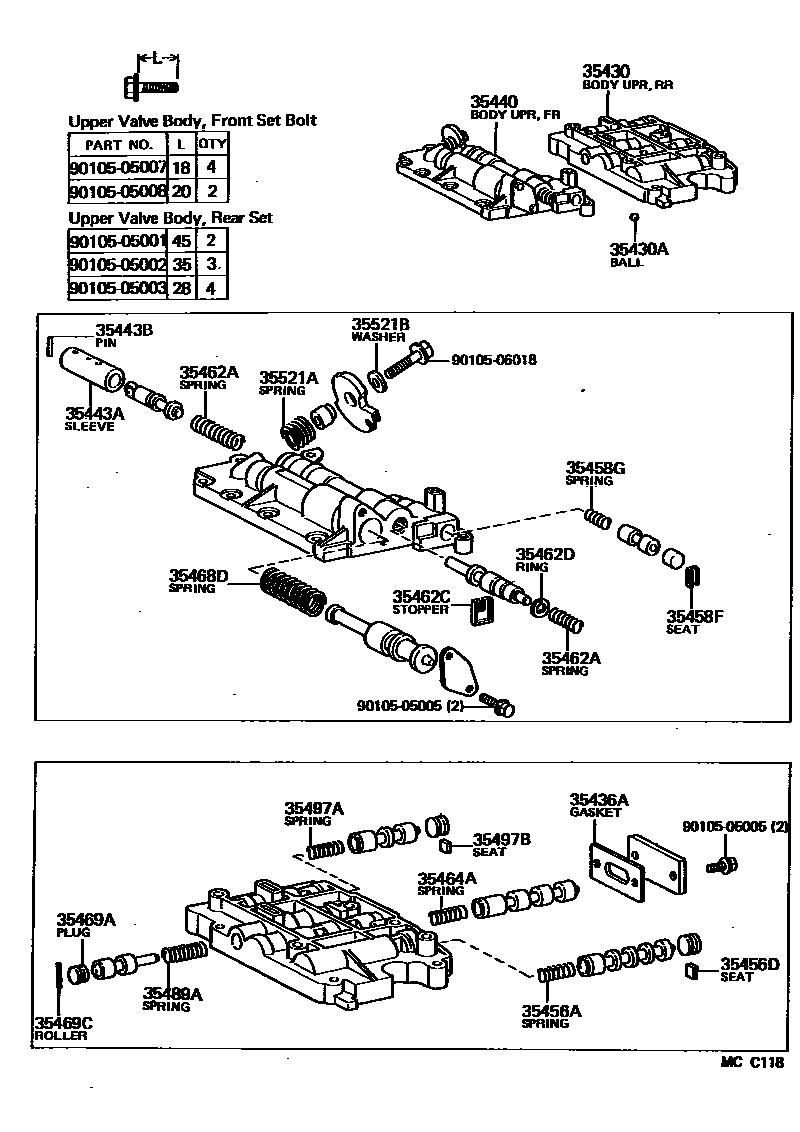

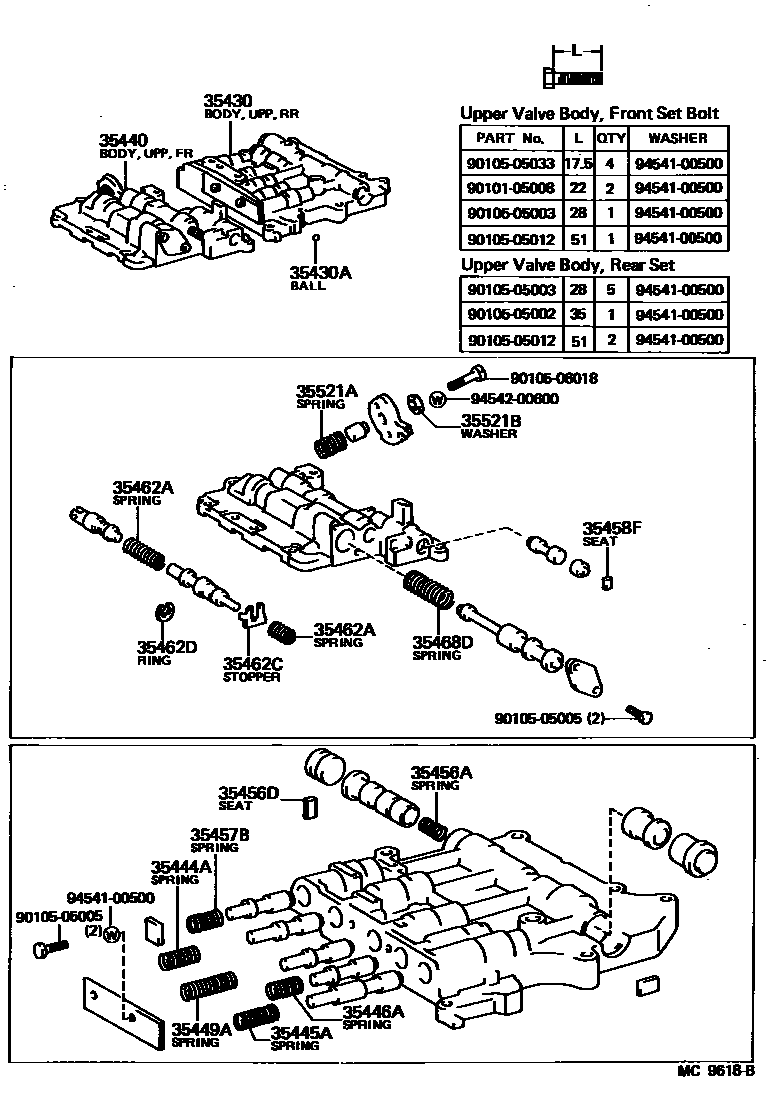

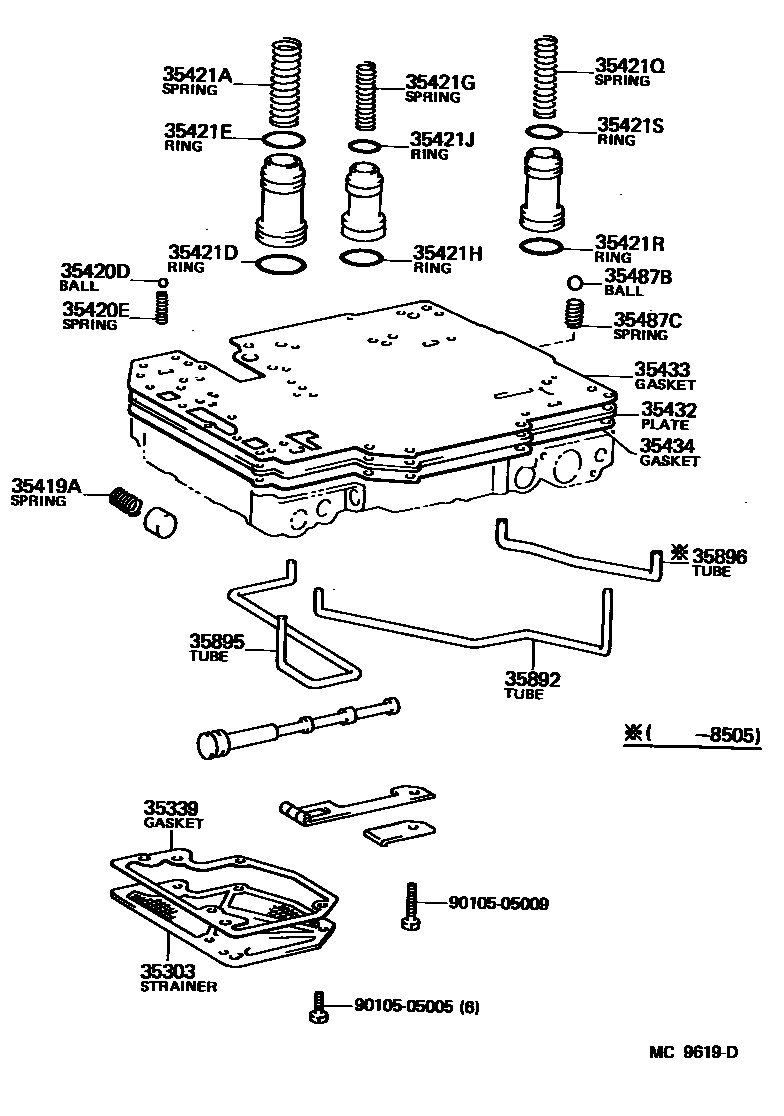

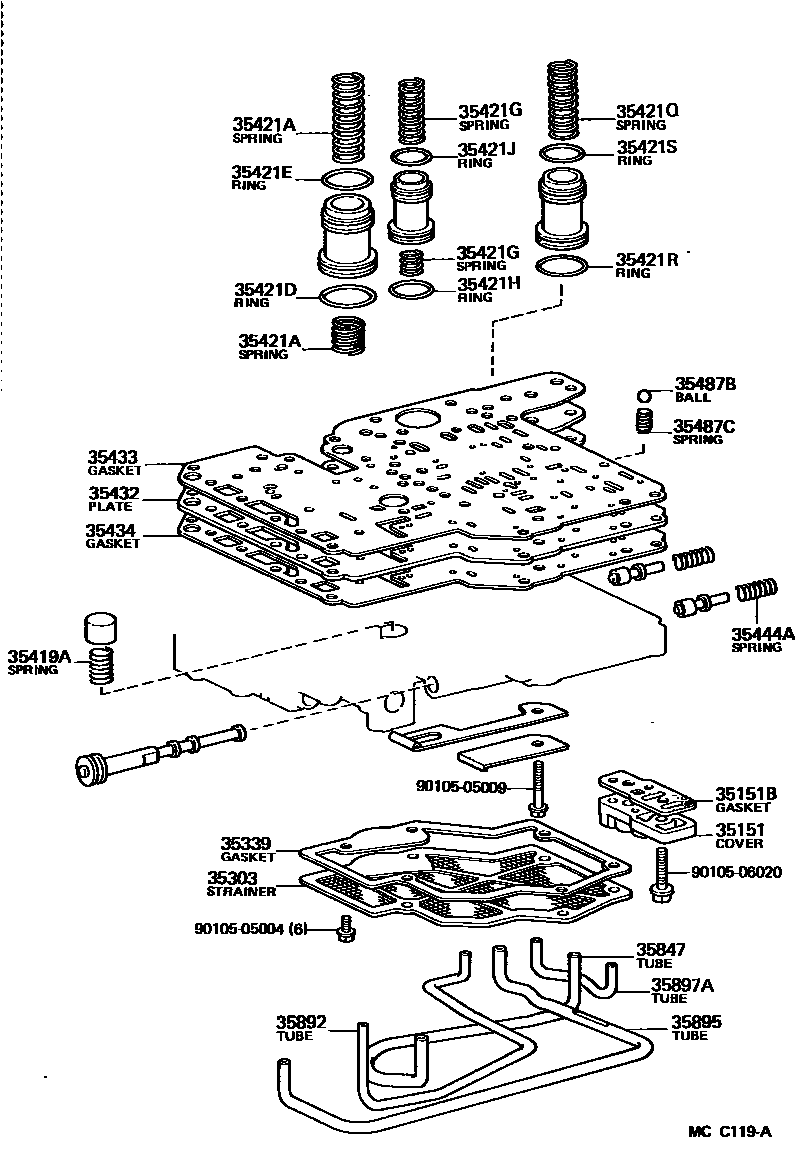

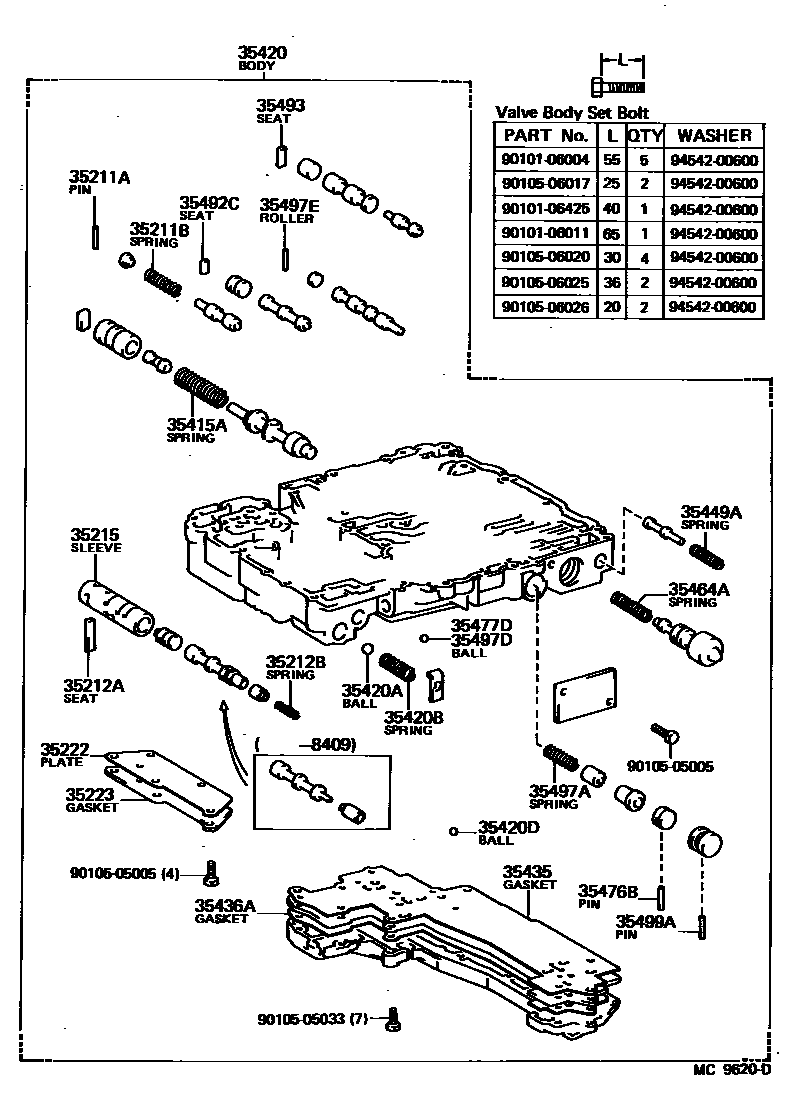

Toyota COROLLA 阀体和滤油网(ATM) — Figure 3512
Toyota COROLLA EPC diagram 3512, 阀体和滤油网(ATM), with 6 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35151 | gearbox lower cover | 35151-30020 |
| 35151B | Gearbox lower cover gasket | 35153-30010 |
| 35211A | Direct pin (for locking signal valve) | 90250-02007 |
| 35211B | Compression spring (for locking signal valve) | 90501-10078 |
| 35212A | Plunger seat (for locking relay valve) | 35493-22020 |
| 35212B | Compression spring (for locking relay valve) | 90501-07017 · 90501-10113 |
| 35215 | Locking relay valve sleeve | 35215-12030 · 35215-14010 · 35215-30013 |
| 35215B | Direct pin (for locking relay valve sleeve) | 90250-04027 |
| 35222 | Lock relay valve body plate | 35222-14010 · 35222-30010 |
| 35223 | Lock relay valve body gasket | 35223-14010 · 35223-30010 |
| 35303 | Oil filter sub-assembly | 35303-14010 · 35303-30060 |
| 35339 | Oil filter gasket | 35339-14010 · 35339-30060 |
| 35415A | Compression spring (for pressure regulator valve) | 90501-16682 · 90501-18039 |
| 35419A | Compression spring (for one-way valve) | 90501-13003 |
| 35420 | Lower valve body assembly | 35420-12050 · 35420-12051 · 35420-12052 · 35420-12070 · 35420-12071 · 35420-30171 |
| 35420A | Ball (for pressure reducing valve) | 90360-13024 |
| 35420B | Spring (for pressure reducing valve) | 90501-18677 |
| 35420D | Ball (for lower valve body) | 35495-22010 · 35496-22010 |
| 35420E | Spring (for lower valve body) | 90501-04727 |
| 35421A | Compression spring (for accumulator piston No. 1) | 90501-13012 · 90501-23083 · 90501-26776 |
| 35421D | Ring (for accumulator piston No. 1) | 90301-29187 |
| 35421E | Ring (for accumulator piston No. 1) | 90301-23194 |
| 35421G | Compression spring (for accumulator piston No. 2) | 90501-25002 |
| 35421H | Ring (for accumulator piston No. 2) | 90301-26190 |
| 35421J | Ring (for accumulator piston No. 2) | 90301-18186 |
| 35421Q | Compression spring (for No. 3 accumulator piston) | 90501-20016 · 90501-20063 |
| 35421R | Ring (for No. 3 accumulator piston) | 90301-26190 |
| 35421S | Ring (for No. 3 accumulator piston) | 90301-22185 |
| 35430 | Rear upper valve body assembly | 35430-14020 · 35430-30120 |
| 35430A | Ball (for rear upper valve body) | 35495-22010 · 90360-06023 |
| 35432 | No. 1 valve body plate | 35432-12071 · 35432-12072 · 35432-12110 · 35432-12111 · 35432-14021 · 35432-14022 |
| 35433 | No. 1 valve body gasket | 35433-14011 · 35433-14012 · 35433-30072 |
| 35434 | No. 2 valve body gasket | 35434-14011 · 35434-14012 · 35434-30062 |
| 35435 | No. 3 valve body plate gasket | 35435-14010 · 35435-30040 |
| 35436A | No. 4 valve body plate gasket | 35436-14010 · 35436-30050 |
| 35440 | Front upper valve body assembly | 35440-14010 · 35440-14011 · 35440-22110 · 35440-22111 |
| 35443A | Reduction screw plug sleeve | 35443-30010 |
| 35443B | Pin (for downshift plug socket) | 90250-03034 |
| 35444A | Compression spring (for intermediate regulator valve) | 90501-08725 · 90501-09686 · 90501-11009 |
| 35445A | Compression spring (for low speed regulator valve) | 90501-08725 |
| 35446A | Compression spring (for governor regulator valve) | 90501-07688 |
| 35449A | Compression spring (for sequence valve) | 90501-12726 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-08724 · 90501-09028 |
| 35456D | Seat (for 2-3 gear shift valve) | 35493-22020 · 35493-30030 |
| 35457B | Compression spring (for locking regulator valve) | 90501-09739 |
| 35458F | Seat (for reverse valve) | 35493-22010 |
| 35458G | Compression spring (for reverse valve) | 90501-06022 |
| 35462A | Compression spring (for throttle valve) | 90501-07680 · 90501-11011 · 90501-12011 |
| 35462C | Valve damping stop | 35422-22010 |
| 35462D | E-ring (for throttle valve) | 90523-06023 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-06684 · 90501-09028 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-19001 |
| 35469A | 3-2 gear downshift throttle control valve plunger | 35469-30020 |
| 35469C | Shift valve plunger roller | 90361-02051 |
| 35476B | Locating pin (for third-speed coaster shift valve) | 90250-02012 |
| 35477D | Check ball (for overdrive clutch bleeder valve) | 35495-22010 |
| 35487B | No. 4 one-way ball | 35487-30010 |
| 35487C | Compression spring (for one-way balls) | 90504-05006 |
| 35489A | Spring (for 3-2 gear kickdown throttle control valve) | 90501-12726 |
| 35492C | Valve seat (for manual downshift timing valve) | 35493-30040 |
| 35493 | Shift valve spring seat | 35493-22010 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90501-09028 · 90501-11005 |
| 35497B | Shift valve plunger seat (for 3-4 gear shift valve) | 35493-30030 |
| 35497D | One-way ball (for 3-4 gear shift valve) | 35495-22010 |
| 35497E | Needle roller (for 3-4 gear shift valve) | 90361-02051 |
| 35499A | Direct sales (for 3-4 gear shift valve) | 90250-02012 |
| 35521A | Spring (for throttle cam return) | 90508-12331 |
| 35521B | Gasket (for throttle cam assembly) | 90201-06472 |
| 35847 | Transmission lubricant supply pipe | 35847-30010 |
| 35892 | overdrive brake pipe | 35892-14010 · 35892-30030 |
| 35895 | Front clutch oil supply pipe | 35895-14011 · 35895-30030 |
| 35896 | Overdrive switch fuel supply pipe | 35896-30010 |
| 35897A | No. 1 first and reverse brake pipe | 35897-30010 |
