Toyota COROLLA 速度表从动齿轮(ATM) — Figure 3505

Toyota COROLLA EPC diagram 3505, 速度表从动齿轮(ATM), with 1 images and 5 PNC and OE references.

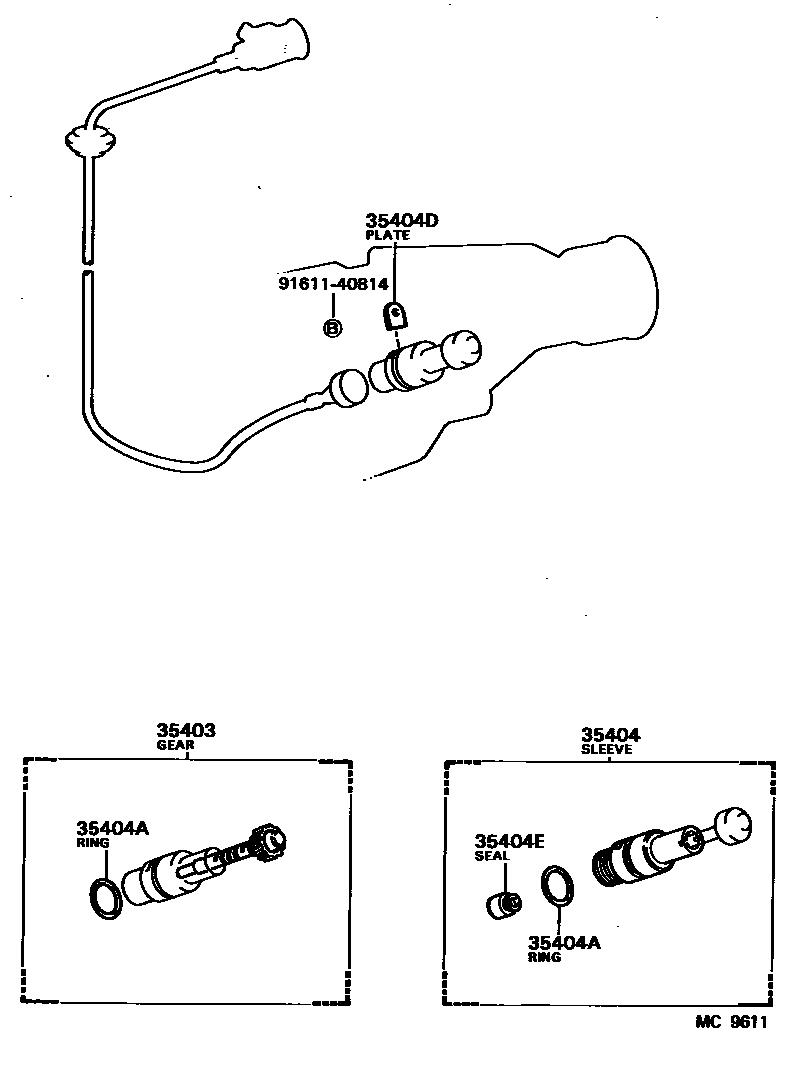

Toyota COROLLA 速度表从动齿轮(ATM) EPC diagram — MC9611
速度表从动齿轮(ATM) — MC9611 (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
35403Speedometer driven gear sub-assembly (ATM)33482-29025 · 33482-39015
35404Speedometer shaft sleeve sub-assembly (ATM)33404-30040
35404AO-ring (for automatic transmission speedometer shaft sleeve)90301-18004 · 90301-18018
35404DSpeedometer sleeve locking plate (ATM)33485-30020
35404EOil seal (for automatic transmission speedometer shaft sleeve)90310-09001
