Toyota COROLLA 变矩器、前油泵和链条(ATM) — Figure 3502

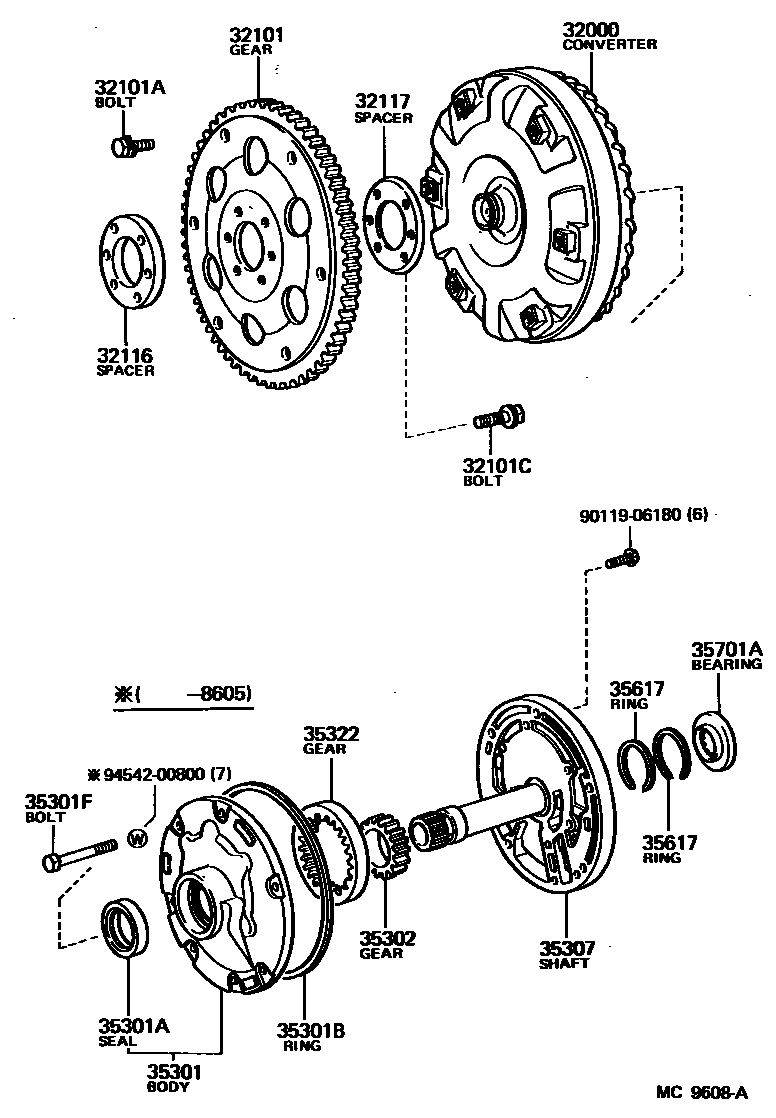

Toyota COROLLA EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-12070 · 32000-12071 · 32000-12150 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-12030 · 32101-17010 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-08090 · 90109-08113 · 90119-08223 · 90119-08498 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 |
| 32116 | Front transmission plate spacer | 32116-12010 · 32116-17010 |
| 32117 | Rear transmission plate spacer | 32117-12010 · 32117-17010 |
| 35301 | Front oil pump body sub-assembly | 35301-14010 |
| 35301A | Oil seal (for front oil pump) | 90311-38020 · 90311-38129 |
| 35301B | O-ring (for front oil pump body) | 90301-99010 |
| 35301F | Bolt (used to secure the front oil pump) | 90101-08042 · 90105-08137 |
| 35302 | Front oil pump driving gear sub-assembly | 35321-14010 |
| 35307 | Stator shaft sub-assembly | 35370-14011 · 35370-14012 |
| 35322 | Front oil pump driven gear | 35322-14010 |
| 35617 | Clutch drum oil ring | 35617-16010 · 35617-22011 · 35617-32010 |
| 35701A | Front thrust bearing (for input shaft) | 90374-25003 |
