Toyota COROLLA Shift Lever & Retainer — Figure 3312

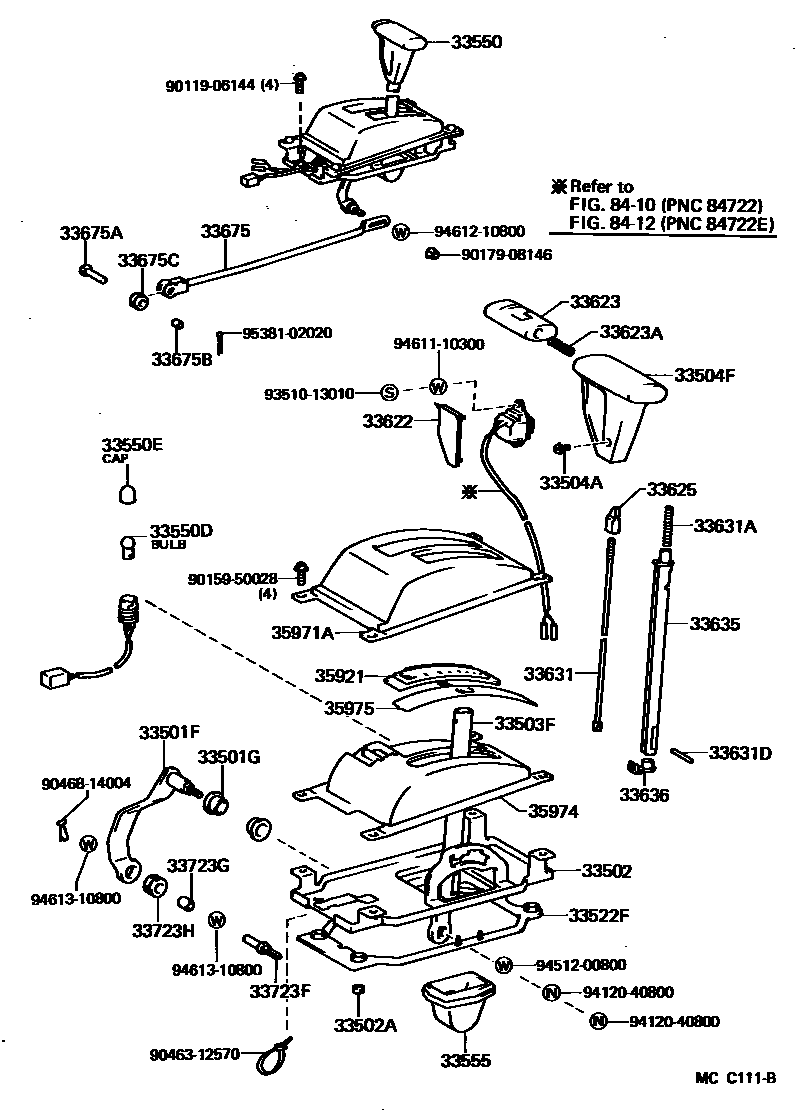

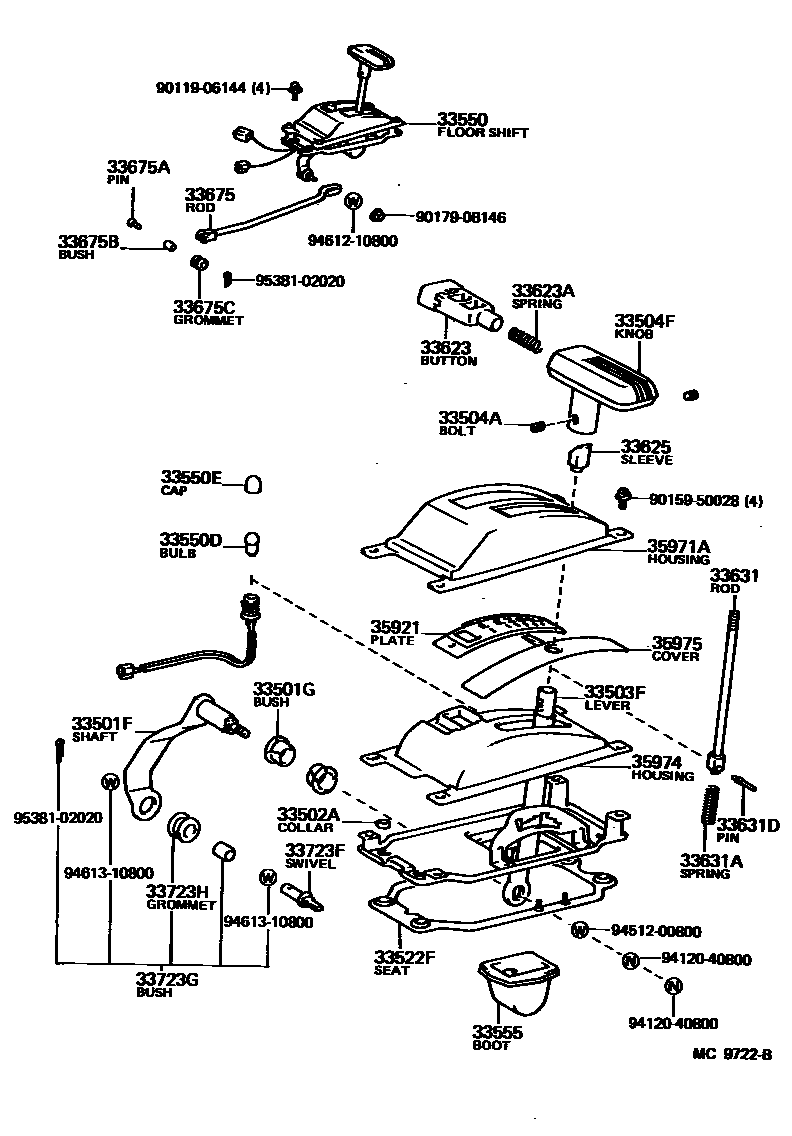

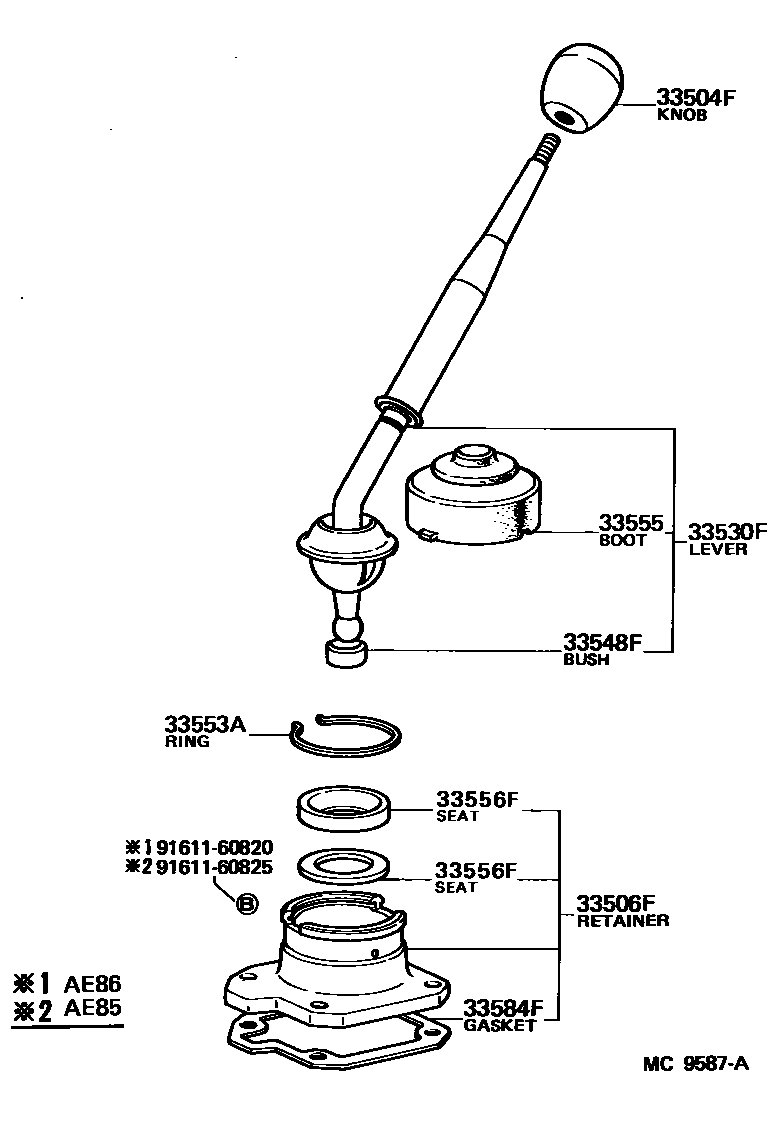

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33501F | Control shaft sub-assembly (for floor shift) | 33501-12150 |
| 33501G | Bushing (for floor mounted shift control shaft) | 90385-16008 · 90385-16045 |
| 33502 | Shift lever base plate sub-assembly | 33502-12230 |
| 33502A | Collar (for securing floor shift) | 90387-06005 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-12160 · 33503-12290 |
| 33504A | Bolt or pin (to secure the shifter knob) | 90113-05034 · 90159-40109 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33570-14021 |
| 33522F | Shift lever base plate holder (for floor shift) | 33522-12060 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12330 · 33530-12450 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-14010 |
| 33550 | Transmission floor shift assembly | 33550-12280 · 33550-12380 |
| 33550D | position indicator light bulb | 99132-11017 |
| 33550E | position indicator cover | 90339-09001 |
| 33553A | Snap ring (for shift lever spring seat) | 90521-49003 |
| 33555 | Gear shift lever dust cover | 33555-12080 · 33555-12090 |
| 33556F | Transmission shift lever ball seat | 33556-14010 · 33556-14020 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-20010 |
| 33623 | Shift lever handle button | 33623-22060 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 |
| 33625 | Shift lever handle sleeve | 33625-22020 · 33625-32010 |
| 33631 | Locking lever | 33631-12051 · 33631-12080 |
| 33631A | Compression spring (for locking lever) | 90501-07005 |
| 33631D | Grooved pin (for locking lever) | 90256-04001 |
| 33635 | Cable guide (for gear selector) | 33635-12030 |
| 33636 | Cable guide No. 2 (for gear selector) | 33635-12030 |
| 33675 | Transmission lever (for floor shift) | 33702-12040 |
| 33675A | Pin with hole (for transmission control lever) | 90240-08043 |
| 33675B | Bushing (for transmission control lever) | 90387-08022 |
| 33675C | retaining ring (for transmission control lever) | 90480-17013 |
| 33723F | Connecting rod swivel joint (for floor shifting) | 33723-22010 |
| 33723G | Bushing (for floor mounted shift control shaft) | 90389-08005 · 90999-99017 |
| 33723H | Retaining ring (for floor mounted shift control shaft) | 90480-17177 |
| 35921 | control position indicator board | 35921-12220 · 35921-12240 |
| 35974 | Position indicator light lower shell | 35974-12060 |
| 35975 | Slide cover (for position indicator light) | 35975-12090 · 35975-12120 |
