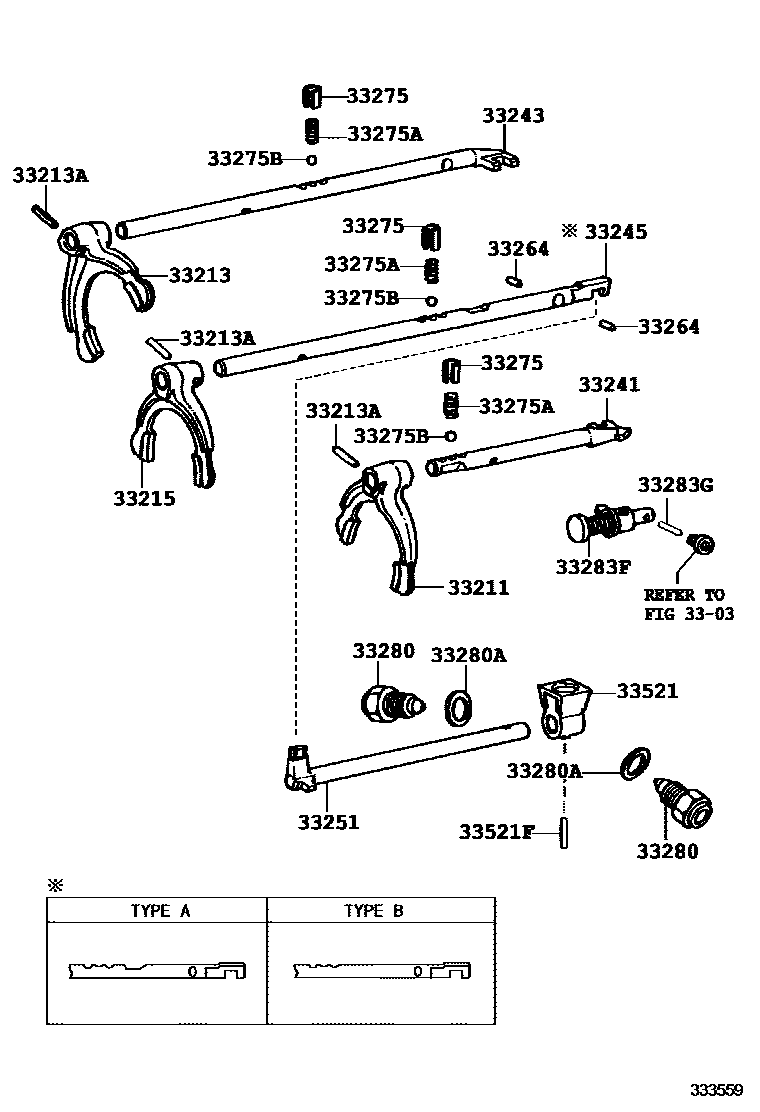

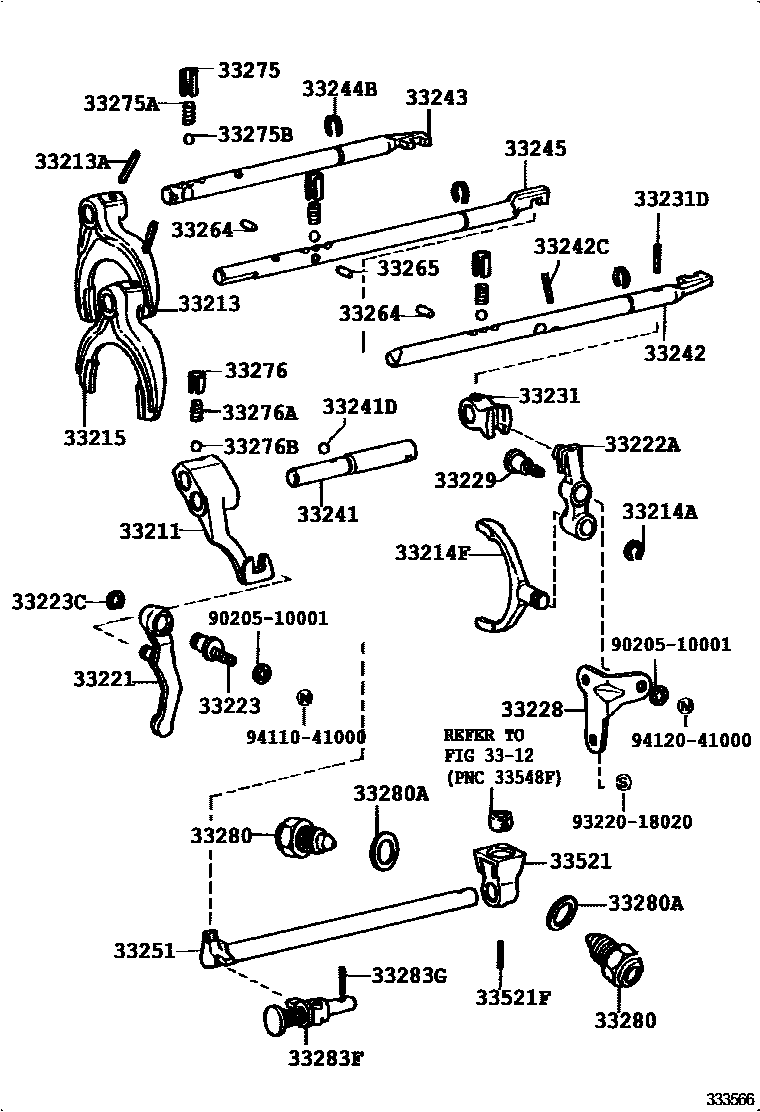

Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307
Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33211 | Reverse Shift Fork | 33211-10020 · 33214-14010 |
| 33213 | First and second gear shift forks | 33212-14010 · 33213-12010 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05001 |
| 33214A | Shaft snap ring (for fifth-speed shift fork) | 90520-12001 |
| 33214F | Five-speed shift fork | 33214-10011 |
| 33215 | Third and fourth gear shift forks | 33213-14010 · 33215-12011 |
| 33221 | Reverse shift arm | 33221-12010 |
| 33222A | fifth gear shift arm | 33222-10011 |
| 33223 | shift arm pivot | 33223-12060 |
| 33223C | Shaft snap ring (for shift arm pivot) | 96150-01300 |
| 33228 | Reverse shift arm bracket | 33228-12010 |
| 33229 | Fifth gear shift arm pivot | 33229-10011 |
| 33231 | Reverse gear shift guide block | 33232-10011 |
| 33231D | Pin (for reverse shift guide) | 90254-05001 |
| 33241 | Reverse shift fork shaft | 33241-10020 · 33244-14050 |
| 33241D | Interlocking steel balls (for reverse shift fork) | 90360-10003 |
| 33242 | No. 1 shift fork shaft | 33244-12020 |
| 33242C | Direct pin (for shift fork shaft) | 90254-05001 |
| 33243 | First and second gear shift fork shaft | 33242-12021 · 33242-14030 |
| 33244B | Shaft snap ring (for shift fork shaft) | 90520-12001 |
| 33245 | Third and fourth gear shift fork shaft | 33243-12050 · 33243-14030 · 33243-14040 |
| 33251 | shift lever | 33251-12050 · 33251-14010 |
| 33264 | No. 1 shift interlock pin or steel ball | 90250-05197 · 90250-06188 |
| 33265 | No. 2 shift interlock pin | 90250-05197 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12010 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-14237 |
| 33275B | Gear shift lock steel ball | 90360-10003 |
| 33276 | No. 2 shift lock steel ball spring seat | 33275-10021 |
| 33276A | No. 2 compression spring (for shift lock steel ball) | 90501-14237 |
| 33276B | No. 2 shift lock steel ball | 90360-10003 |
| 33280 | Reverse gear positioning pin assembly | 33280-12040 · 33280-12050 |
| 33280A | Reverse gear positioning pin gasket | 90430-22002 |
| 33283F | Reverse gear positioning pin | 33280-12011 · 33280-20030 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05001 |
| 33521 | shift lever housing | 33521-12100 · 33521-14060 |
| 33521F | Pin or bolt (for shifter housing) | 90254-05001 |
