Toyota COROLLA 离合器壳和变速器壳(MTM) — Figure 3302

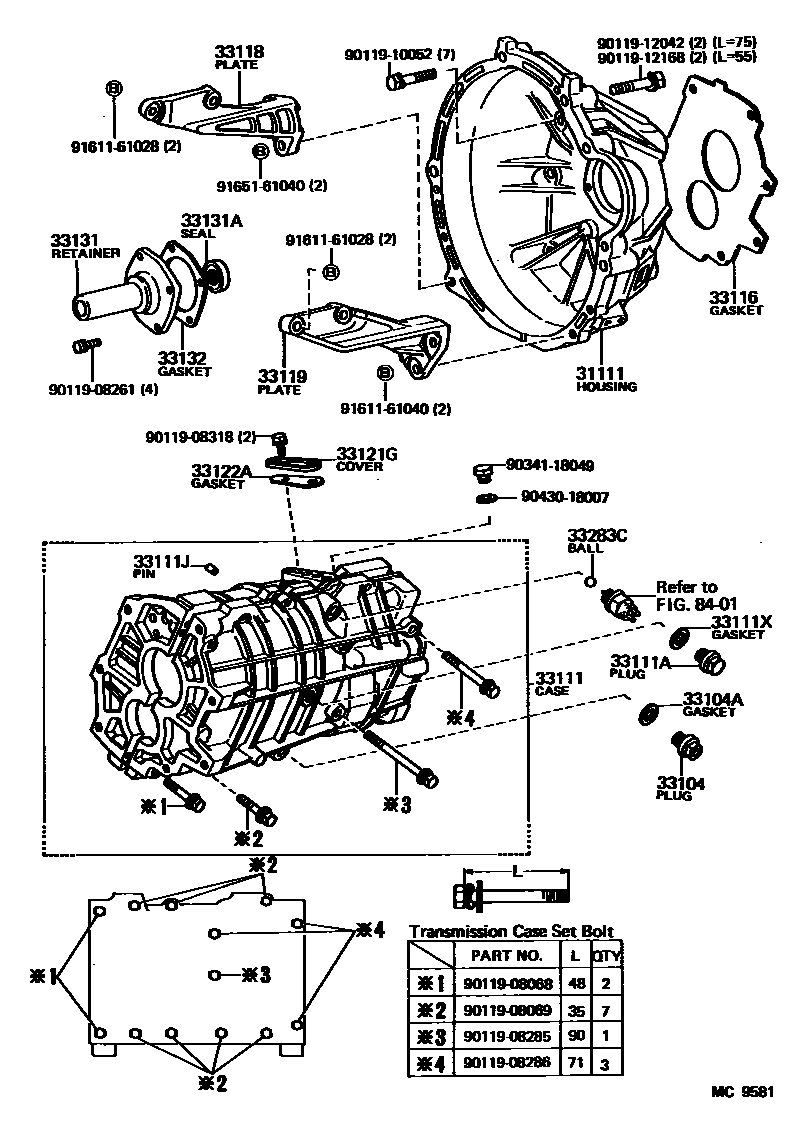

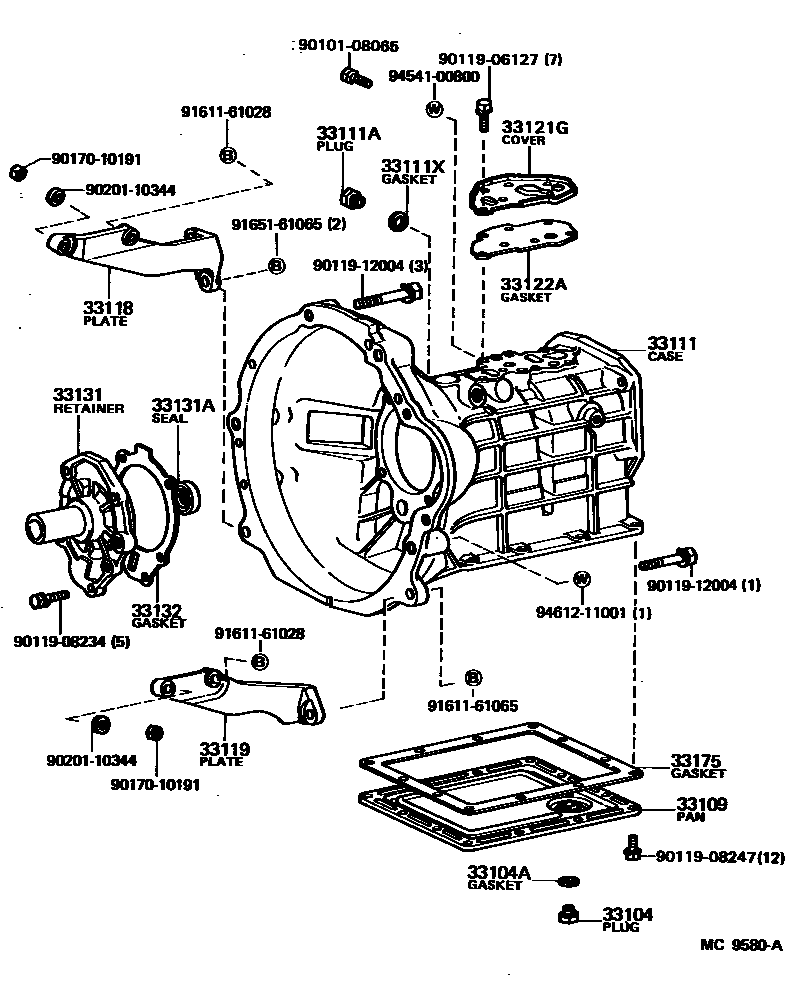

Toyota COROLLA EPC diagram 3302, 离合器壳和变速器壳(MTM), with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31111 | clutch housing | 31111-12050 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18057 · 90341-18081 |
| 33104A | Drain plug gasket (MTM) | 90430-18007 · 90430-18008 |
| 33109 | Transmission oil pan sub-assembly (MTM) | 33109-12011 · 33109-12012 |
| 33111 | Manual transmission housing | 33101-14040 · 33101-14051 · 33111-12121 |
| 33111A | Manual transmission plug | 90341-18006 |
| 33111J | Direct sales (for manual transmission) | 90250-08030 |
| 33111X | Gearbox plug gasket | 90430-18007 · 90430-18008 |
| 33116 | manual transmission gasket | 33116-14020 |
| 33118 | Right reinforcement plate (MTM) | 33118-12110 · 33118-14040 |
| 33119 | Left reinforcement plate (MTM) | 33119-12081 · 33119-12100 |
| 33121G | manual gearbox cover | 33121-12031 · 33121-14010 |
| 33122A | Manual transmission cover gasket | 33122-12031 · 33122-14010 |
| 33131 | Front bearing retainer (MTM) | 33131-12060 · 33131-14020 |
| 33131A | Oil seal (for transmission front bearing retainer) | 90311-25003 |
| 33132 | Front bearing retainer pad (MTM) | 33132-12050 · 33132-14020 |
| 33175 | Manual transmission oil pan gasket | 33175-12010 |
| 33283C | Reverse gear positioning steel ball | 90360-10003 |
