Toyota COROLLA 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301

Toyota COROLLA EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 2 images and 2 PNC and OE references.

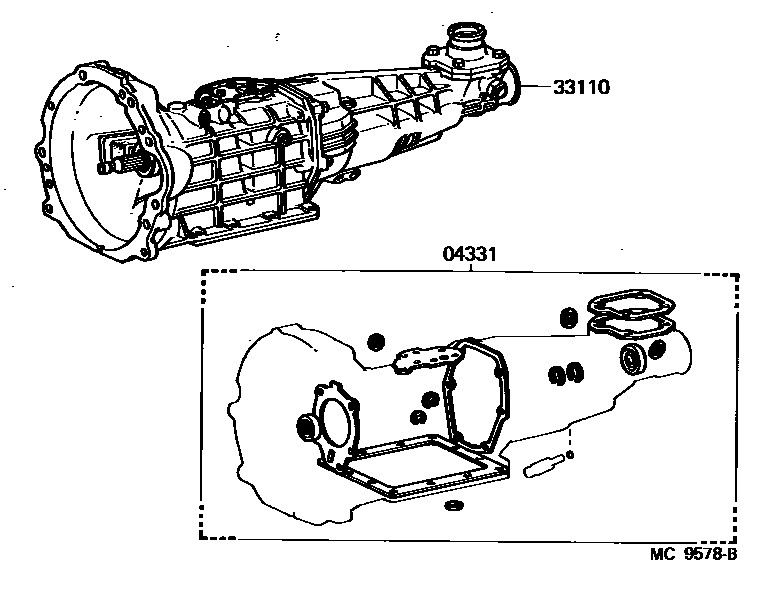

Toyota COROLLA 传动桥或变速器总成和衬垫组件(MTM) EPC diagram — MC9578B
传动桥或变速器总成和衬垫组件(MTM) — MC9578B (198305 – 999999)

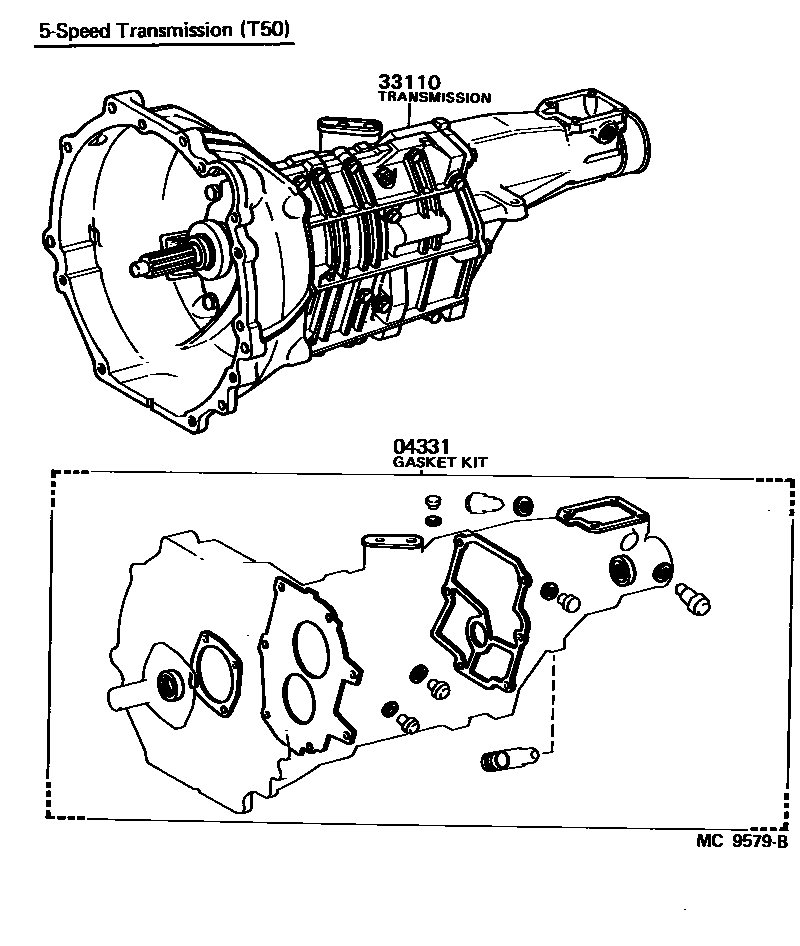

Toyota COROLLA 传动桥或变速器总成和衬垫组件(MTM) EPC diagram — MC9579B
传动桥或变速器总成和衬垫组件(MTM) — MC9579B (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
04331Manual transmission overhaul gasket assembly04331-12070 · 04331-14030
33110Manual transmission assembly33030-12162 · 33030-12450 · 33030-12470
