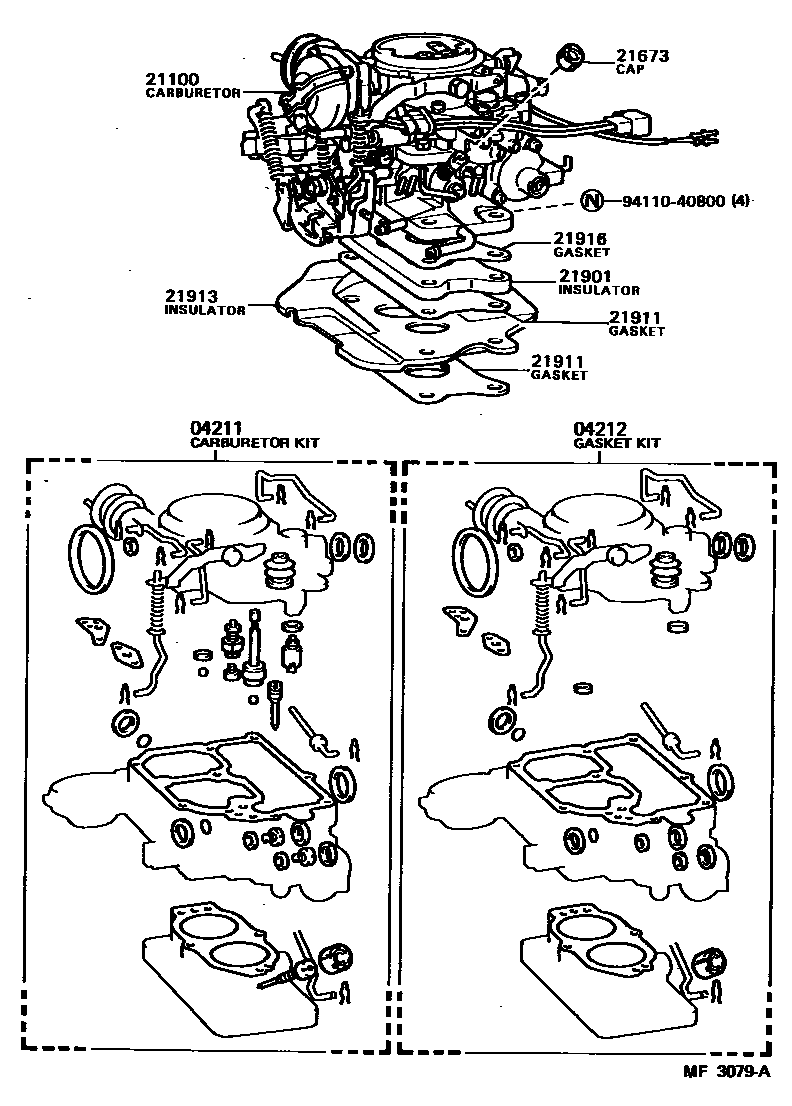

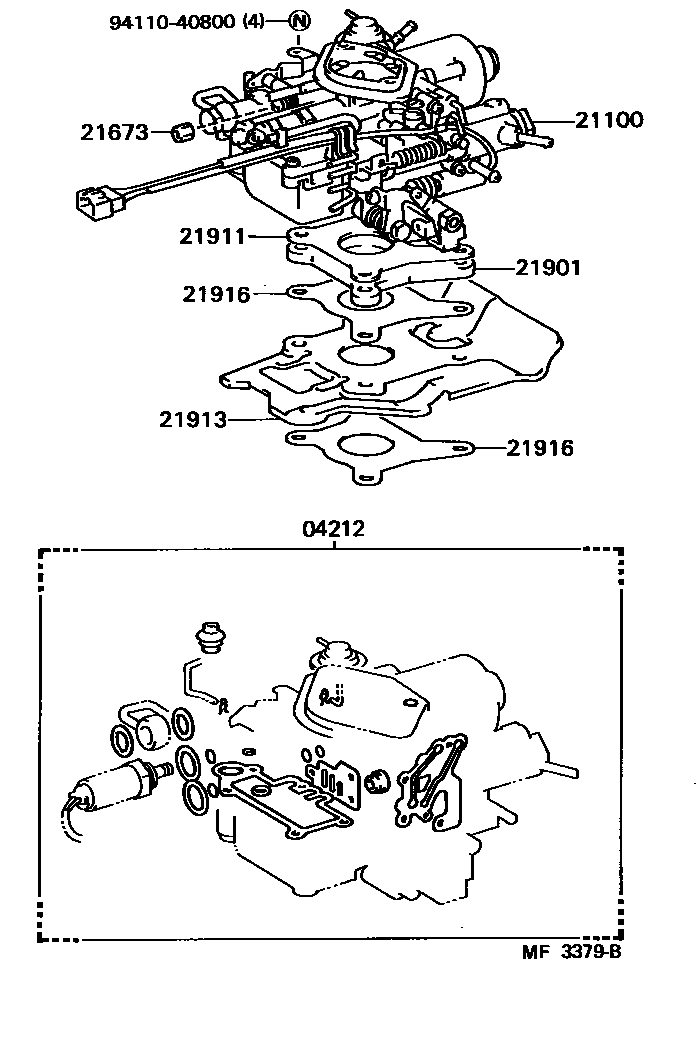

Toyota COROLLA carburetor assembly — Figure 2102
Toyota COROLLA EPC diagram 2102, carburetor assembly, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04211 | carburetor components | 04211-15080 |
| 04212 | carburetor gasket assembly | 04212-15050 · 04212-15091 |
| 21100 | carburetor assembly | 21100-15231 · 21100-15241 · 21100-15460 · 21100-15470 |
| 21673 | Idle speed limit cap | 21673-13280 |
| 21901 | No. 1 carburetor heat insulation pad sub-assembly | 21901-15012 · 21901-15070 |
| 21911 | carburetor gasket | 21911-15040 · 21914-15020 |
| 21913 | No. 2 carburetor insulation pad | 21913-15010 · 21913-15070 |
| 21916 | No. 2 carburetor gasket | 21914-15020 · 21914-15030 |
