Toyota COROLLA 警示铭牌和名称铭牌(发动机) — Figure 1709

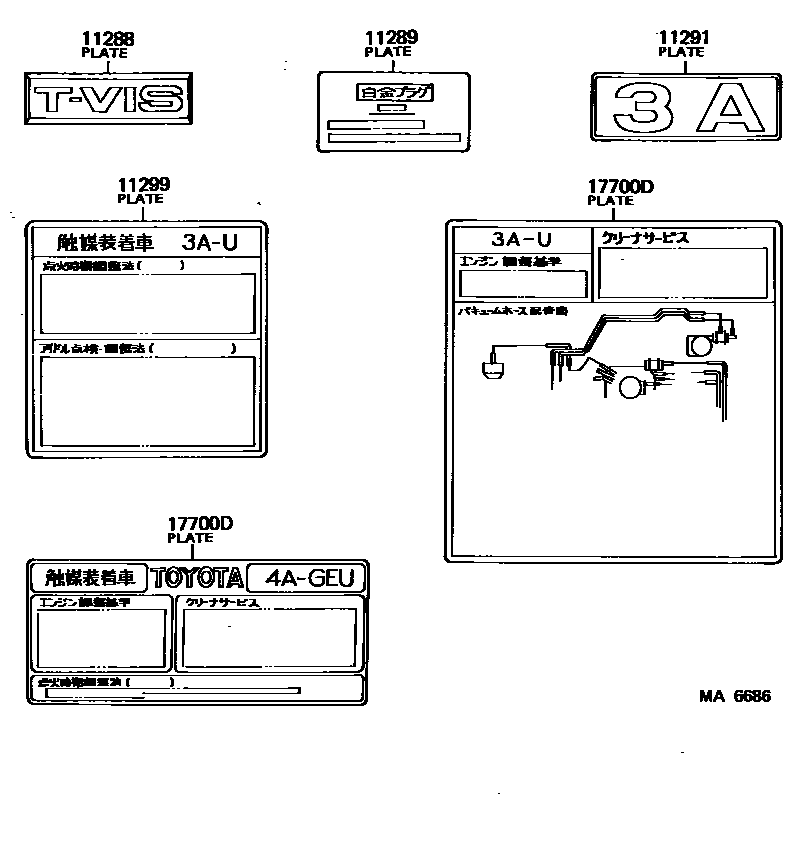

Toyota COROLLA EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11288 | Engine system nameplate | 11288-88301 |
| 11289 | Spark plug warning nameplate | 11289-16010 · 11289-70010 · 11289-72010 |
| 11291 | Engine name plate | 11291-15080 · 11291-16040 |
| 11299 | Idle speed adjustment warning nameplate | 11299-15120 · 11299-15150 |
| 17700D | Engine warning plate | 11293-15110 · 11293-15180 · 11293-15181 · 11293-16020 · 11293-16021 · 11293-16022 |
