Toyota COROLLA vacuum tube — Figure 1708

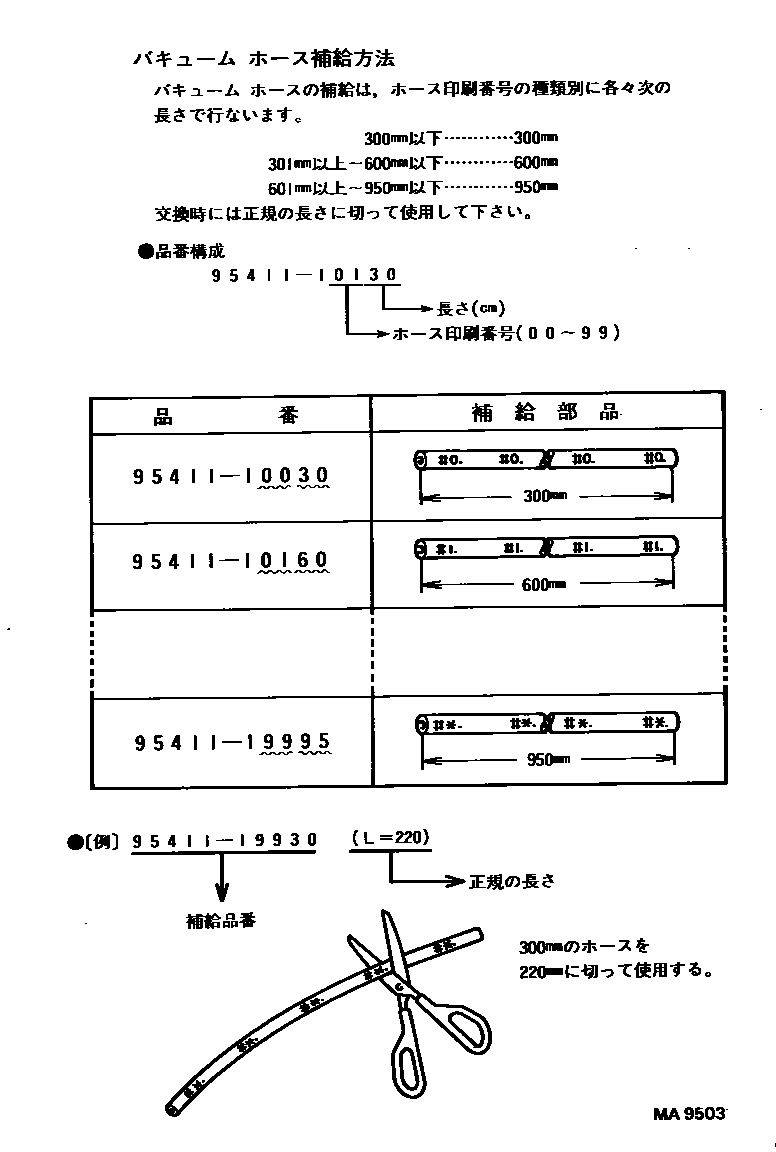

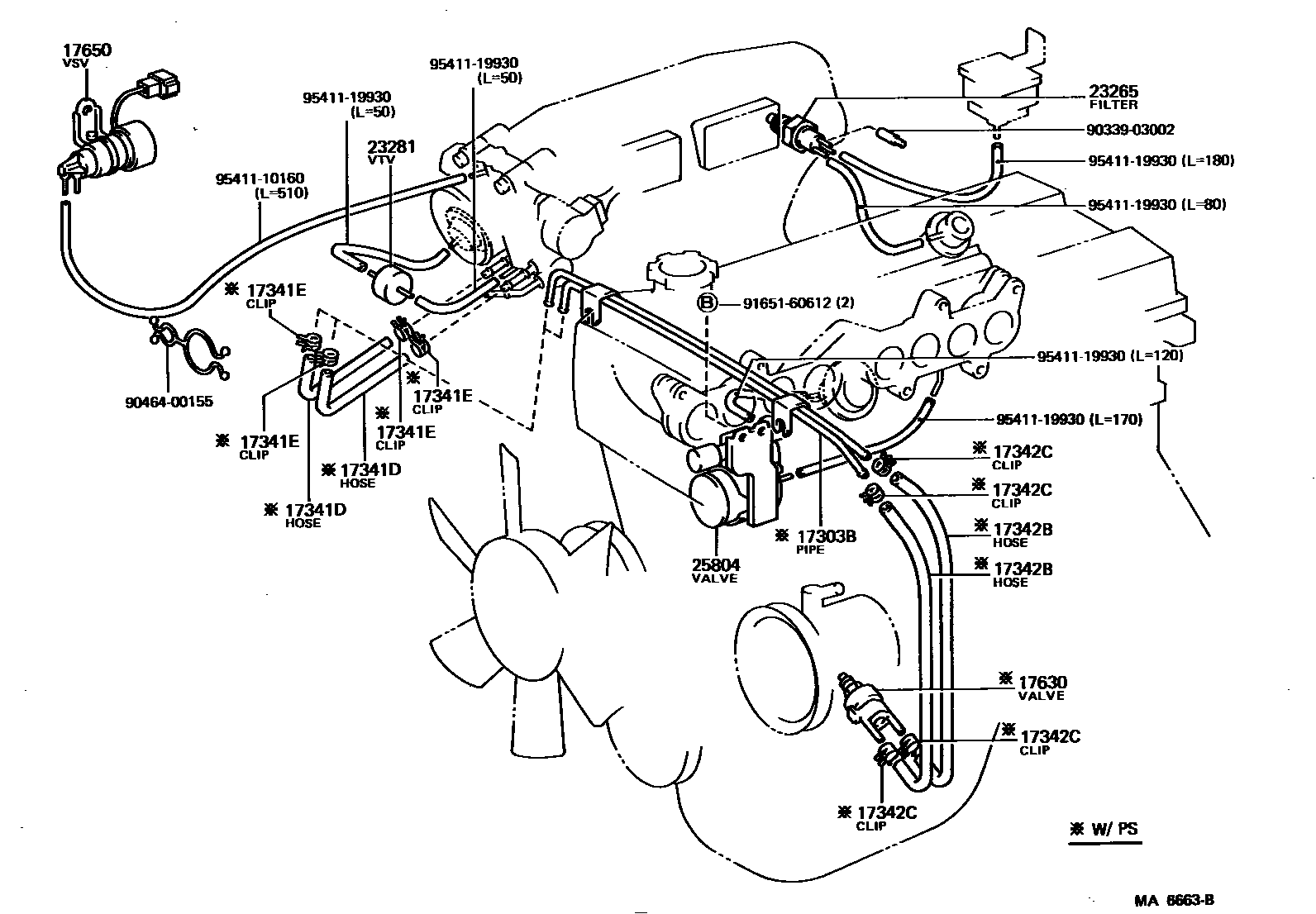

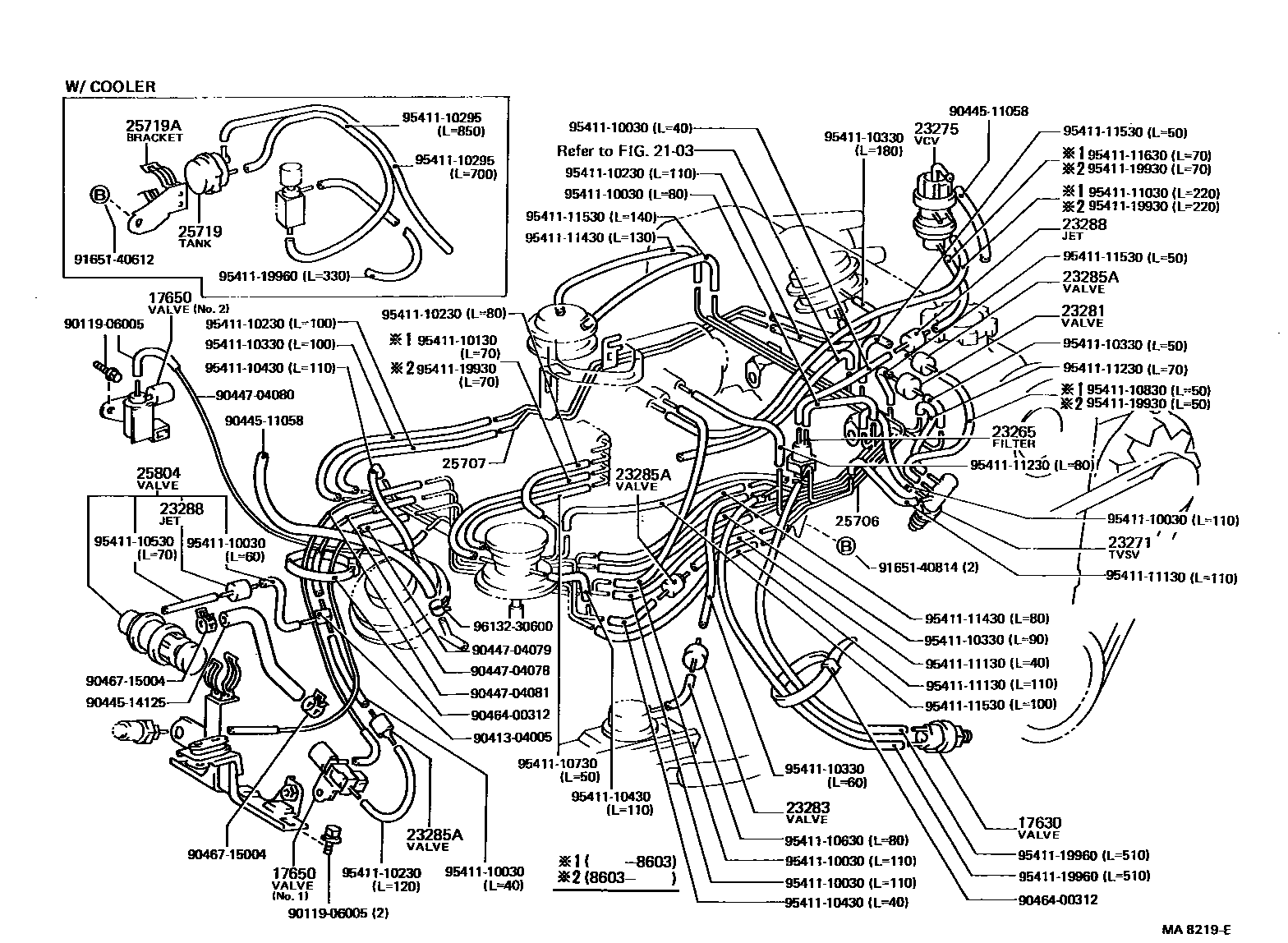

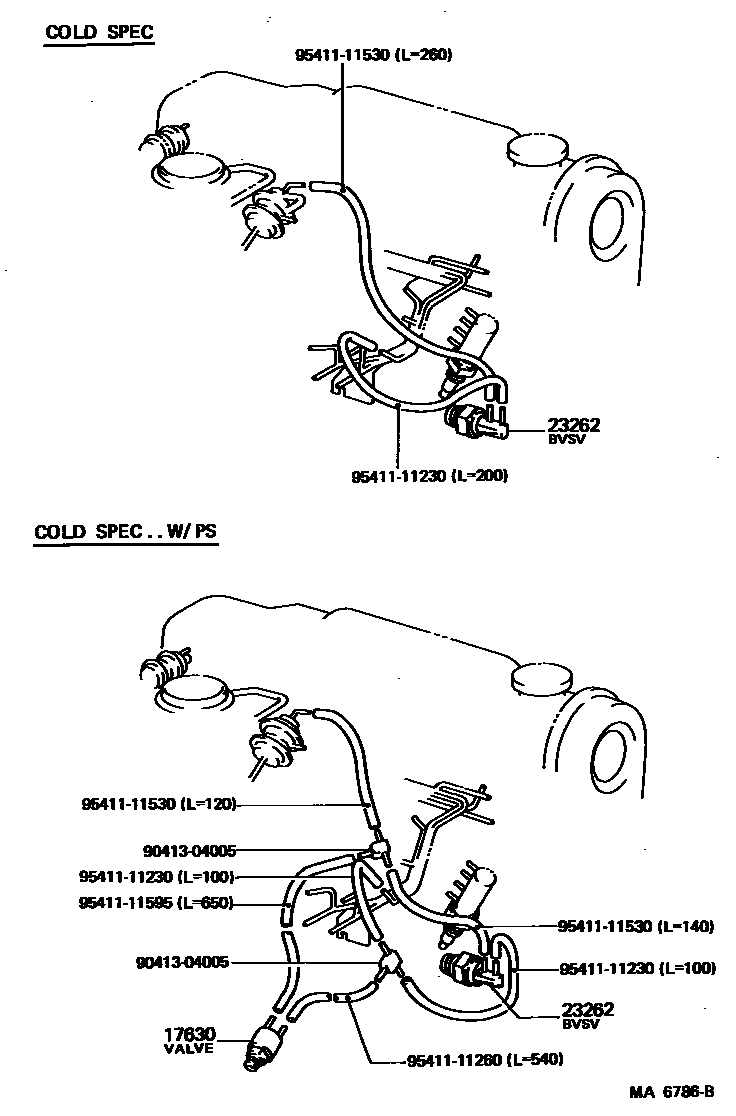

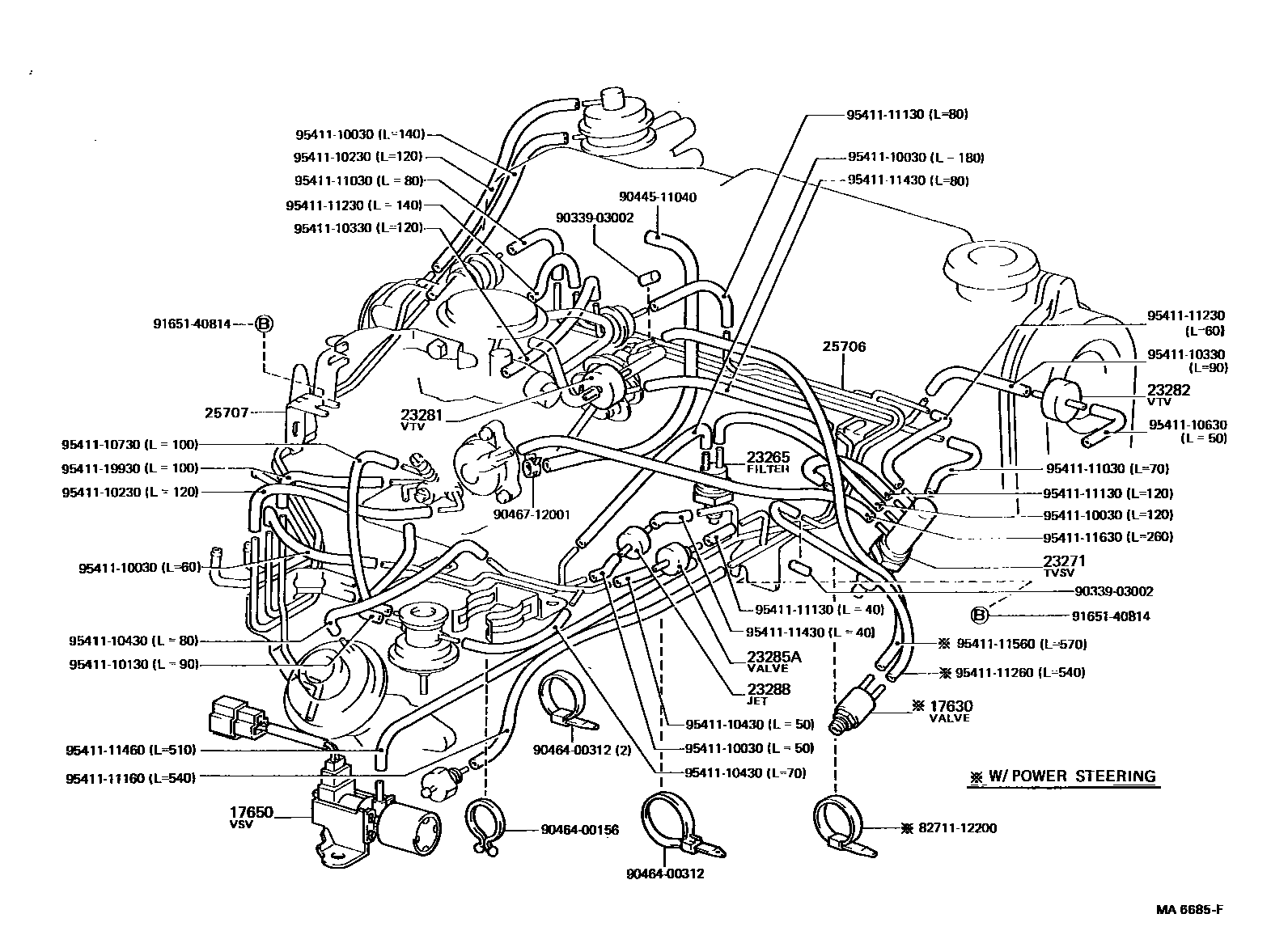

Toyota COROLLA EPC diagram 1708, vacuum tube, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-16020 |
| 17341D | No. 1 hose (for idle boost) | 17341-16030 |
| 17341E | Clamp No. 1 (for idle lift hose) | 96132-30400 |
| 17342B | No. 2 hose (for idle boost) | 17342-16020 · 17342-16040 |
| 17342C | Clamp No. 2 (for idle lift hose) | 96132-30400 |
| 17630 | Air control valve assembly | 17630-15020 · 17630-15021 · 17630-70010 |
| 17650 | Vacuum switch valve assembly | 89570-12220 · 89570-12250 · 89570-12251 · 89570-12340 · 90910-12017 · 90910-12028 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05013 |
| 23263 | No. 2 bimetallic vacuum switch valve | 25810-13010 |
| 23265 | No. 1 gas filter | 90917-11023 · 90917-11027 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 · 90925-02078 |
| 23275 | Vacuum control valve No. 1 | 90925-03159 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01014 · 90925-01091 |
| 23282 | Vacuum Transfer Valve No. 2 | 90925-01095 |
| 23283 | Vacuum Transfer Valve No. 3 | 90925-01095 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23288 | Nozzle No. 1 | 90925-01095 · 90925-04012 · 90925-04013 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-15160 · 25706-15161 · 25706-15190 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-15120 · 25707-15160 |
| 25719 | Vacuum pressure tank | 25719-15010 |
| 25719A | Vacuum tank clip holder | 44756-12010 |
| 25804 | Vacuum control valve assembly | 25804-12010 · 25804-16010 |
