Toyota COROLLA Air Cleaner — Figure 1703

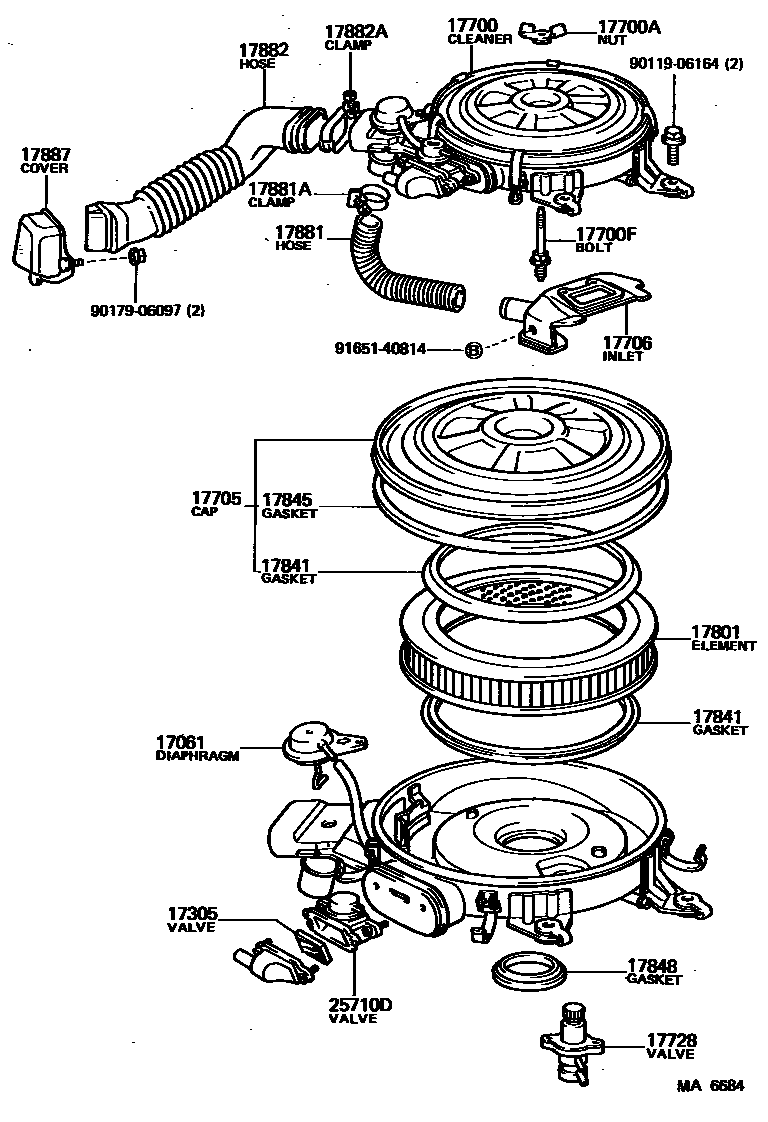

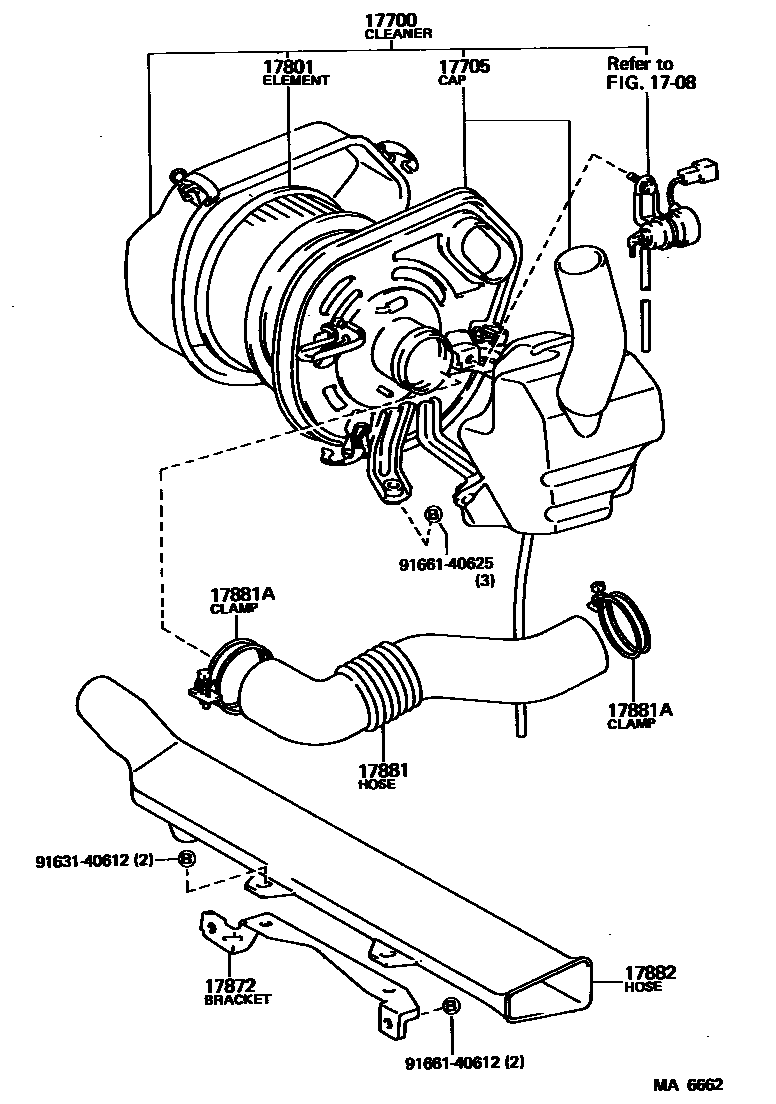

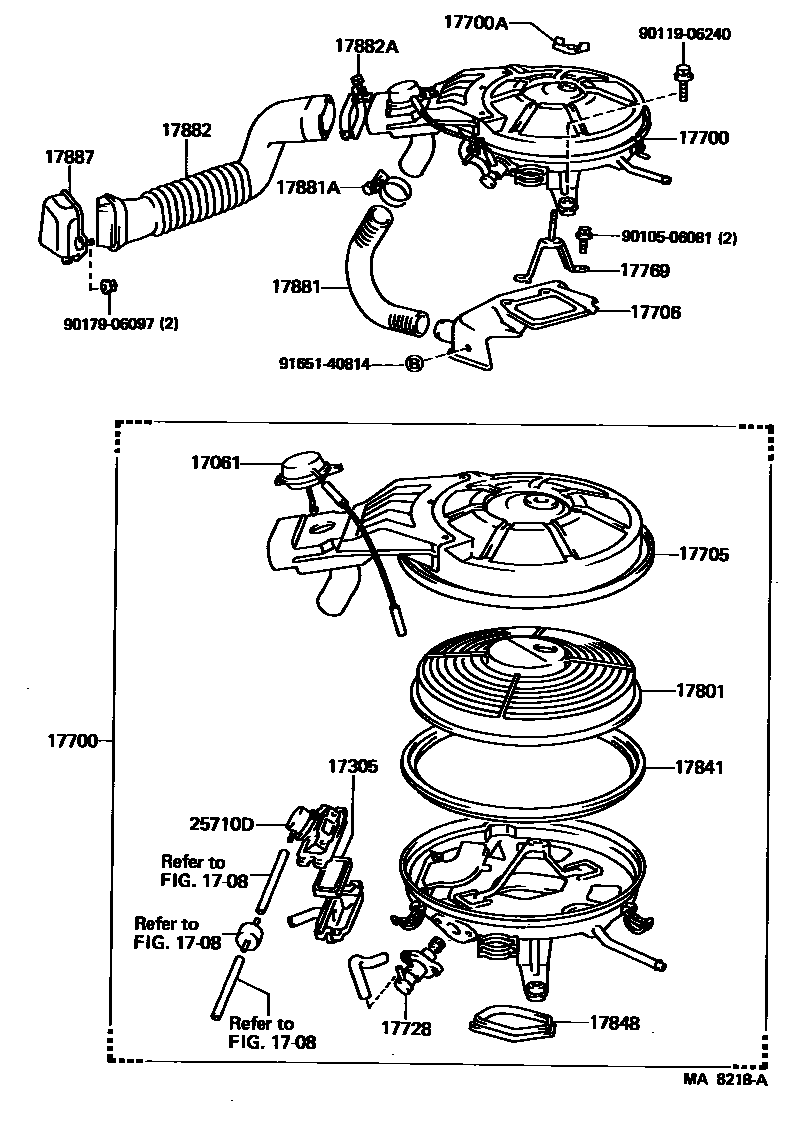

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-15040 |
| 17305 | Reed valve sub-assembly | 17305-15030 · 17305-16010 |
| 17700 | air filter assembly | 17700-15150 · 17700-15220 · 17700-16090 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 · 90175-06011 |
| 17700F | Stud bolt (for securing air filter) | 90116-06230 |
| 17705 | Air filter cover sub-assembly | 17705-15060 · 17705-15130 · 17705-16020 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17902-16030 |
| 17728 | thermostat valve | 17728-13030 · 17728-15040 |
| 17769 | air filter bracket | 17769-15020 |
| 17801 | Air filter element sub-assembly | 17801-10030 · 17801-15010 · 17801-45020 |
| 17841 | filter liner | 17841-15010 · 17845-10020 |
| 17845 | air cleaner cover gasket | 17845-61011 |
| 17848 | Gasket from air cleaner to carburetor | 17848-15010 · 90430-63001 |
| 17872 | Air intake connecting pipe bracket | 17872-16010 |
| 17881 | No. 1 air cleaner hose | 17881-16020 · 17881-63010 · 17881-74040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10460 · 96111-10830 |
| 17882 | No. 2 air cleaner hose | 17881-15060 · 17882-16010 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01005 |
| 17887 | air cleaner hose cover | 58405-12020 |
| 25710D | Air switch valve assembly | 25710-15050 · 25710-15070 |
