Toyota COROLLA Exhaust Pipe — Figure 1702

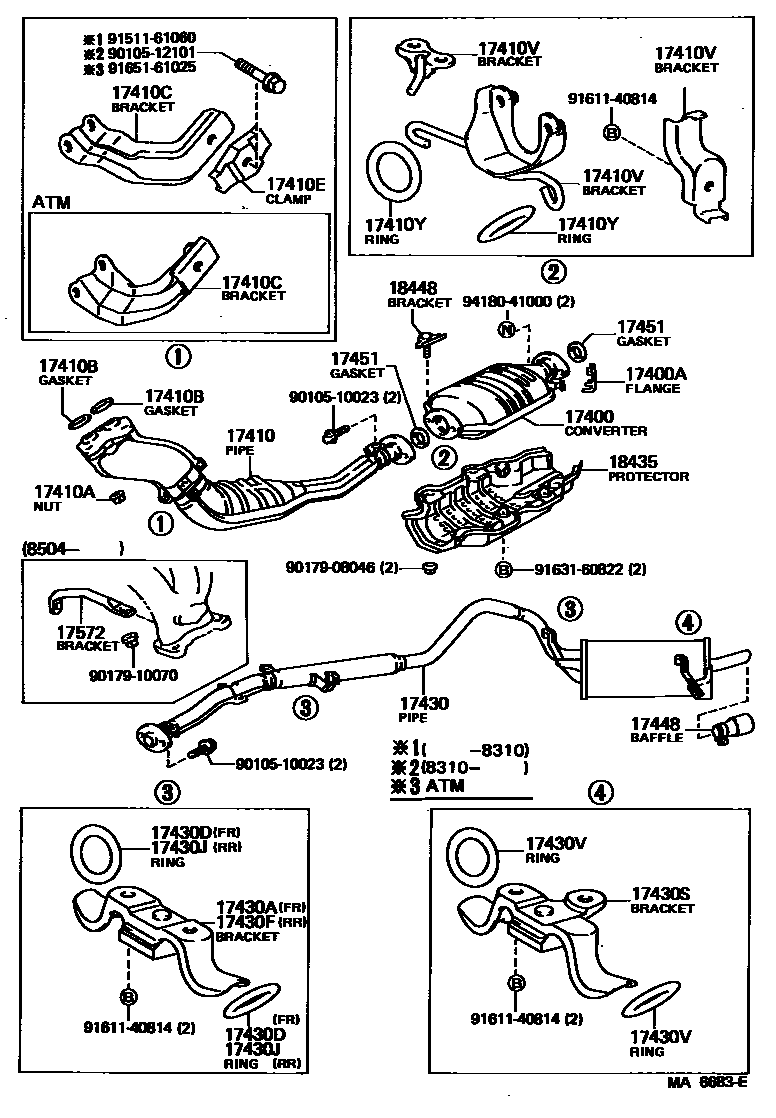

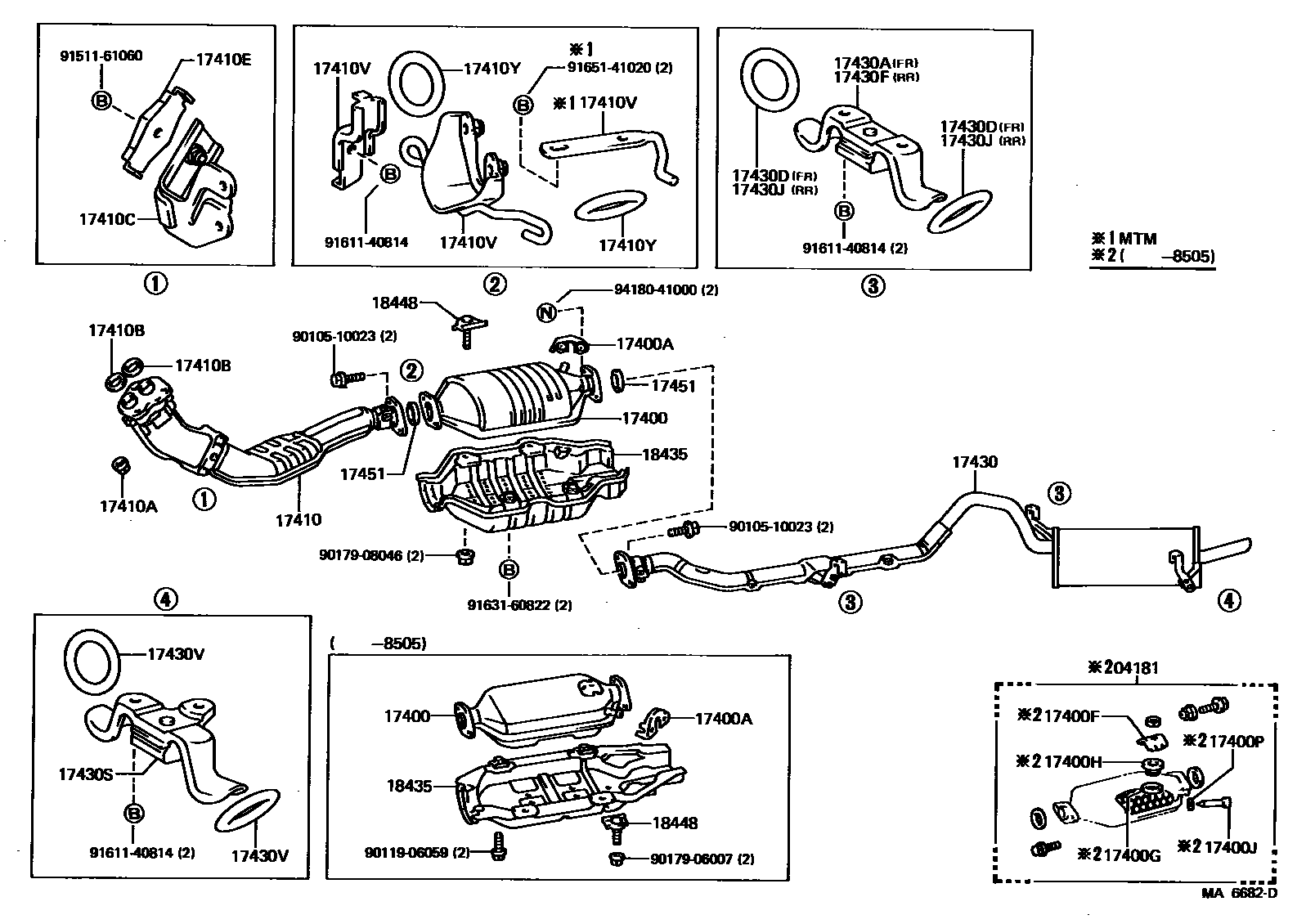

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04181 | Granular Catalyst Components | 04181-41030 |
| 17400 | Three-way catalytic converter assembly with catalyst | 17400-15040 · 18450-15080 · 18450-16040 · 18450-16041 |
| 17400A | Thermal sensor air inlet flange | 18491-28010 · 18491-63010 · 18491-64010 |
| 17400F | Catalyst air inlet plug locking plate | 18493-38011 |
| 17400G | Catalyst air inlet gasket | 18494-38010 |
| 17400H | Headed straight thread plug (for catalyst inlet) | 90341-24093 |
| 17400J | Three-way catalytic converter sensor guide | 18492-45010 |
| 17400P | Gasket (for three-way catalytic converter sensor guide) | 90430-08252 |
| 17410 | Front exhaust pipe assembly | 17410-15170 · 17410-15220 · 17410-16010 · 17410-16011 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10010 · 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06001 · 90917-06004 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-15110 · 17571-16010 · 17571-16090 · 17571-16130 · 17571-16150 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 17578-15030 · 17578-15031 · 90917-04046 |
| 17410V | Front exhaust pipe bracket (for rear) | 17503-15070 · 17503-16010 · 17503-16020 · 17503-16080 · 17505-16010 · 17587-15010 · 17588-15030 · 17588-16010 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 90301-36001 |
| 17430 | Exhaust tailpipe assembly | 17430-15230 · 17430-15240 · 17430-15340 · 17430-16010 · 17430-16011 · 17430-16230 |
| 17430A | Exhaust tailpipe bracket (for front) | 17506-13020 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 90301-36001 |
| 17430F | Exhaust tailpipe bracket (for center) | 17506-13020 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 90301-34207 · 90301-36001 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17508-13010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 90301-34207 · 90301-36001 |
| 17448 | Exhaust pipe tail throat | 17406-70010 · 17406-79025 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06018 · 90917-06023 |
| 17572 | No. 1 exhaust pipe bracket | 17572-16010 |
| 18435 | Three-way catalytic converter protection device | 18407-15020 · 18407-25011 |
| 18448 | Three-way catalytic converter protection device central bracket | 18439-15030 · 18448-26020 |
