Toyota COROLLA Manifold — Figure 1701

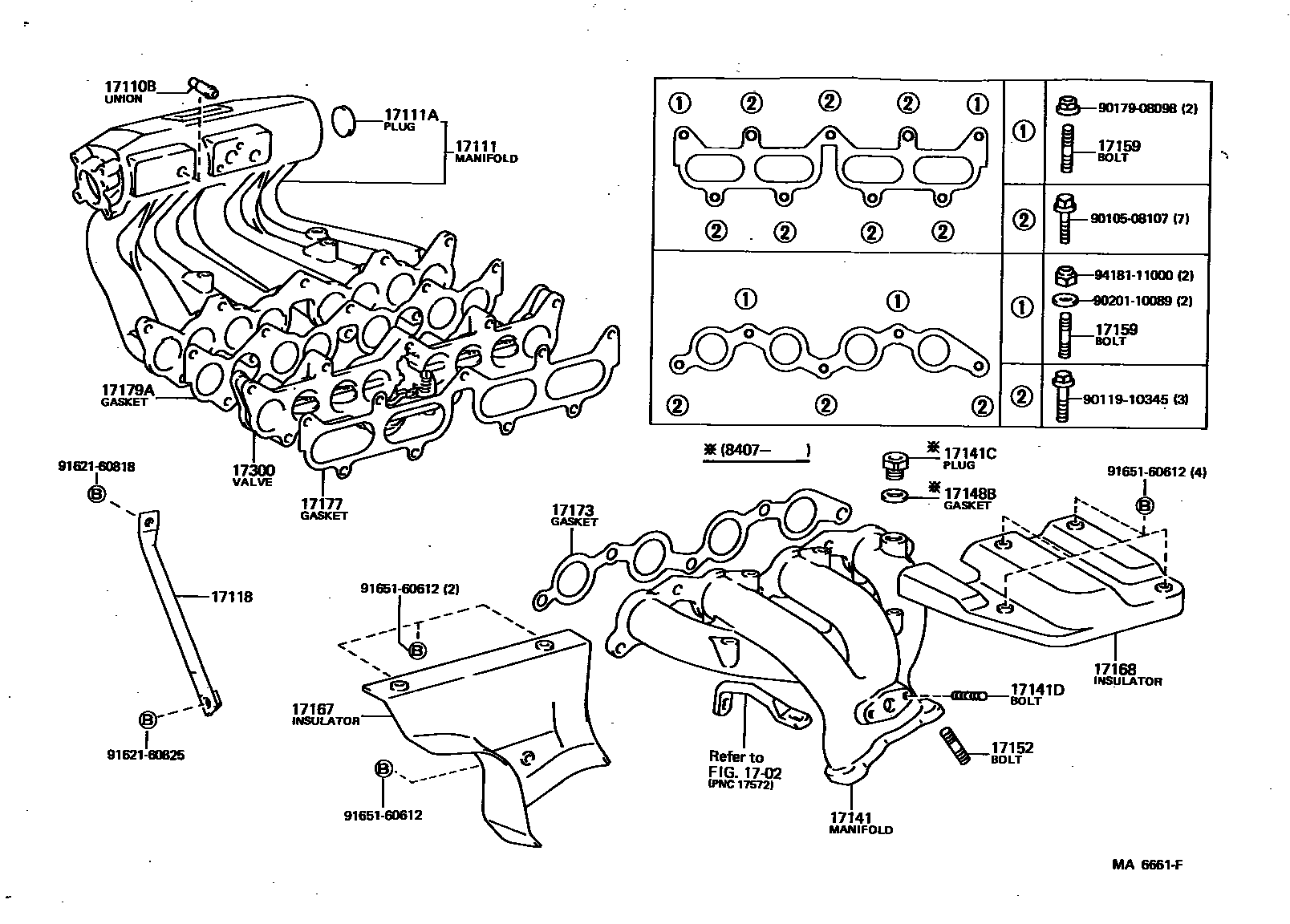

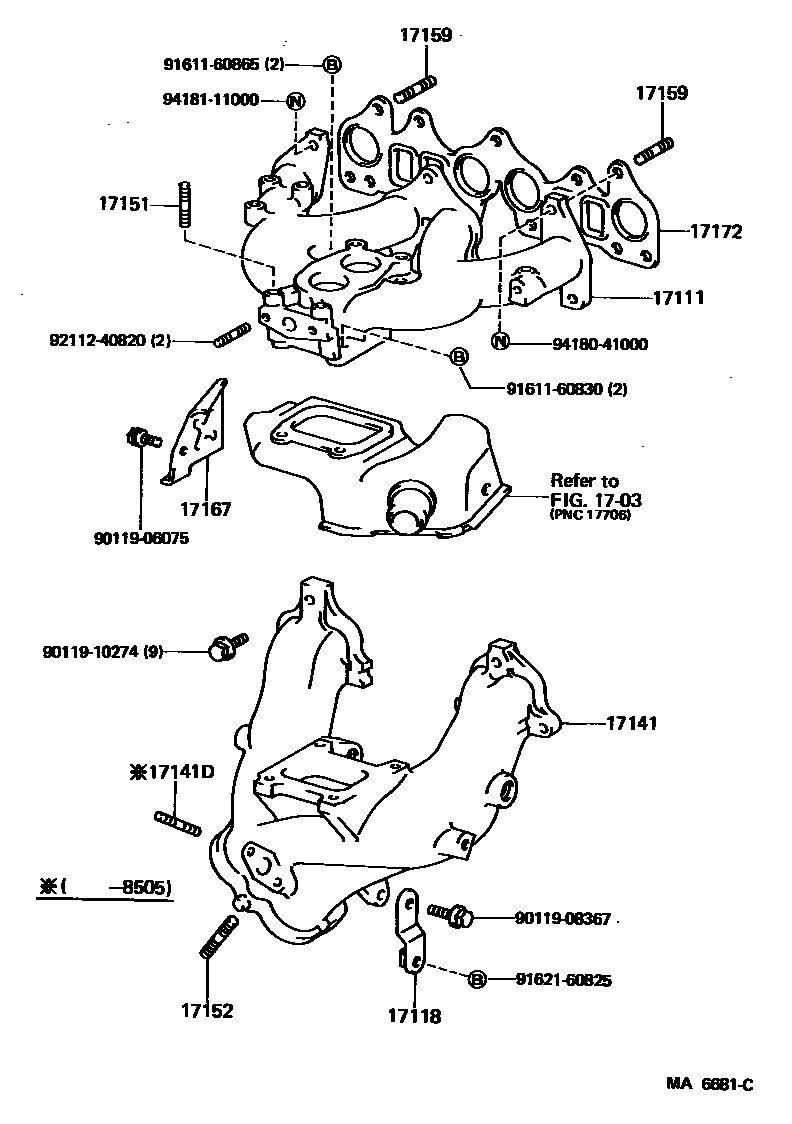

Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17110B | Fitting (for vent hose to manifold) | 90405-10009 |
| 17111 | Intake Manifold | 17101-16010 · 17111-15021 · 17111-15040 |
| 17111A | No. 1 screw plug | 96411-43500 |
| 17118 | Manifold stays | 17118-15030 · 17125-16020 |
| 17141 | exhaust manifold | 17141-16040 · 17141-16060 · 17141-16061 · 17141-16110 · 17141-16111 |
| 17141C | Headed straight thread plug | 90341-18006 |
| 17141D | Studs (for oxygen sensor) | 90116-08128 · 90116-08168 |
| 17148B | EGR air intake gasket | 90430-18009 |
| 17151 | Studs (for manifold to carburetor) | 90116-08232 · 92112-40832 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08218 · 90116-10037 · 92112-61032 · 92122-60850 · 92122-61028 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-15030 · 17167-16020 · 17167-16021 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-16010 |
| 17172 | Gasket (manifold to cylinder head) | 17172-15010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-16010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-16010 · 17177-16011 · 17177-16012 |
| 17179A | No. 2 intake manifold gasket | 17171-16010 · 17171-16011 · 17171-16012 |
| 17300 | Intake control valve assembly | 17300-16010 · 17300-16011 |
