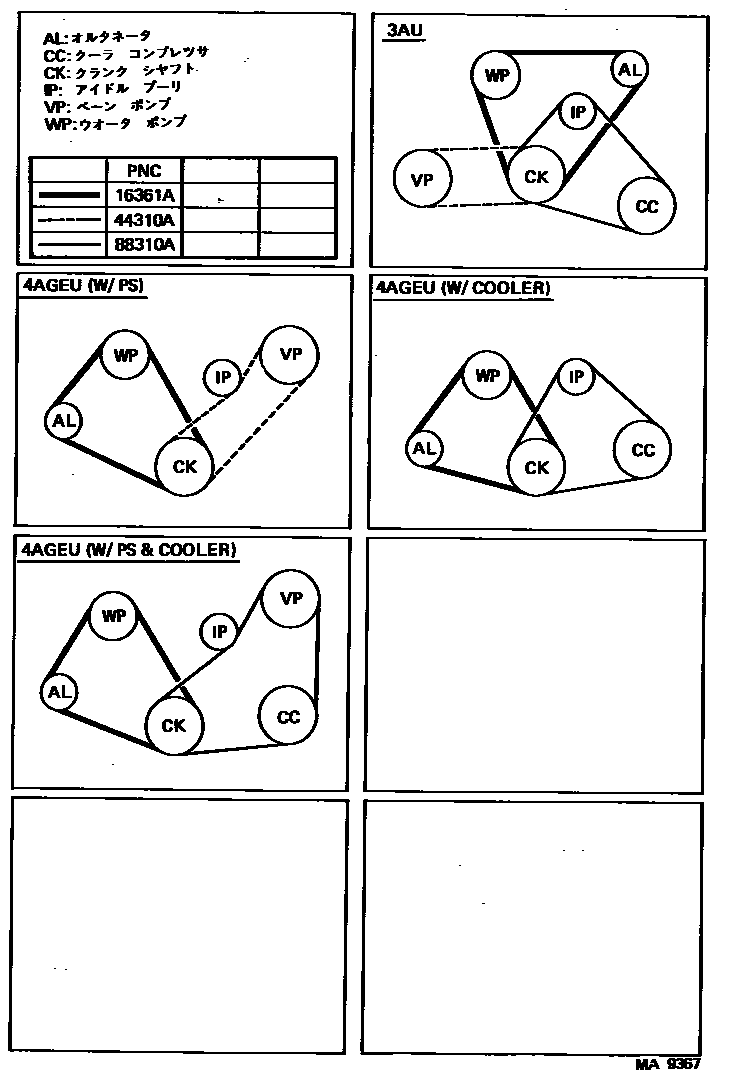

Toyota COROLLA V-Belt — Figure 1605
Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02148 · 99321-01000 · 99321-50975 · 99321-51000 · 99365-50830 |
| 44310A | V-belt (for vane pump) | 99332-00805 · 99365-50910 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 90916-02189 · 99322-00860 · 99365-01040 · 99365-50800 |
