Toyota COROLLA Camshaft & Valve — Figure 1302

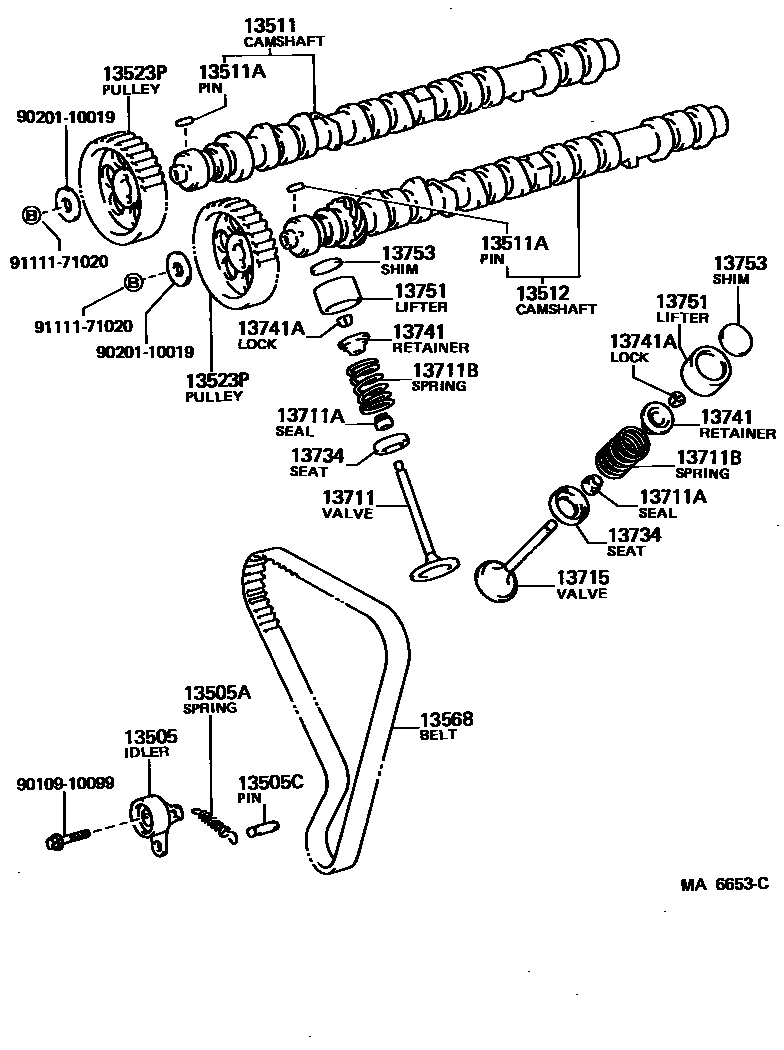

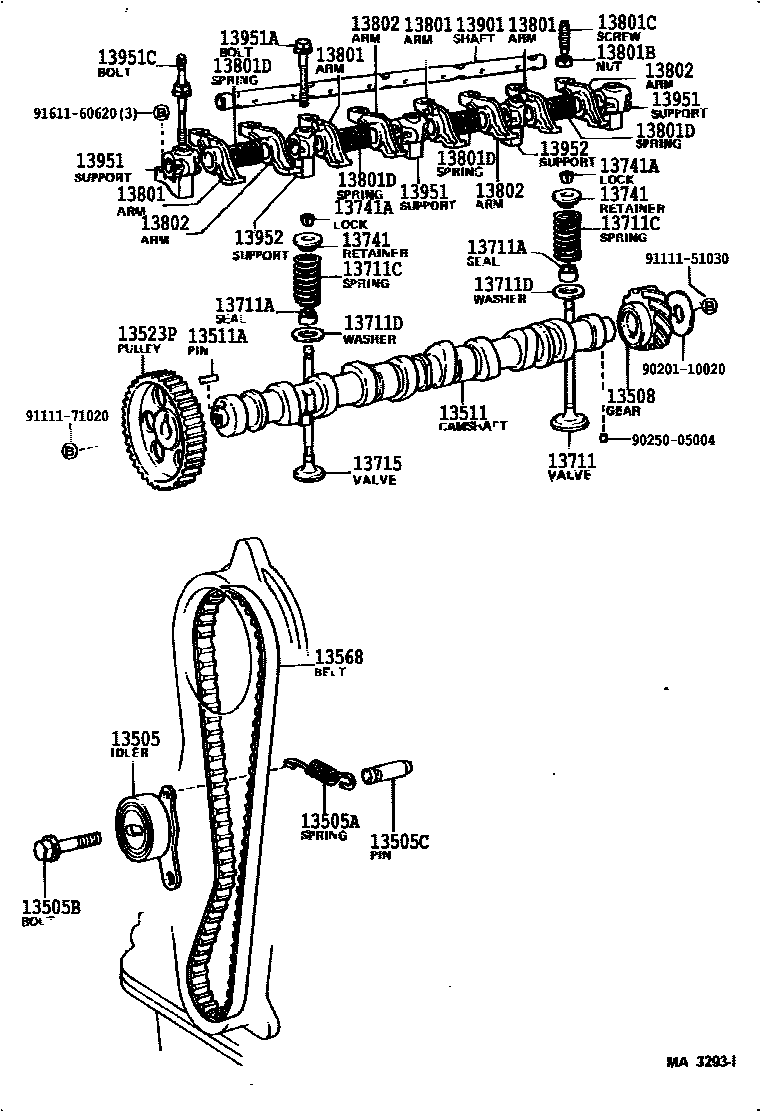

Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-15040 · 13505-15041 · 13505-16020 |
| 13505A | Tension spring (for idler pulley) | 90506-14016 · 90507-18017 · 90507-20010 |
| 13505B | Flange bolts (for idler gear) | 91511-61040 |
| 13505C | Pin (for idler tension spring) | 90249-06006 |
| 13508 | Distributor driving gear sub-assembly | 13508-15010 |
| 13511 | camshaft | 13501-16010 · 13511-14010 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05121 |
| 13512 | Camshaft No. 2 | 13502-16010 |
| 13523B | Flat washer (for timing gear) | 90201-10019 |
| 13523P | Camshaft timing pulley | 13523-14010 · 13523-16010 |
| 13568 | timing belt | 13568-15010 · 13568-16010 |
| 13711 | intake valve | 13711-15010 · 13711-16010 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02038 · 90913-02066 |
| 13711B | Compression spring (for inner side) | 90501-33001 |
| 13711C | Compression spring (for outside) | 90501-42004 |
| 13711D | Flat washer (for valve spring seat) | 90201-21002 |
| 13715 | exhaust valve | 13715-15010 · 13715-16010 |
| 13734 | Valve spring seat | 13734-16010 |
| 13741 | Valve spring seat ring | 13741-15010 · 13741-16010 |
| 13741A | Valve spring seat lock plate | 90913-03017 · 90913-03021 |
| 13751 | valve lifter | 13751-16010 |
| 13753 | valve adjustment gasket | 13753-16020 · 13753-16040 · 13753-16060 · 13753-16080 · 13753-16100 · 13753-16120 · 13753-16140 · 13753-16160 · 13753-16180 · 13753-16200 · 13753-16220 · 13753-16240 · 13753-16260 · 13753-16280 · 13753-16300 · 13753-16320 · 13753-16340 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13811-15010 |
| 13801B | Hex nut (for valve adjustment) | 90170-07001 |
| 13801C | valve adjustment screw | 90913-05018 |
| 13801D | Compression spring (for rocker arm) | 90501-14025 |
| 13802 | No. 2 valve rocker arm sub-assembly | 13812-15010 |
| 13901 | No. 1 valve rocker arm shaft sub-assembly | 13901-15010 |
| 13951 | No. 1 valve rocker arm bracket | 13951-15010 |
| 13951A | Bolts (for rocker arm bracket assembly) | 90109-08029 |
| 13951C | Stud bolts (for rocker arm bracket) | 90109-08028 |
| 13952 | No. 2 valve rocker arm bracket | 13952-15010 |
