Toyota COROLLA 后视镜 — Figure 8701

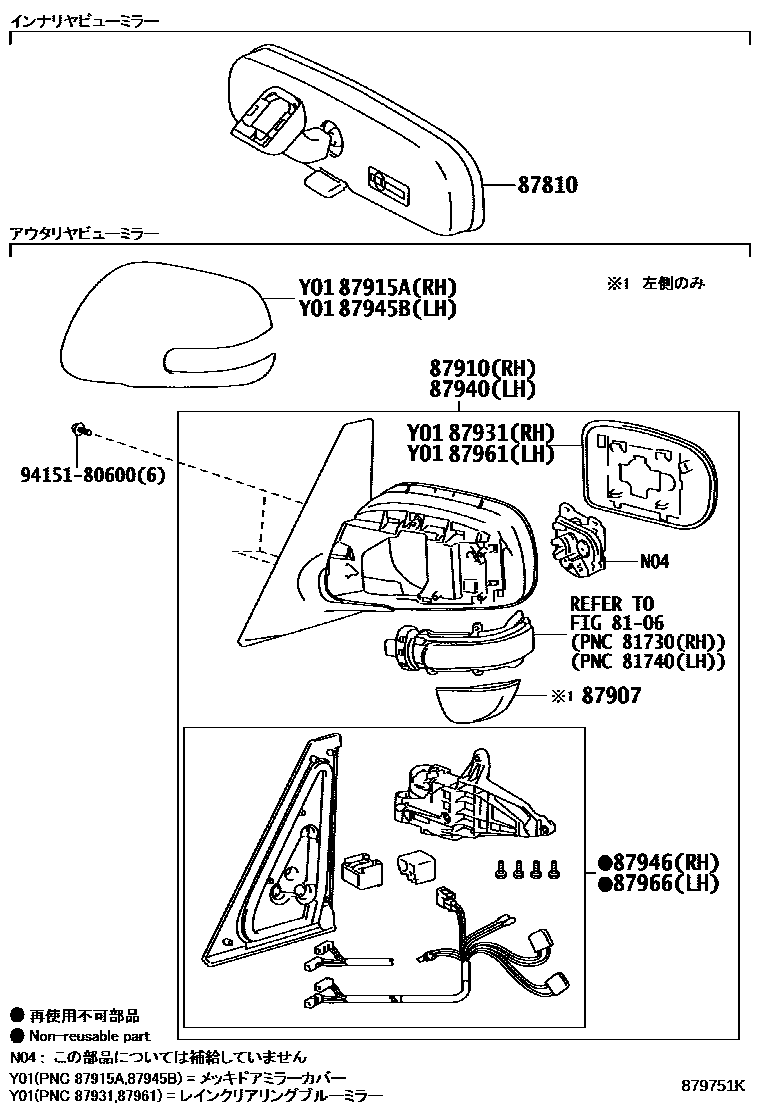

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-52041 |
| 87907 | Exterior lower view mirror sub-assembly | 87907-12010 |
| 87910 | Right exterior rearview mirror assembly | 87910-12D40 · 87910-12G80 |
| 87931 | Right exterior rearview mirror | 87931-44340 · 87931-44350 |
| 87940 | Left exterior rearview mirror assembly | 87940-12D60 · 87940-12G80 |
| 87946 | Right exterior rearview mirror retractor | 87946-12D40 · 87946-12G80 |
| 87961 | Left exterior rearview mirror | 87961-22A20 · 87961-44360 |
| 87966 | Left exterior rearview mirror retractor | 87966-12D60 · 87966-12G80 |
