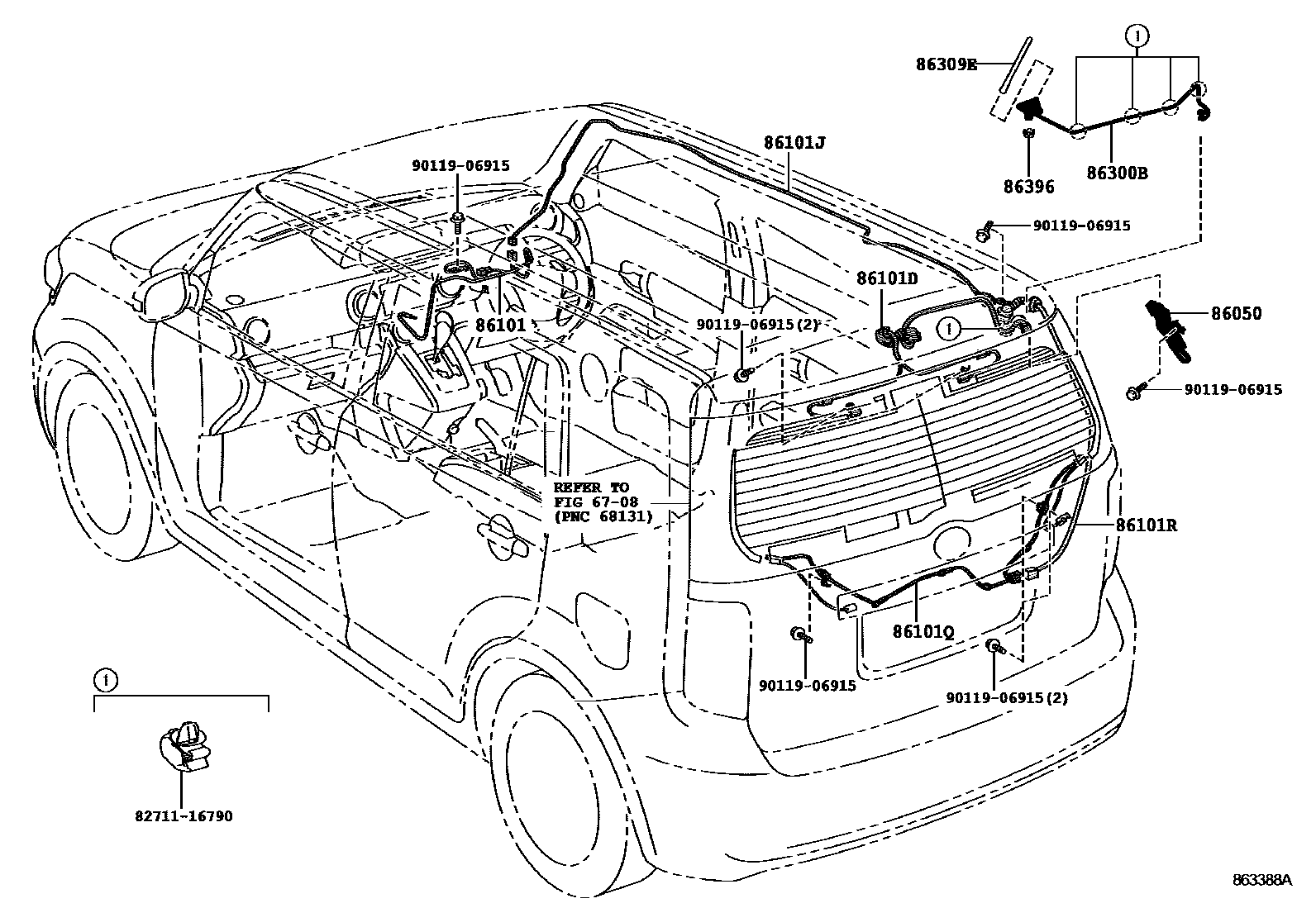

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86050 | Monitor antenna assembly | 86050-12070 |
| 86101 | Antenna wire sub-assembly | 86101-12720 · 86101-12730 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-12670 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-12700 · 86101-12710 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-12680 |
| 86101R | No. 5 antenna wire sub-assembly | 86101-12690 |
| 86300B | Amplifier antenna assembly | 86300-12A10 |
| 86309E | Roof antenna sub-assembly | 86309-20310 |
| 86396 | Antenna nut | 86396-20040 |
