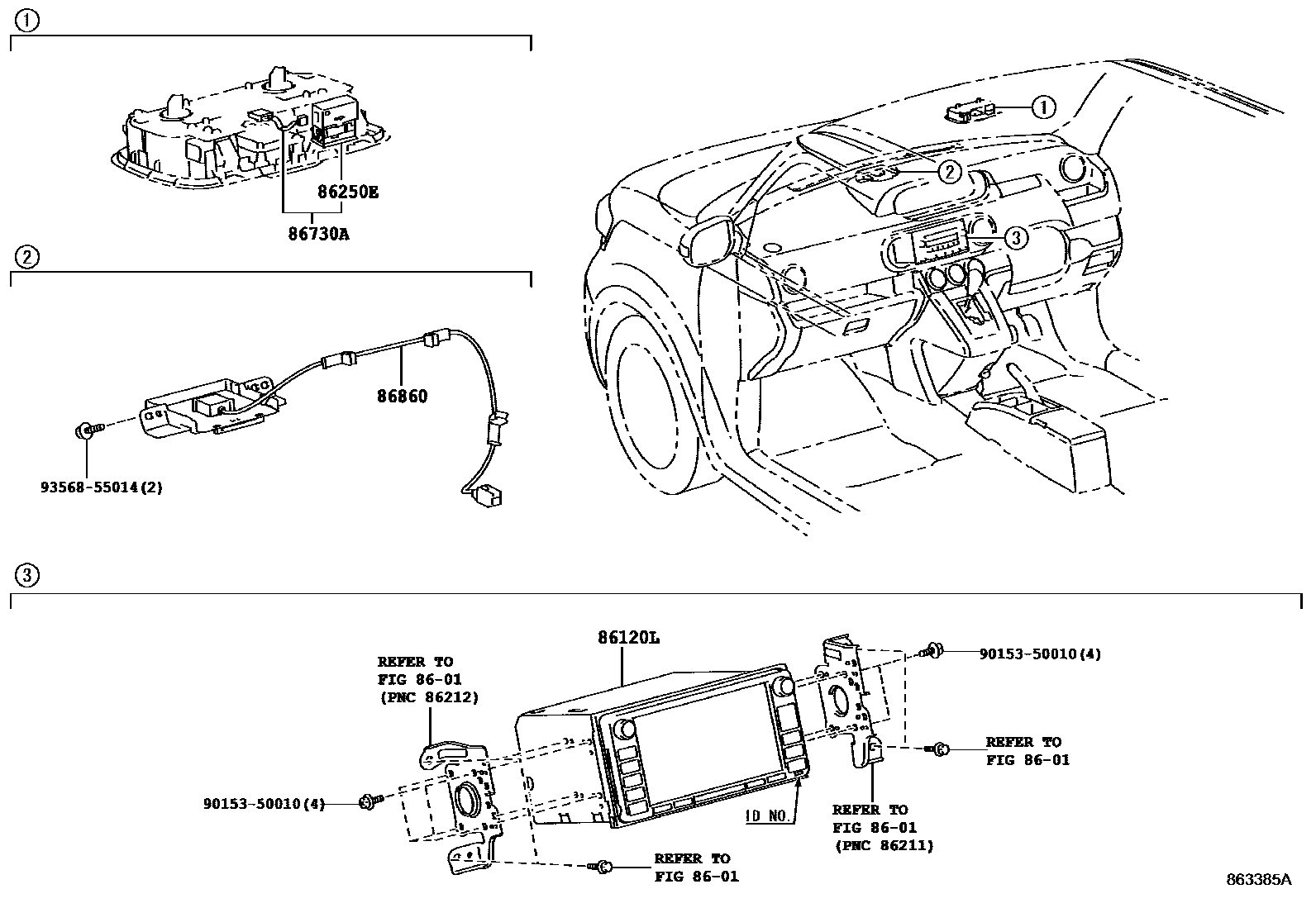

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86100-12A20 · 86100-12A21 · 86100-12A22 · 86100-12A23 · 86100-12A24 · 86100-12A30 · 86100-12A31 · 86100-12A32 · 86100-12A33 · 86100-12A34 |
| 86250E | amplifier loudspeaker assembly | 86250-52020 · 86250-52030 |
| 86730A | Telephone amplifier assembly | 86730-12050 · 86730-52020 |
| 86860 | Navigation antenna assembly | 86860-12090 · 86870-12020 |
