Toyota COROLLA 扬声器 — Figure 8602

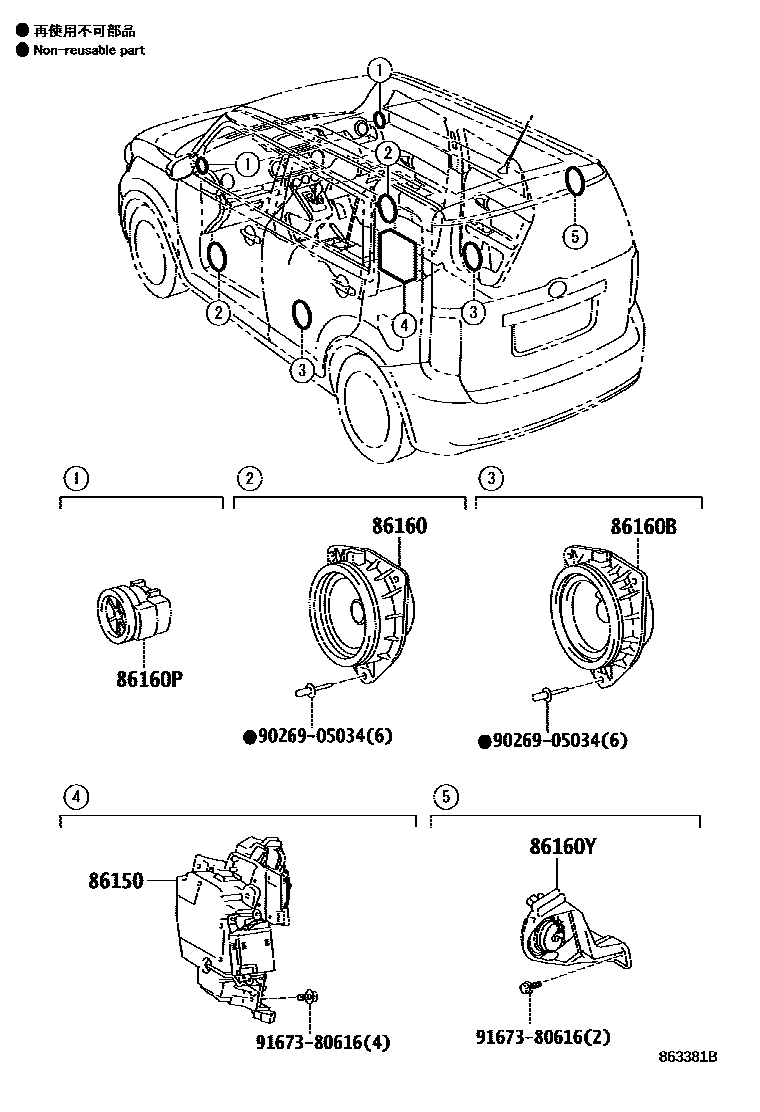

Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-12200 · 86150-12201 |
| 86160 | No. 1 front speaker assembly | 86160-2B580 · 86160-33620 · 86160-52330 · 86160-52331 |
| 86160B | Rear speaker assembly | 86160-13080 · 86160-52220 |
| 86160P | No. 2 front speaker assembly | 86160-52340 · 86160-68010 |
| 86160Y | No. 2 rear speaker assembly | 86160-1A190 |
