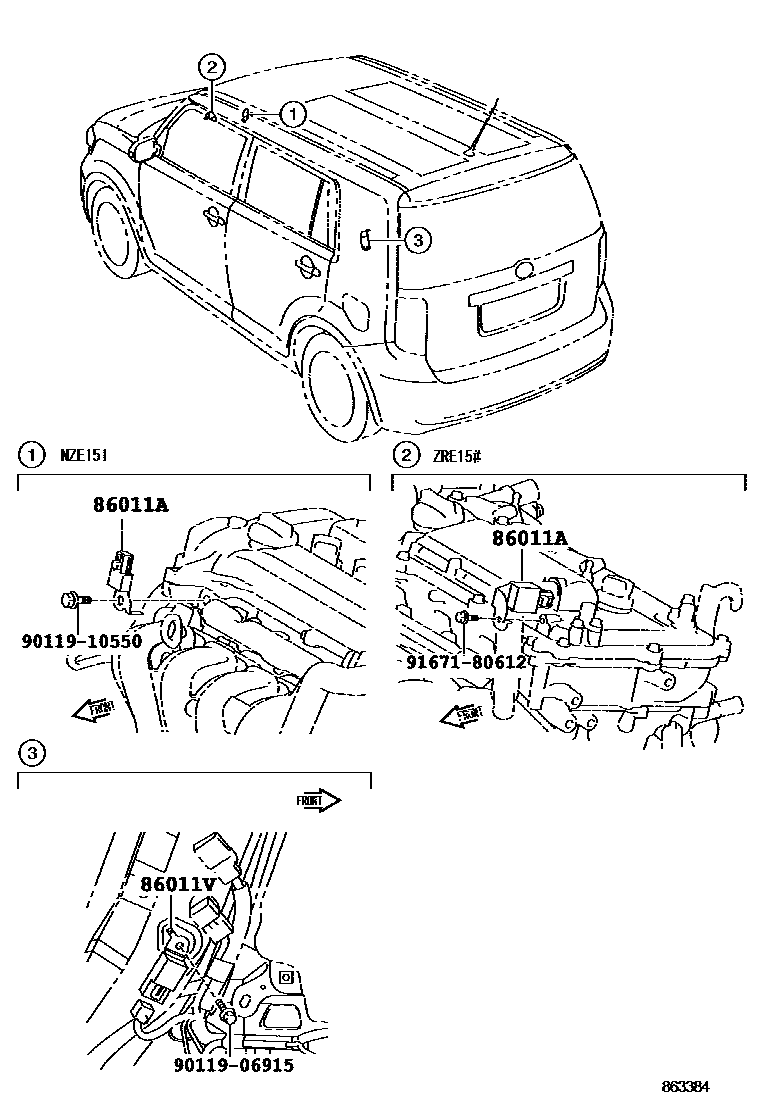

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04141 · 90980-04194 |
| 86011V | radio settings phase modulator | 90980-04179 |
| 86120 | Radio assembly | 86120-1A220 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-12020 |
| 86211 | No. 1 radio bracket | 86211-12410 |
| 86212 | No. 2 radio bracket | 86212-12400 |
