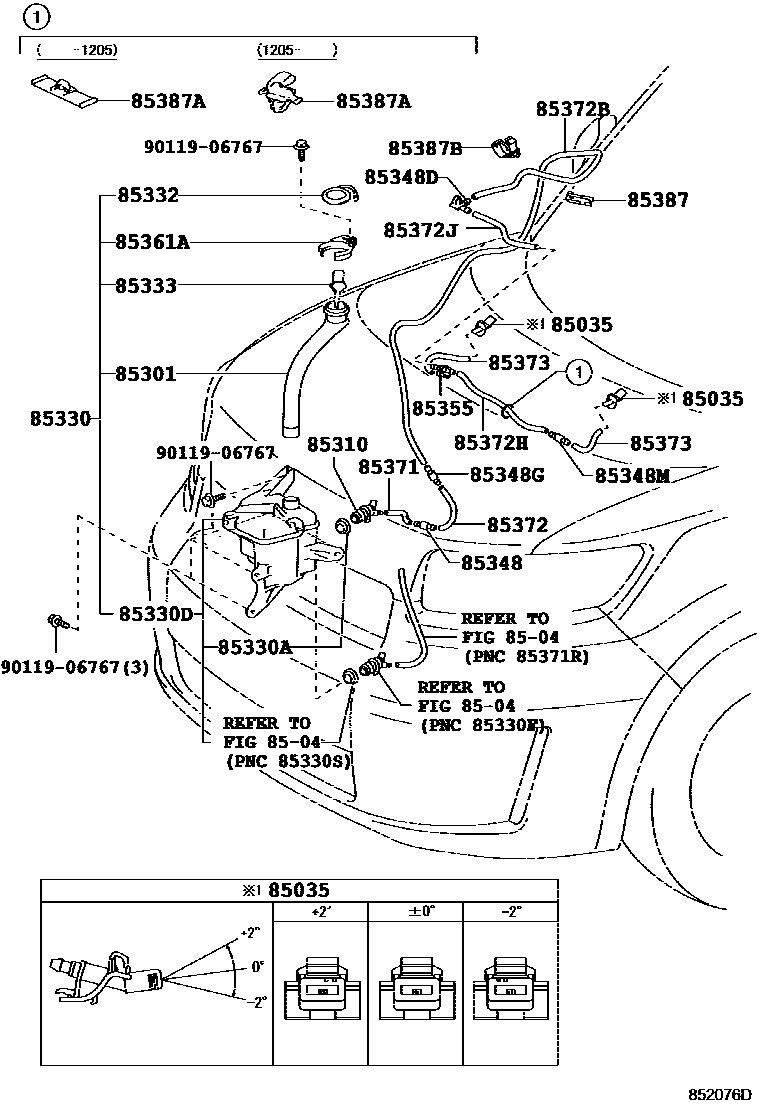

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12300 · 85381-12310 · 85381-12320 |
| 85301 | Cleaner water inlet sub-assembly | 85319-12630 |
| 85310 | Windshield washer motor and pump assembly | 85330-21010 |
| 85330 | Windshield washer fluid tank assembly | 85315-12620 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 |
| 85330D | Cleaning fluid tank assembly | 85315-12530 |
| 85332 | Windshield washer fluid tank cap | 85316-48060 |
| 85333 | Windshield washer fluid tank filter | 85312-21020 |
| 85348 | Windshield washer hose connector No. 1 | 85375-10260 |
| 85348D | No. 1 windshield washer elbow joint | 85376-10250 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 |
| 85348M | No. 3 windshield washer hose connector | 85349-89122 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85361A | Windshield washer bracket No. 1 | 85337-48060 |
| 85387 | Clip No. 1 (for windshield washer) | 85387-12840 |
| 85387A | Cleaner clip No. 2 | 82711-1E020 · 85371-12040 |
| 85387B | No. 3 cleaner clip | 82711-3F230 |
