Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

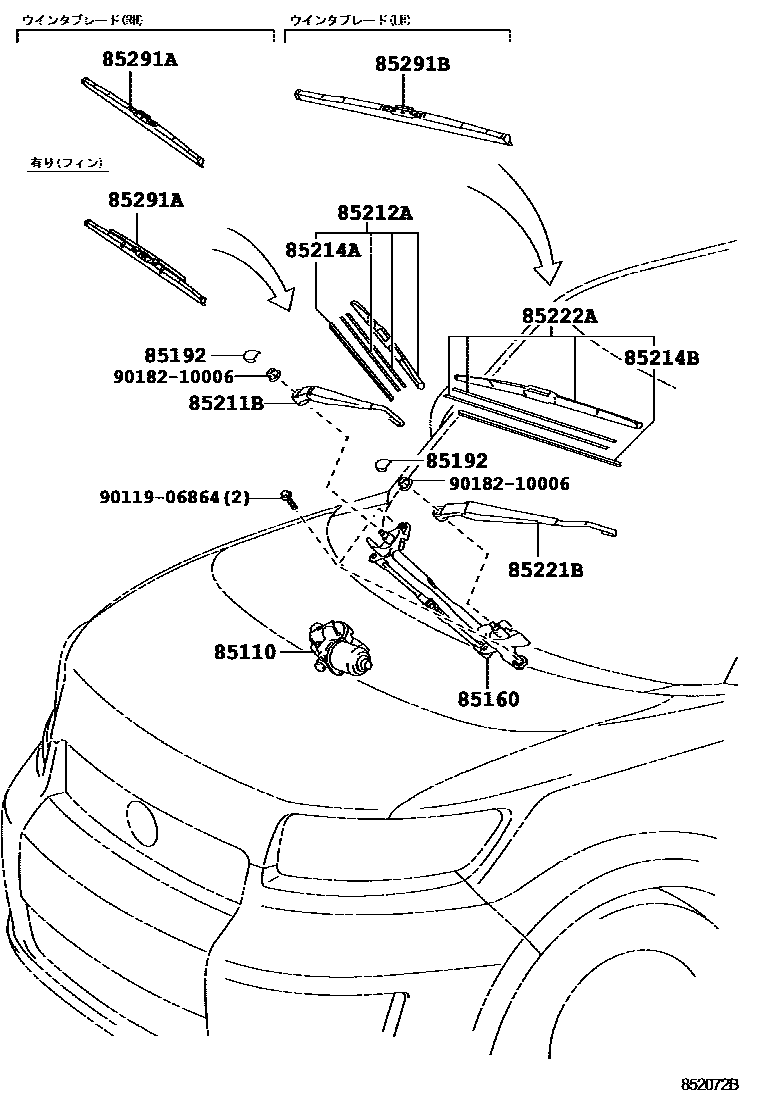

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-52261 · 85110-52270 · 85110-60370 |
| 85160 | Windshield wiper connecting rod assembly | 85150-12B00 |
| 85192 | windshield wiper arm cover | 85292-13010 |
| 85211B | Right front wiper arm | 85211-12590 |
| 85212A | Right front wiper blade | 85212-12460 |
| 85214A | Right wiper rubber strip | 85214-53080 |
| 85214B | Left wiper rubber strip | 85214-53090 |
| 85221B | Left front wiper arm | 85221-12530 |
| 85222A | Left front wiper blade | 85222-12880 |
| 85291A | Right front wiper blade for winter use | 85291-35060 · 85291-53050 |
| 85291B | Left front wiper blade for winter use | 85291-33060 |
