Toyota COROLLA 空气囊 — Figure 8421

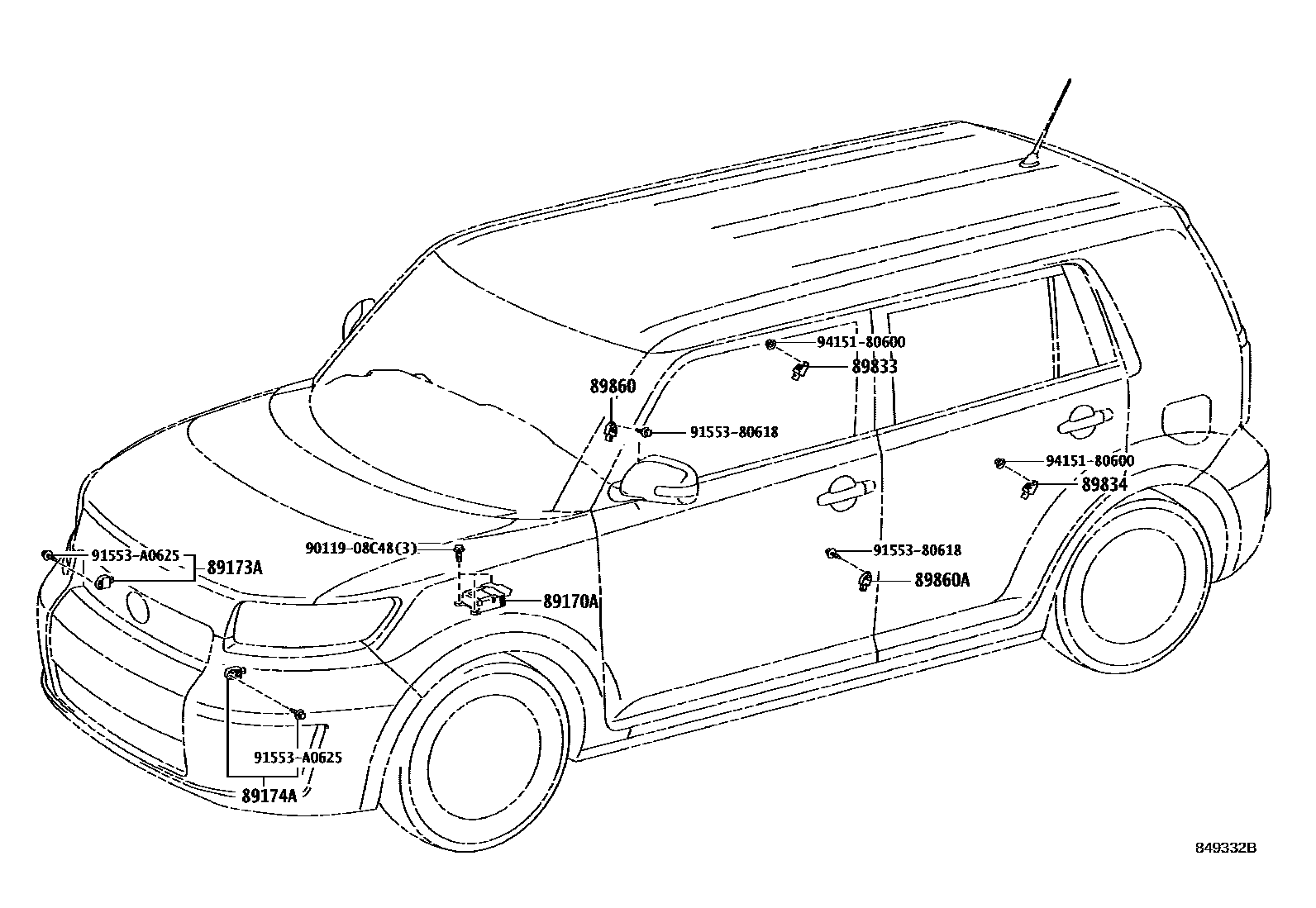

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-12570 · 89170-12660 · 89170-12A20 |
| 89173A | Right front air bag sensor | 89173-49375 · 89173-49465 · 89173-79025 |
| 89174A | Left front air bag sensor | 89173-49375 · 89173-49465 · 89173-79025 |
| 89833 | Right rear air bag sensor | 89831-12020 · 89831-75020 |
| 89834 | Left rear air bag sensor | 89831-12020 · 89831-75020 |
| 89860 | Right side airbag sensor assembly | 89831-28020 · 89831-42010 · 89831-75010 |
| 89860A | Left side air bag sensor assembly | 89831-28020 · 89831-42010 · 89831-75010 |
