Toyota COROLLA ABS 和 VSC — Figure 8414

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 2 images and 9 PNC and OE references.

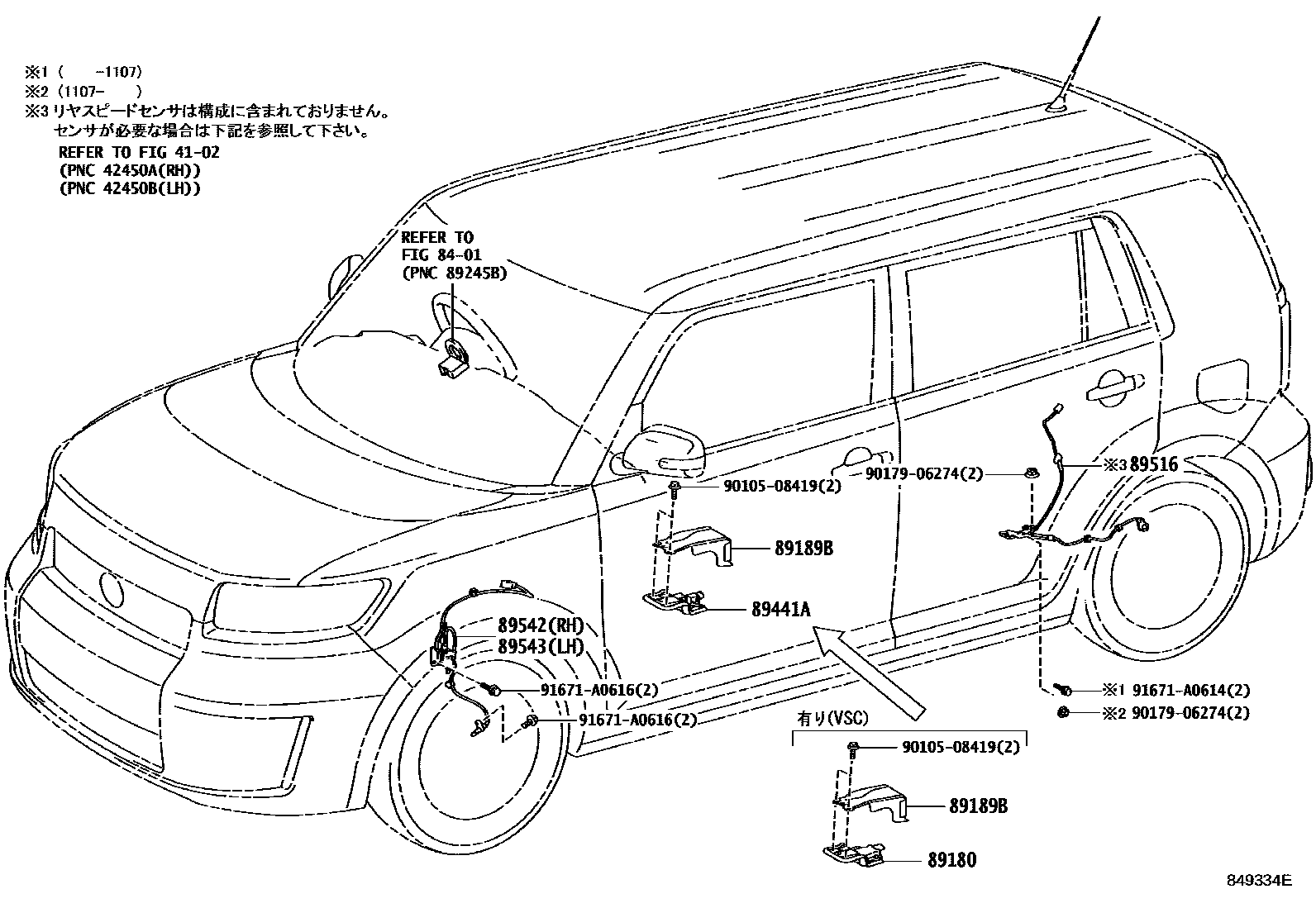

Toyota COROLLA ABS 和 VSC EPC diagram — 849334E
ABS 和 VSC — 849334E (200710 – 999999)

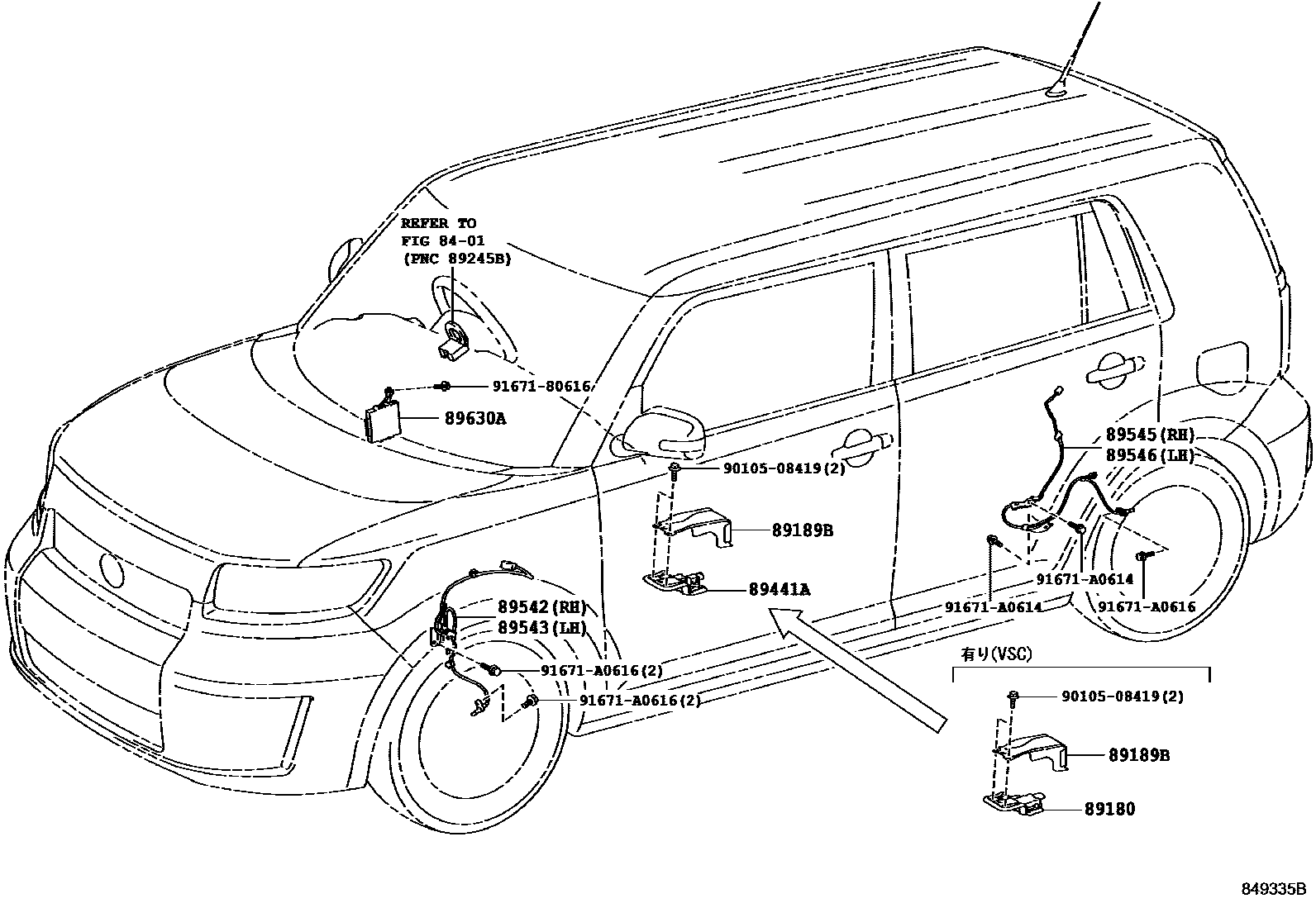

Toyota COROLLA ABS 和 VSC EPC diagram — 849335B
ABS 和 VSC — 849335B (200710 – 999999)

PNC and OE references

PNCPart nameOE numbers
89180Yaw rate sensor assembly89180-12080 · 89180-12140
89189BYaw rate sensor bracket89189-12091
89441Adeceleration sensor89440-12100
89516Anti-skid control sensor wiring harness89516-12051 · 89516-12061 · 89516-12070 · 89516-12080
89542Right front wheel speed sensor89542-12080
89543Left front wheel speed sensor89543-12080
89545Right rear wheel speed sensor89545-12090
89546Left rear wheel speed sensor89546-12090
89630AFour-wheel drive ECU assembly89630-12040
