Toyota COROLLA 电子燃油喷射系统 — Figure 8404

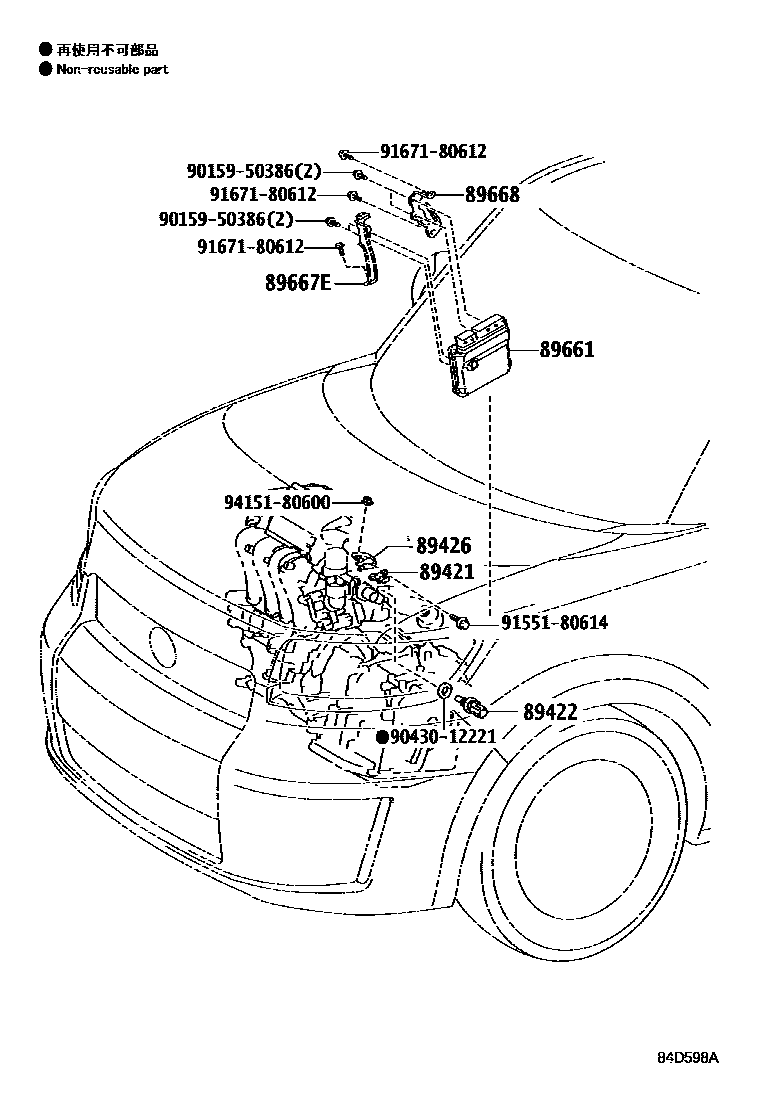

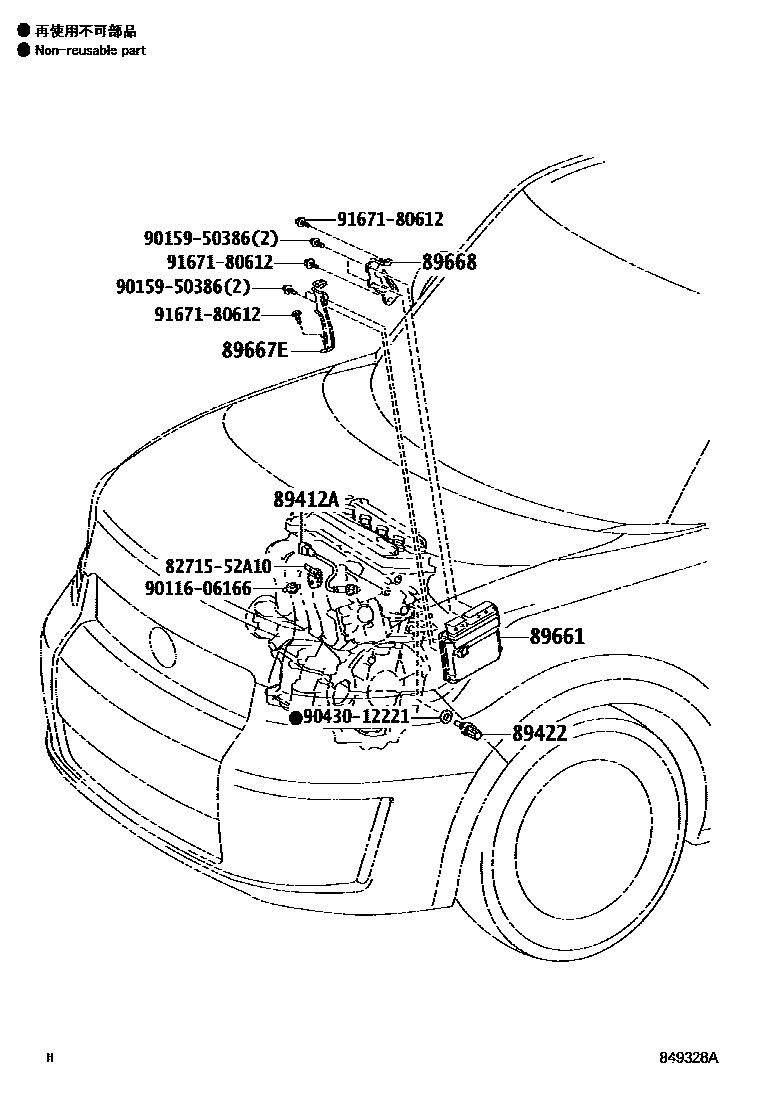

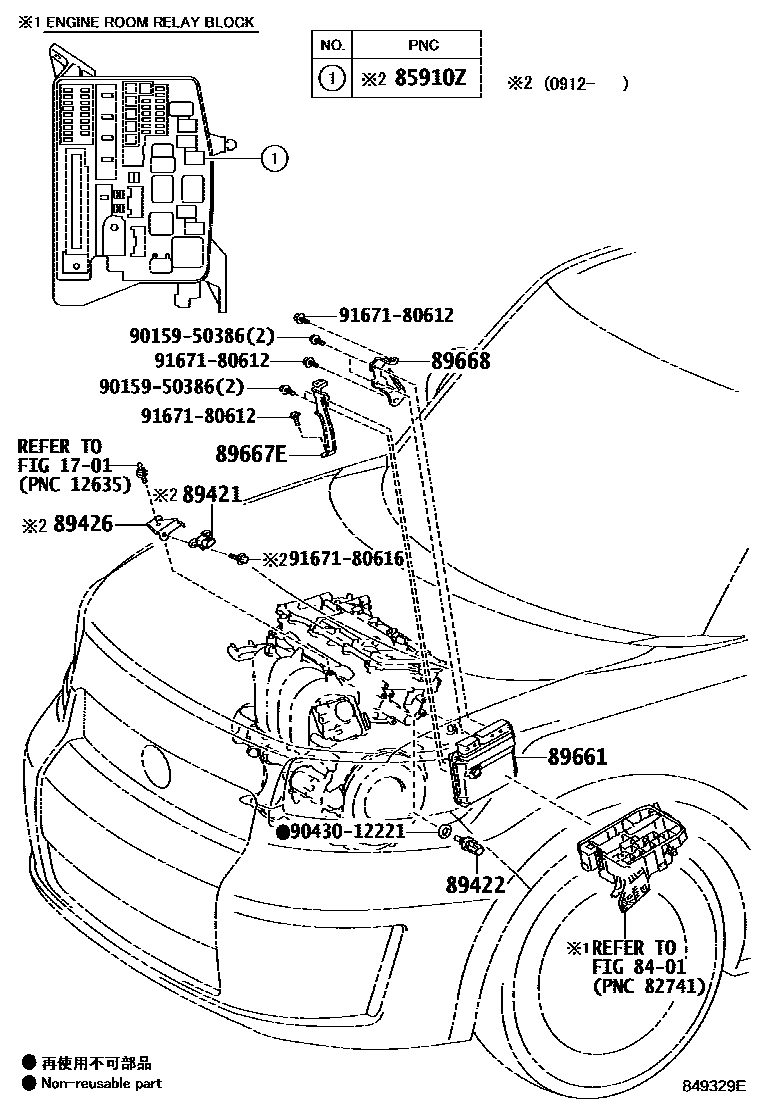

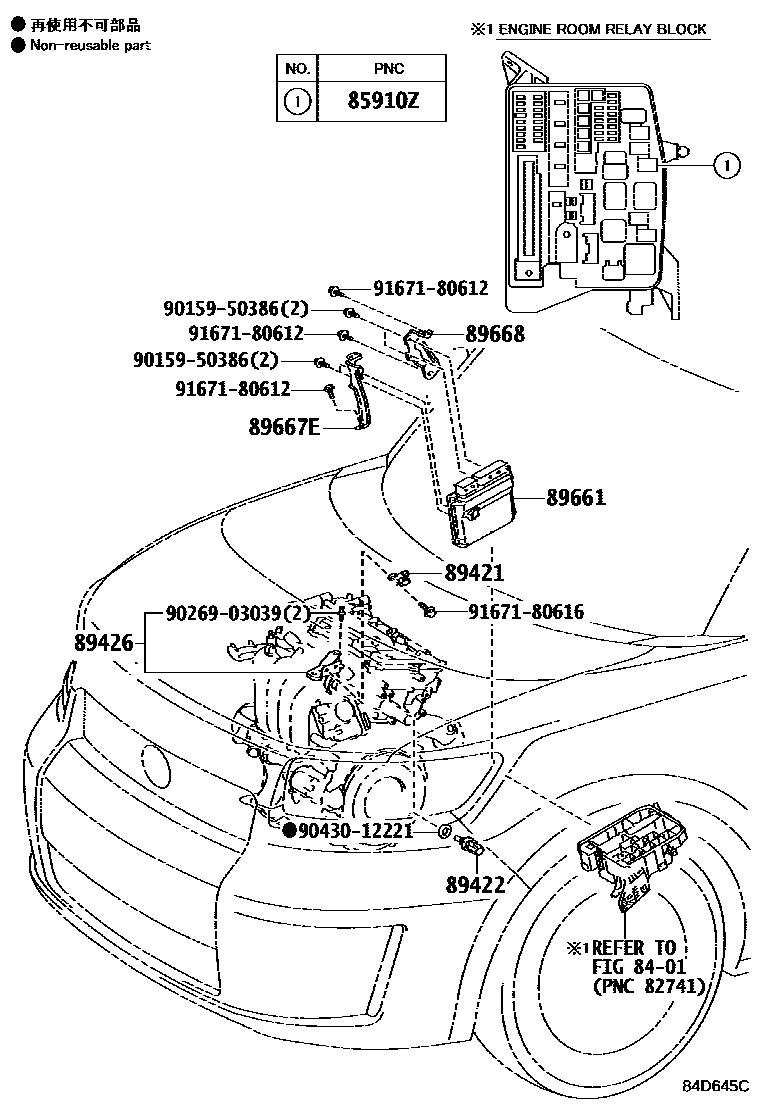

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 4 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910Z | Injection relay (for EFI) | 90987-02027 |
| 89412A | E.G.R exhaust gas temperature sensor | 89412-35020 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-26030 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89426 | Vacuum sensor holder | 89426-12260 · 89426-13020 · 89426-28080 |
| 89661 | Engine control ECU | 89661-12F30 · 89661-12F40 · 89661-12F41 · 89661-12F50 · 89661-12F51 · 89661-12M60 · 89661-12M61 · 89661-12M70 · 89661-12M71 · 89661-12M90 · 89661-12M91 · 89661-12P50 · 89661-12P60 · 89661-12P70 |
| 89667E | No. 1 engine control ECU bracket | 89667-12210 |
| 89668 | No. 2 engine control ECU bracket | 89668-12120 |
