Toyota COROLLA 线束和卡夹 — Figure 8202

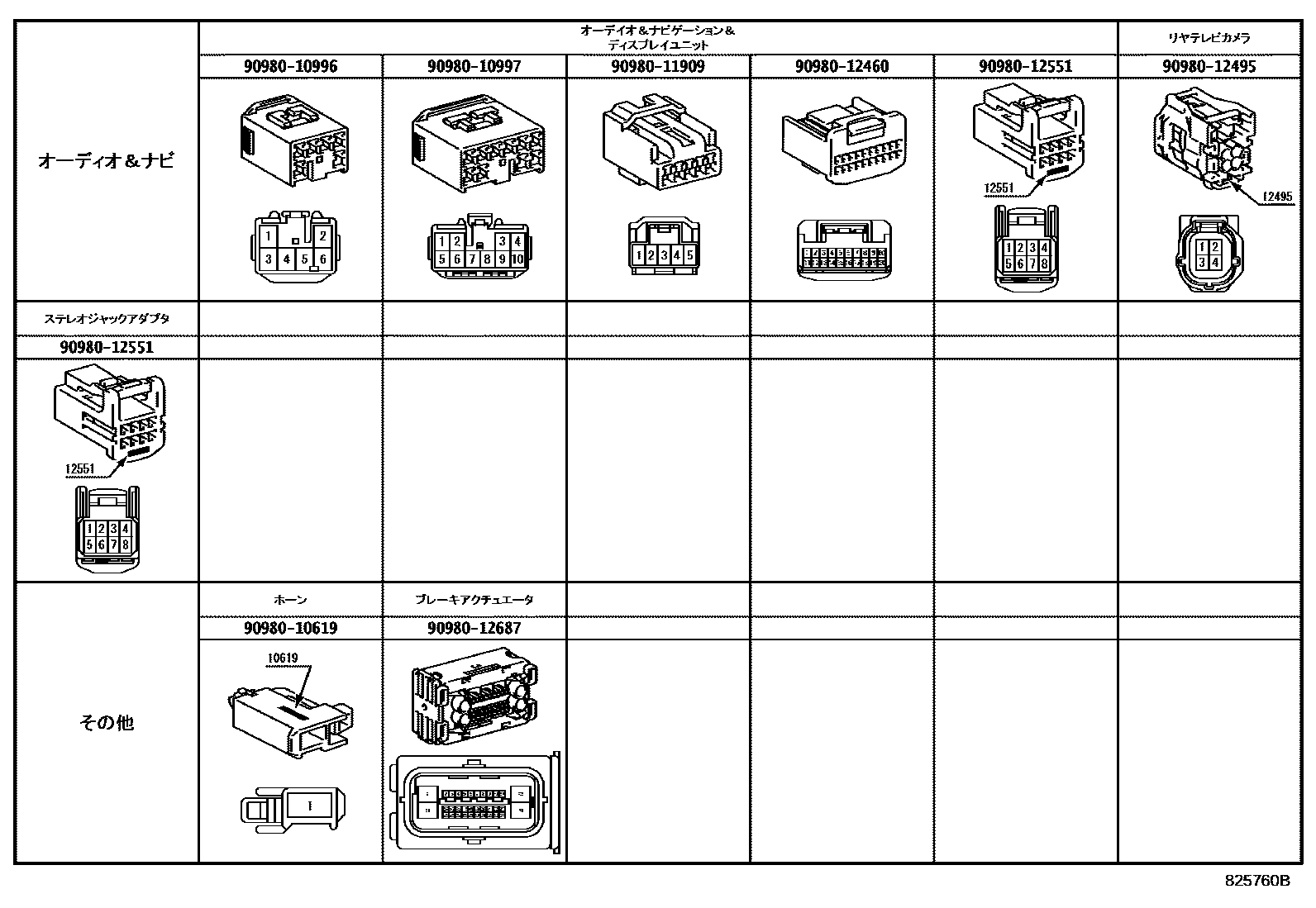

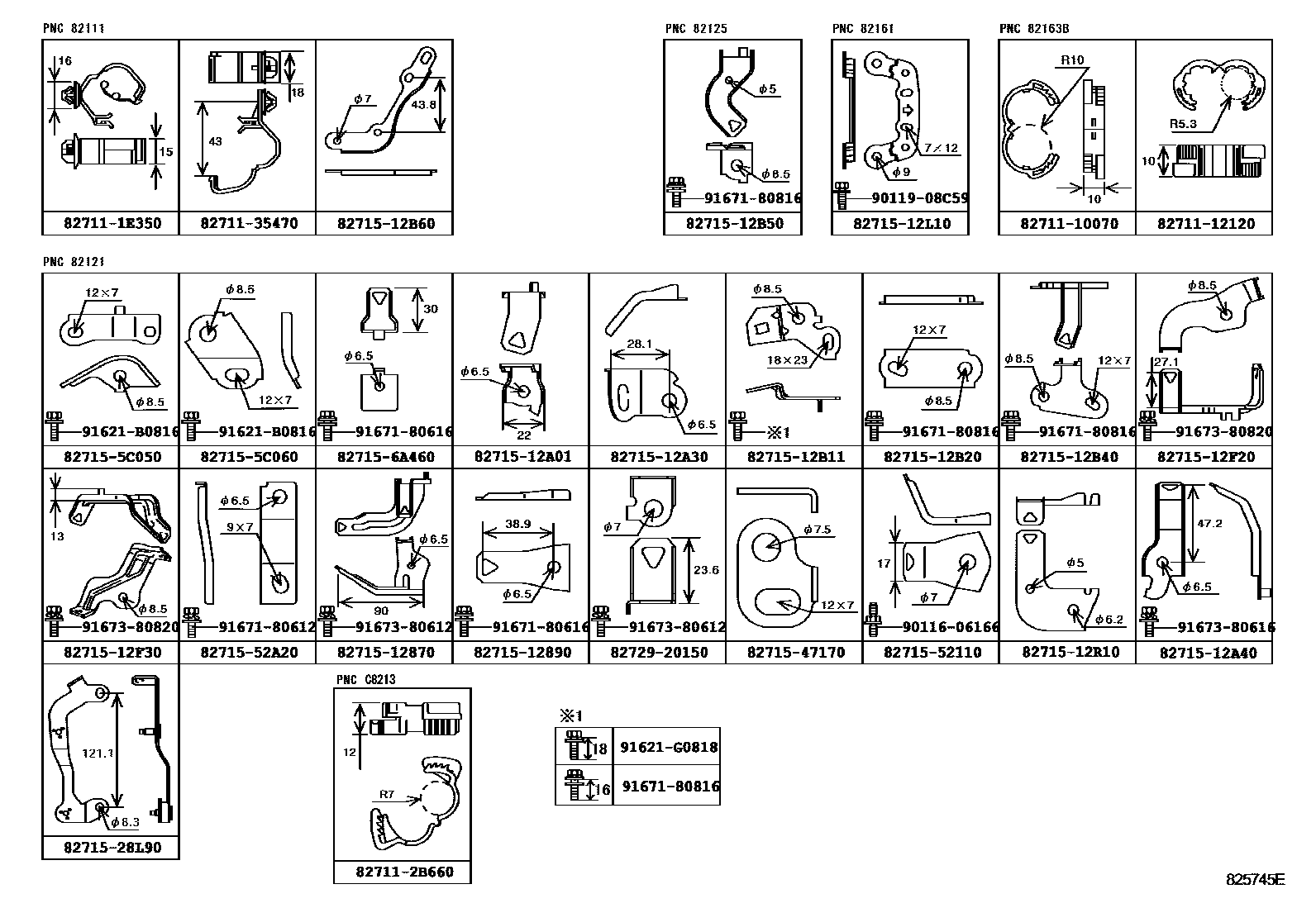

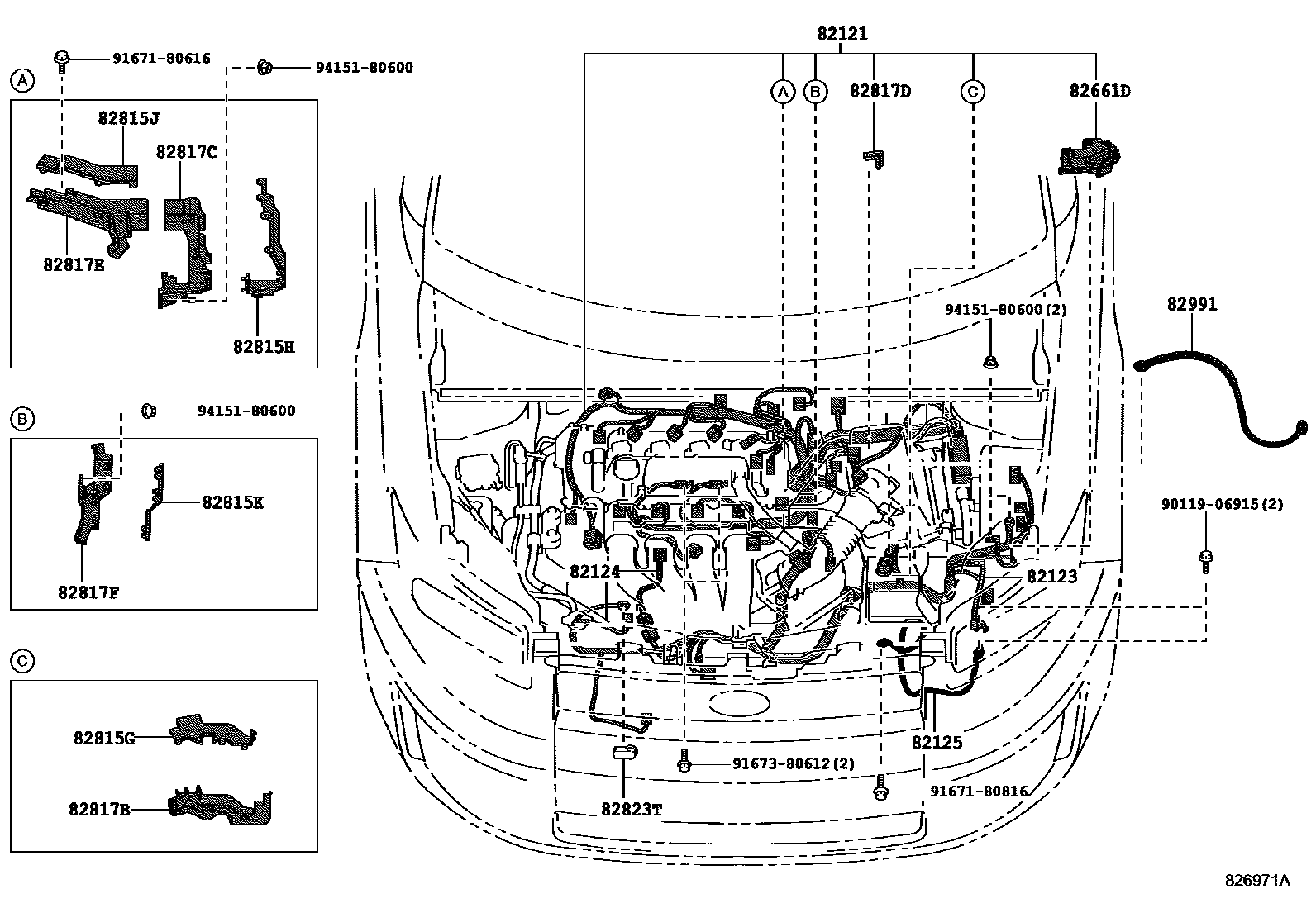

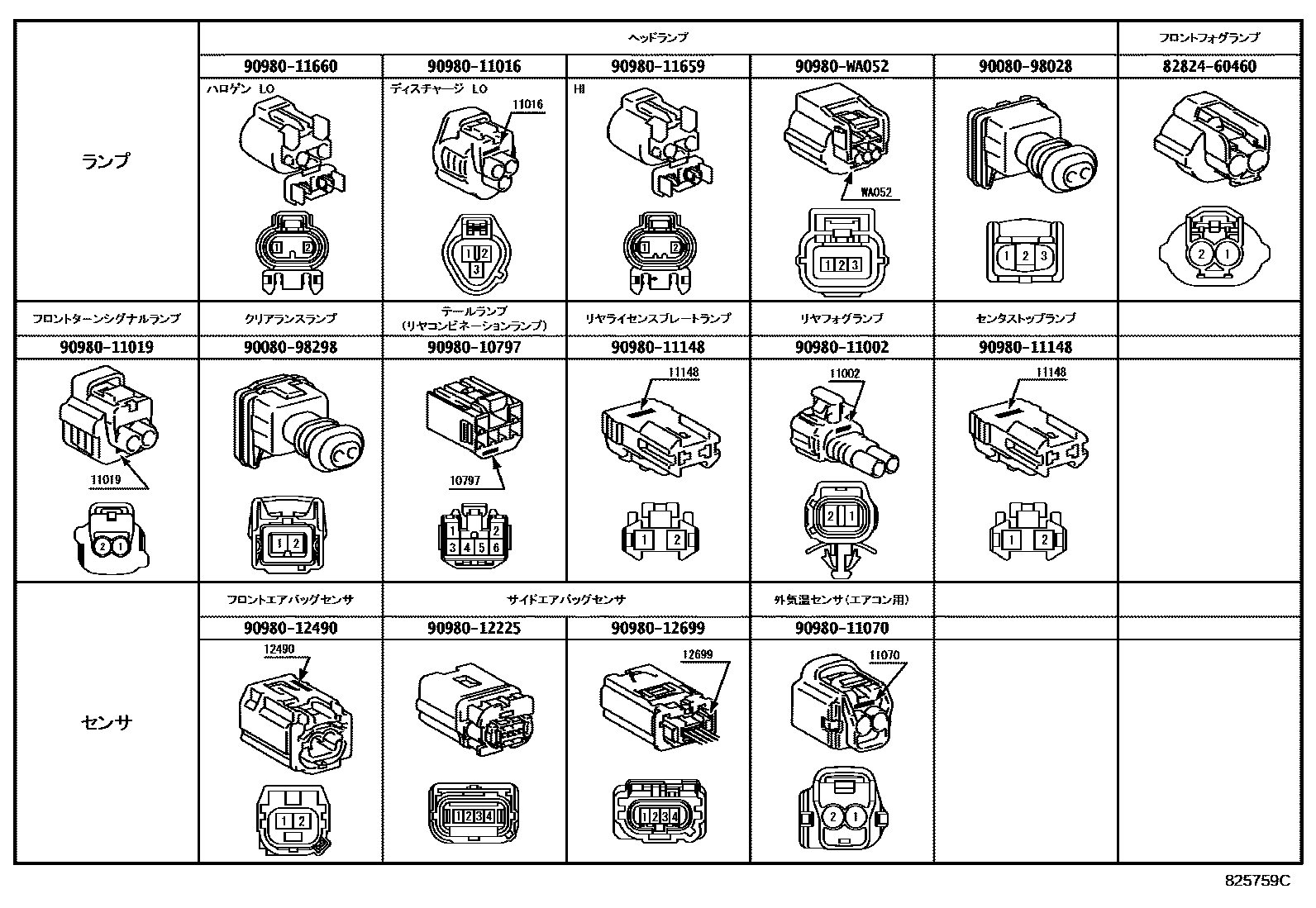

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 11 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

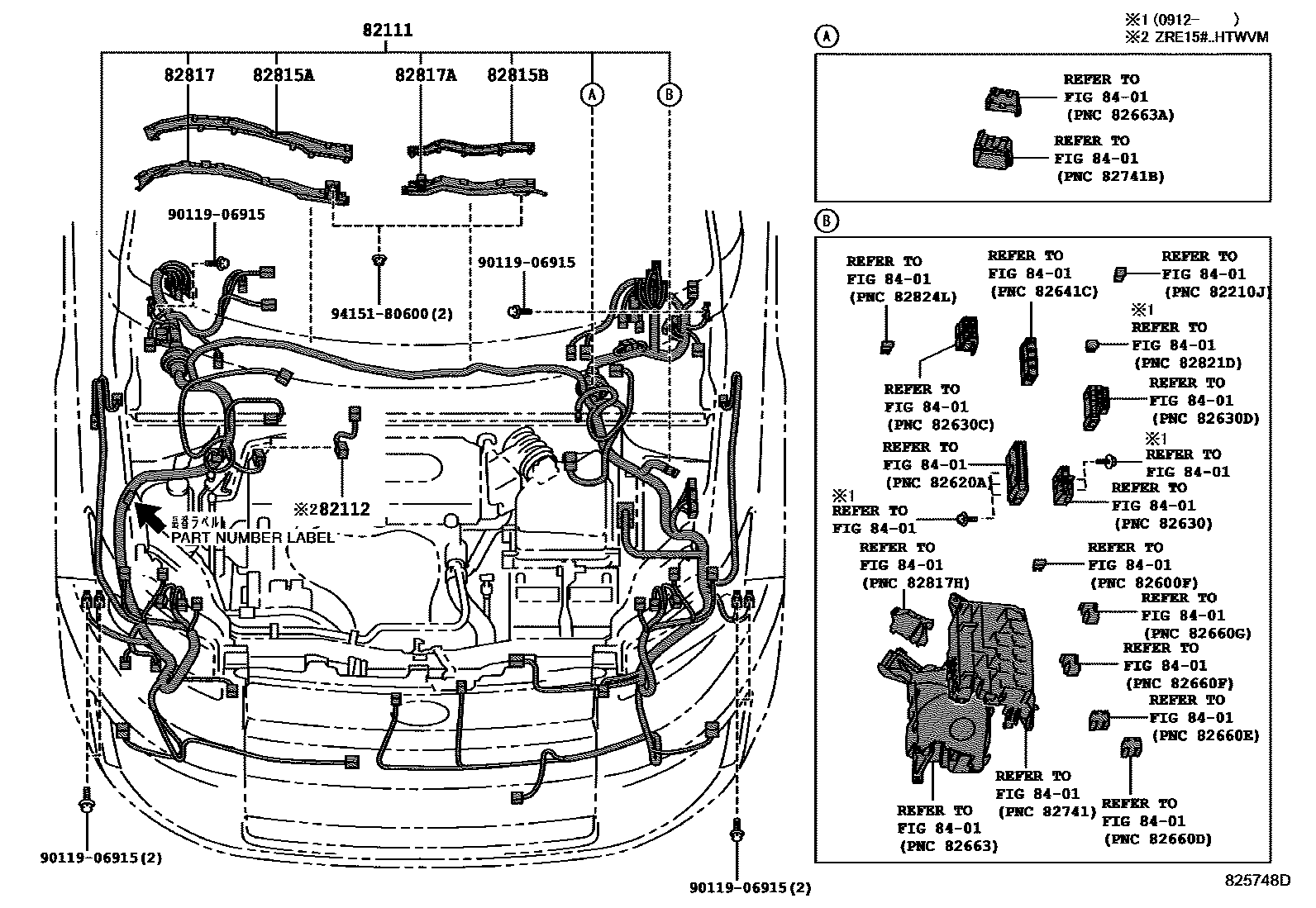

| 82111 | Engine room main wiring harness | 82111-1AL70 · 82111-1AL80 · 82111-1AN90 · 82111-1AP00 · 82111-1AP01 · 82111-1AP02 · 82111-1AP03 · 82111-1AP10 · 82111-1AP11 · 82111-1AP12 · 82111-1AP13 · 82111-1AP20 · 82111-1AP21 · 82111-1AP22 · 82111-1AP23 · 82111-1AP30 · 82111-1AP31 · 82111-1AP32 · 82111-1AP33 · 82111-1AP40 · 82111-1AP41 · 82111-1AP50 · 82111-1AP51 · 82111-1AP60 · 82111-1AP70 · 82111-1AP80 · 82111-1AP81 · 82111-1AP90 · 82111-1AP91 · 82111-1AQ00 · 82111-1AQ01 · 82111-1AQ02 · 82111-1AQ03 · 82111-1AQ10 · 82111-1AQ11 · 82111-1AQ12 · 82111-1AQ13 |
| 82112 | Engine room wiring harness No. 2 | 82112-12190 |

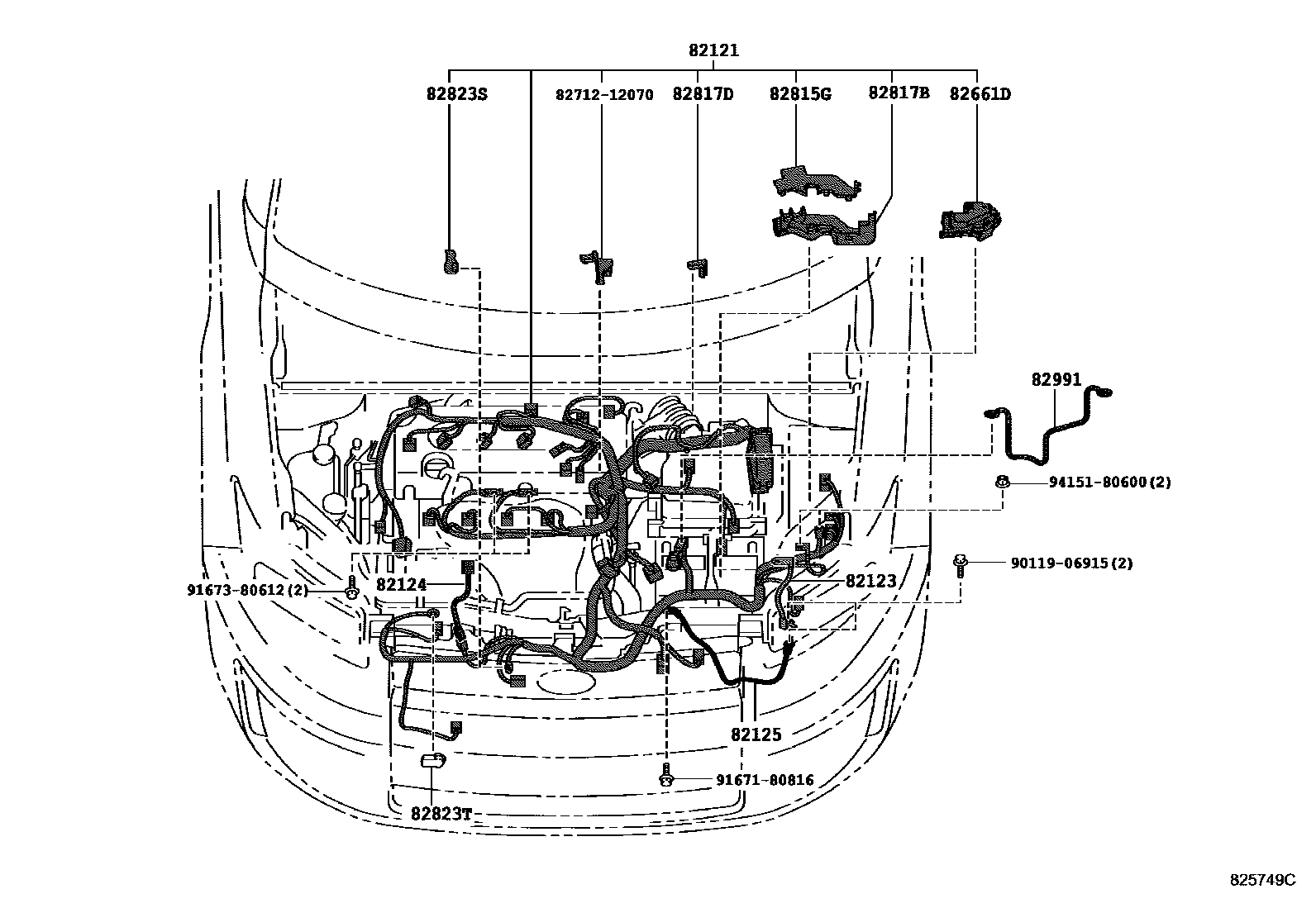

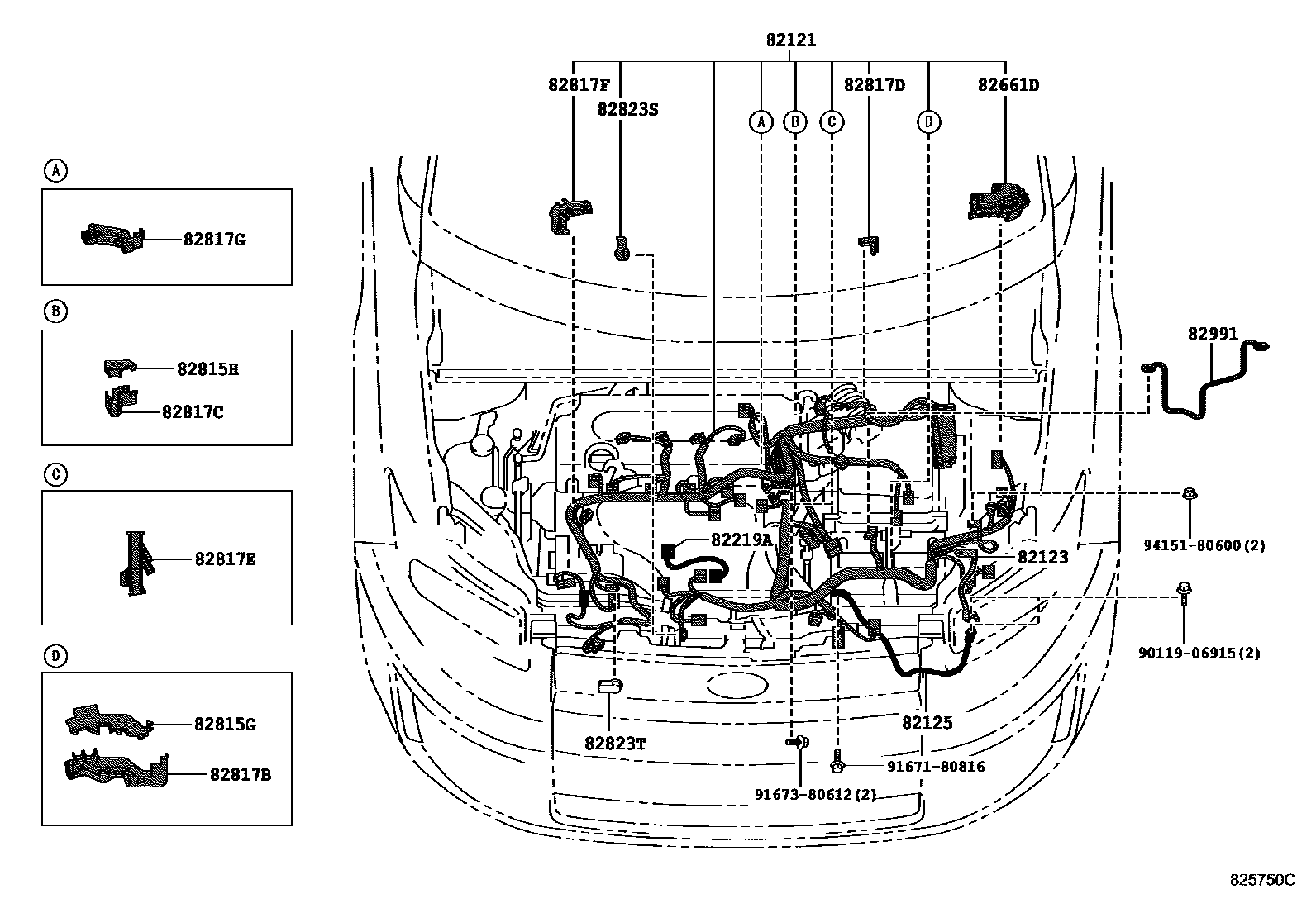

| 82121 | Engine wiring harness | 82121-12E80 · 82121-12E81 · 82121-12G70 · 82121-12G71 · 82121-12G72 · 82121-12G80 · 82121-12G90 · 82121-12L30 · 82121-12L31 |
| 82123 | Engine No. 3 wiring harness | 82123-12420 |
| 82124 | Engine No. 4 wiring harness | 82124-02090 |
| 82125 | Transmission wiring harness | 82125-12450 |

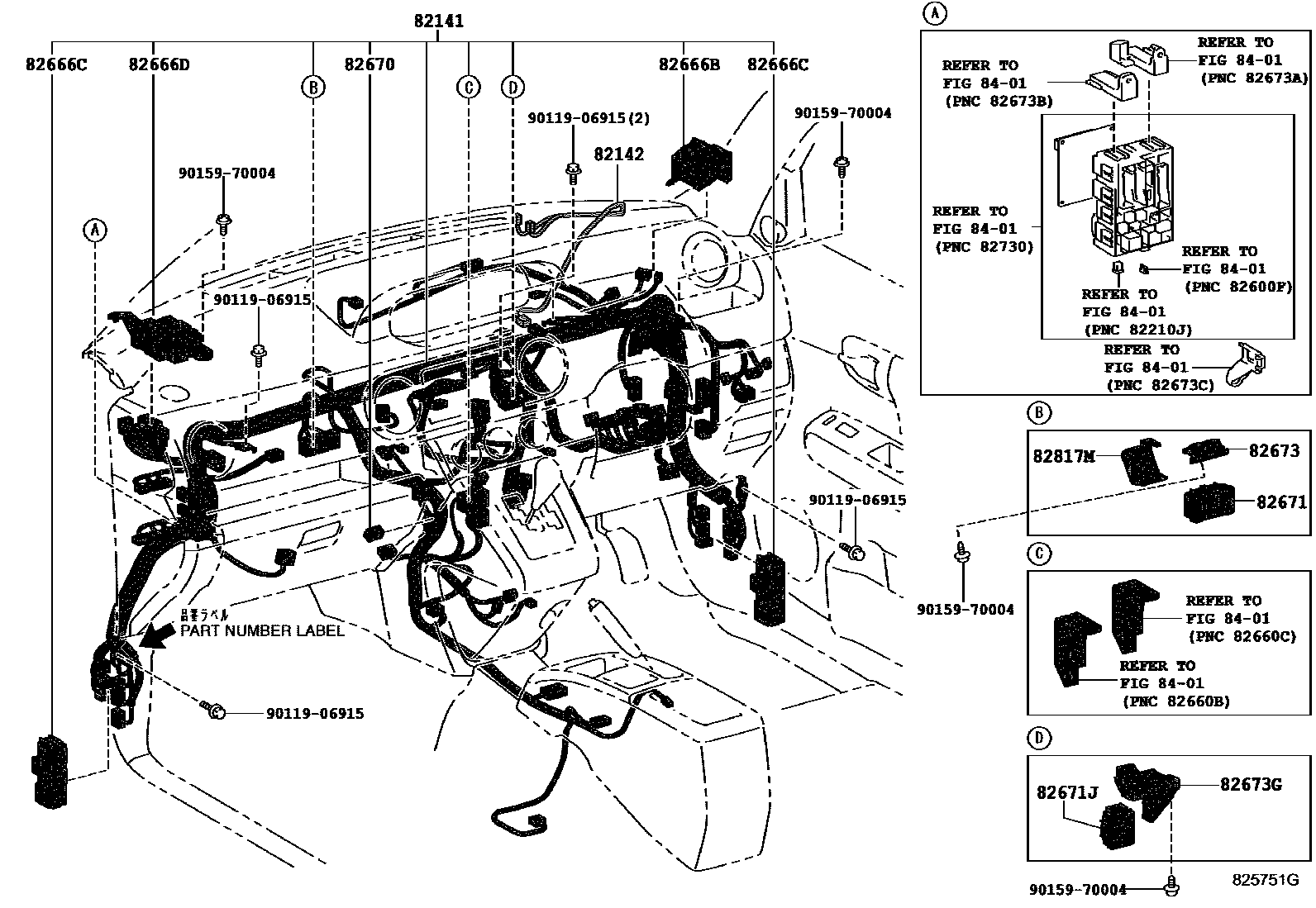

| 82141 | Dashboard wiring harness | 82141-1HT20 · 82141-1HT30 · 82141-1HT40 · 82141-1HT50 · 82141-1HT60 · 82141-1HT70 · 82141-1HT80 · 82141-1HT90 · 82141-1HU00 · 82141-1HU10 · 82141-1HU20 · 82141-1HU30 · 82141-1HU40 · 82141-1HU50 · 82141-1KU00 · 82141-1KU10 · 82141-1KU20 · 82141-1NT00 · 82141-1NT10 · 82141-1NT20 · 82141-1NT30 · 82141-1NT40 · 82141-1NT50 · 82141-1NT60 · 82141-1NT70 · 82141-1TQ20 · 82141-1TQ30 · 82141-1TS80 · 82141-1TS90 · 82141-1TT00 · 82141-1TT10 · 82141-1TT20 · 82141-1TT30 · 82141-1TT40 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-12450 |

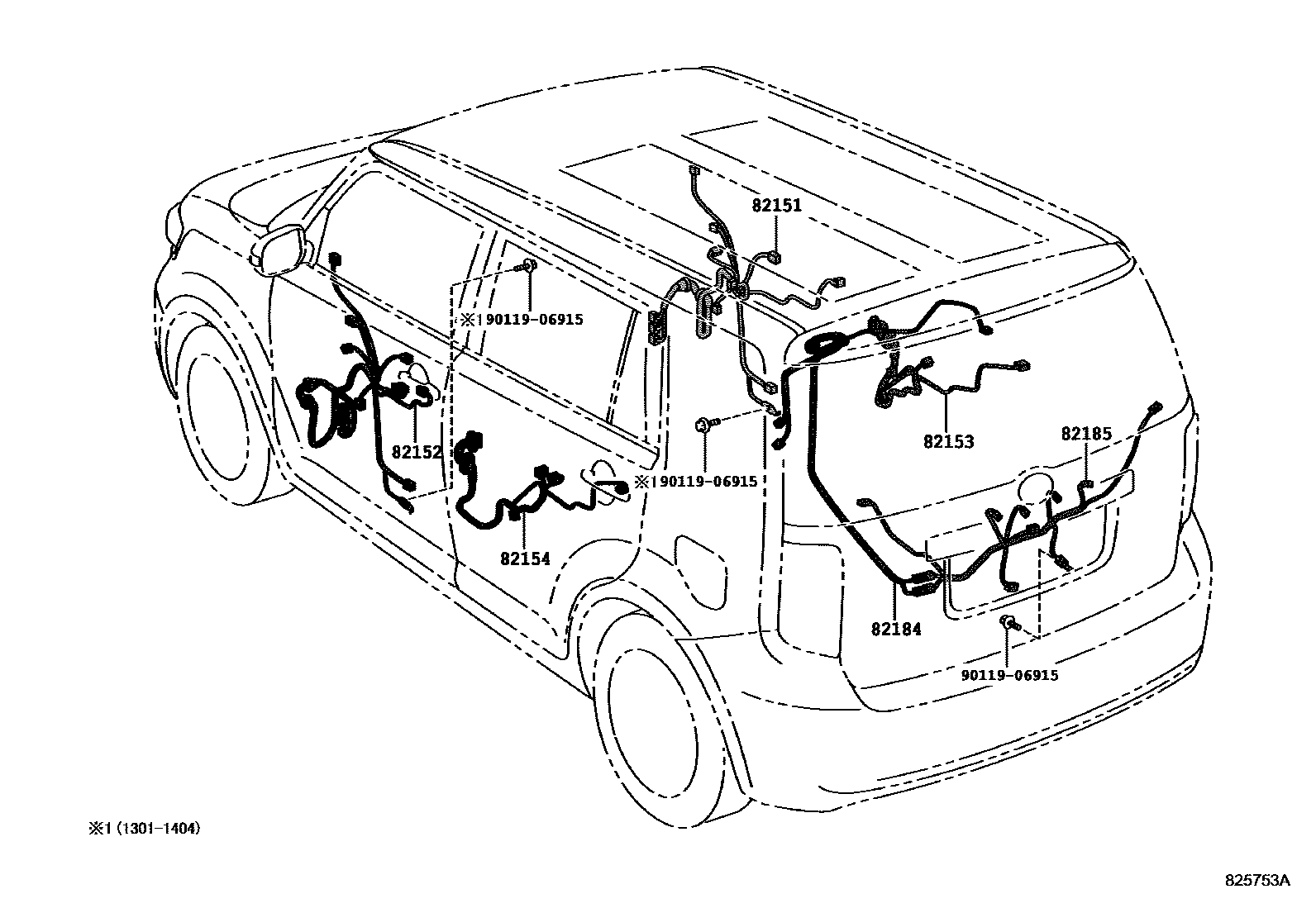

| 82151 | Right front door wiring harness | 82151-12L10 · 82151-12L11 · 82151-12L20 · 82151-12L21 · 82151-12M60 · 82151-12M61 · 82151-12U50 · 82151-12U60 · 82151-12U70 |
| 82152 | Left front door wiring harness | 82152-12L00 · 82152-12L01 · 82152-12L10 · 82152-12L11 · 82152-12M60 · 82152-12M61 · 82152-12T50 · 82152-12T60 · 82152-12T70 |
| 82153 | Rear door wiring harness No. 1 | 82153-12670 · 82153-12870 |
| 82154 | Rear door wiring harness No. 2 | 82154-12620 · 82154-12820 |

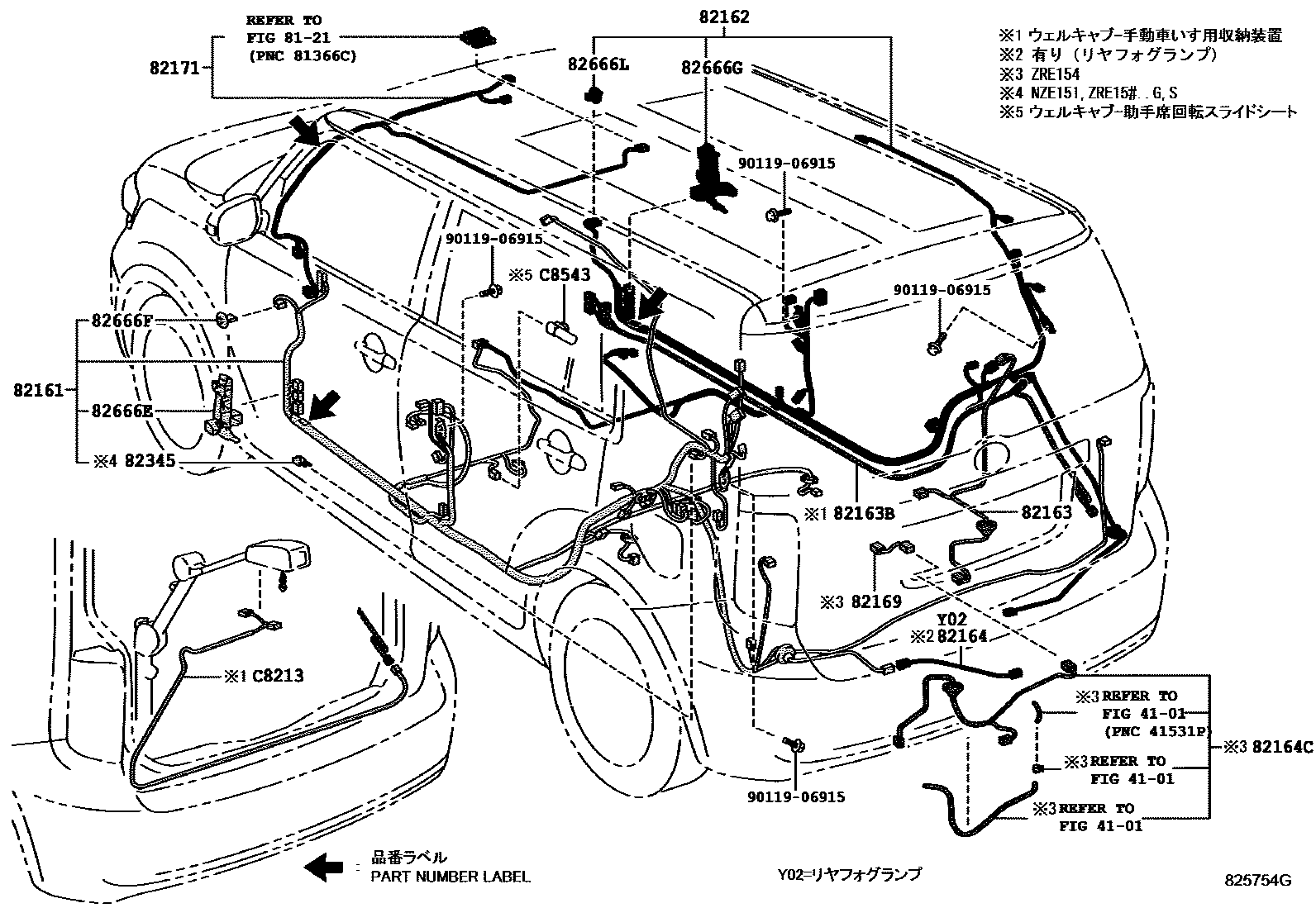

| 82161 | floor wiring harness | 82161-12L20 · 82161-12L30 · 82161-12L31 · 82161-12L32 · 82161-12L60 · 82161-12L61 · 82161-12L62 · 82161-12M40 · 82161-12M41 · 82161-12M42 · 82161-12T50 · 82161-12T51 · 82161-12U60 |
| 82162 | Floor wiring harness No. 2 | 82162-12F60 · 82162-12F61 · 82162-12F62 · 82162-12F70 · 82162-12F71 · 82162-12F72 · 82162-12G90 · 82162-12G91 · 82162-12G92 · 82162-12R00 · 82162-12R01 |
| 82163 | Floor wiring harness No. 3 | 82163-12250 · 82163-12260 · 82163-12270 |
| 82163B | No. 5 floor wiring harness | 82165-12020 · 82165-12021 · 82165-12030 · 82165-12031 |
| 82164 | Frame wiring harness set | 82164-12120 |
| 82164C | No. 4 floor wiring harness | 82164-12100 · 82164-12110 |

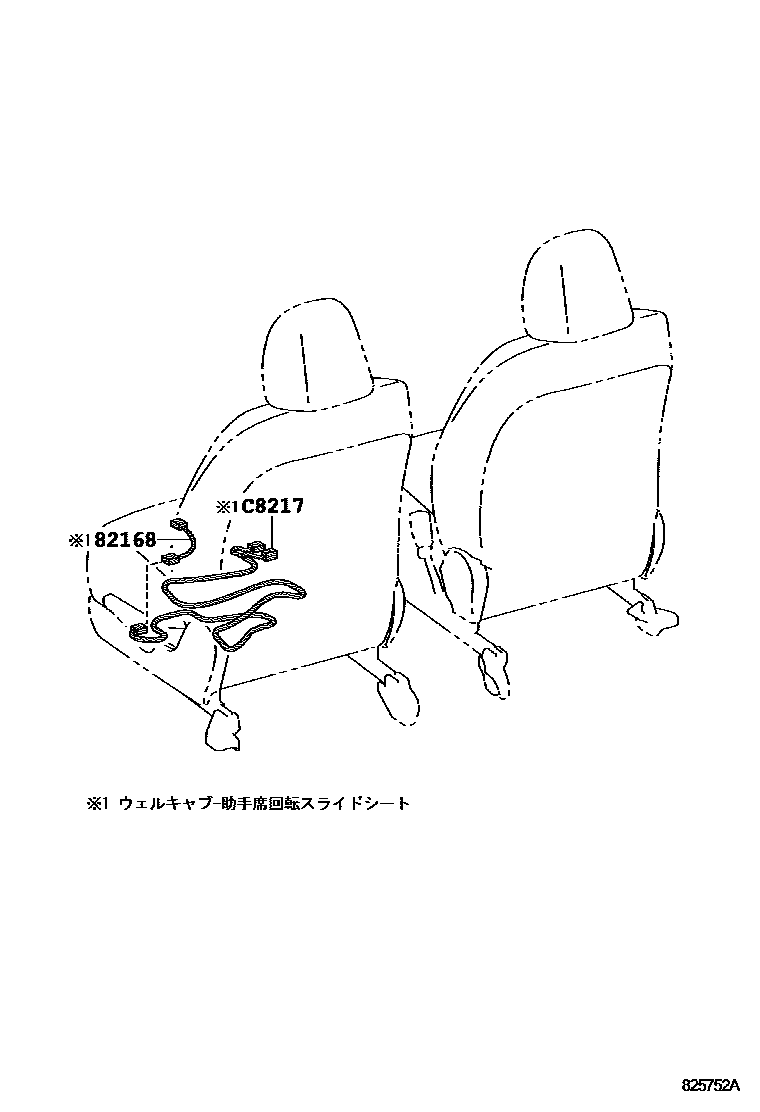

| 82168 | Seat No. 2 wiring harness | 82168-12010 |
| 82169 | No. 3 frame wiring harness | 82169-12010 · 82169-42010 |
| 82171 | Roof No. 1 wiring harness | 82171-12J50 · 82171-12J60 · 82171-12J70 · 82171-12J80 · 82171-12J90 · 82171-12K40 · 82171-12K50 |
| 82184 | Rear door No. 1 wiring harness | 82184-12660 · 82184-12661 · 82184-12670 · 82184-12680 |
| 82185 | Rear door wiring harness No. 2 | 82185-12750 · 82185-12751 · 82185-12760 · 82185-12761 · 82185-12770 |
| 82219A | sensor harness | 82219-52040 |
| 82345 | diode | 82345-12050 |
| 82661D | No. 1 relay box side cover | 82661-12280 |
| 82666B | No. 3 connector holder | 82666-12350 |
| 82666C | No. 4 connector holder | 82666-12360 |
| 82666D | No. 5 connector holder | 82666-12390 |
| 82666E | No. 6 connector holder | 82666-12400 |
| 82666F | No. 7 connector holder | 82666-20280 |
| 82666G | No. 8 connector holder | 82666-12370 |
| 82666L | No. 9 connector holder | 82666-20280 |
| 82670 | No. 1 junction box assembly | 82670-2B010 |
| 82671 | junction box | 82671-12300 |
| 82671J | No. 2 junction box | 82671-12290 |
| 82673 | Junction box bracket | 82673-12160 |
| 82673G | Junction box bracket | 82673-12150 |
| 82815A | Wiring harness protector cover | 82815-12150 |
| 82815B | Wiring harness protector cover | 82815-12160 |
| 82815G | Wiring harness protector cover | 82815-12170 |
| 82815H | Wiring harness protector cover | 82815-02250 · 82815-12210 |
| 82815J | No. 7 wire harness protector cover | 82815-02260 |
| 82815K | No. 8 wire harness protector cover | 82815-02270 |
| 82817 | No. 1 wire harness protection device | 82817-12B10 |
| 82817A | No. 2 wire harness protection device | 82817-12B20 |
| 82817B | No. 3 wire harness protection device | 82817-12B90 |
| 82817C | No. 4 wire harness protection device | 82817-02760 · 82817-12C00 |
| 82817D | No. 5 wire harness protection device | 82817-12860 |
| 82817E | No. 6 wire harness protection device | 82817-02770 · 82817-12E80 |
| 82817F | No. 7 wire harness protection device | 82817-02780 · 82817-12G00 |
| 82817G | No. 8 wire harness protection device | 82817-52380 |
| 82817M | No. 12 wire harness protection device | 82817-12D20 |
| 82823S | Toyota part | 82823-12090 |
| 82823T | Toyota part | 82823-22050 |
| 82991 | Fuse repair line | 82991-12110 |
| C8213 | Electric lift motor to body wiring harness | C8213-D1240 |
| C8217 | WELCAB seat main wiring harness | C8217-D1010 |
| C8543 | emergency resistor | C8543-12010 |
