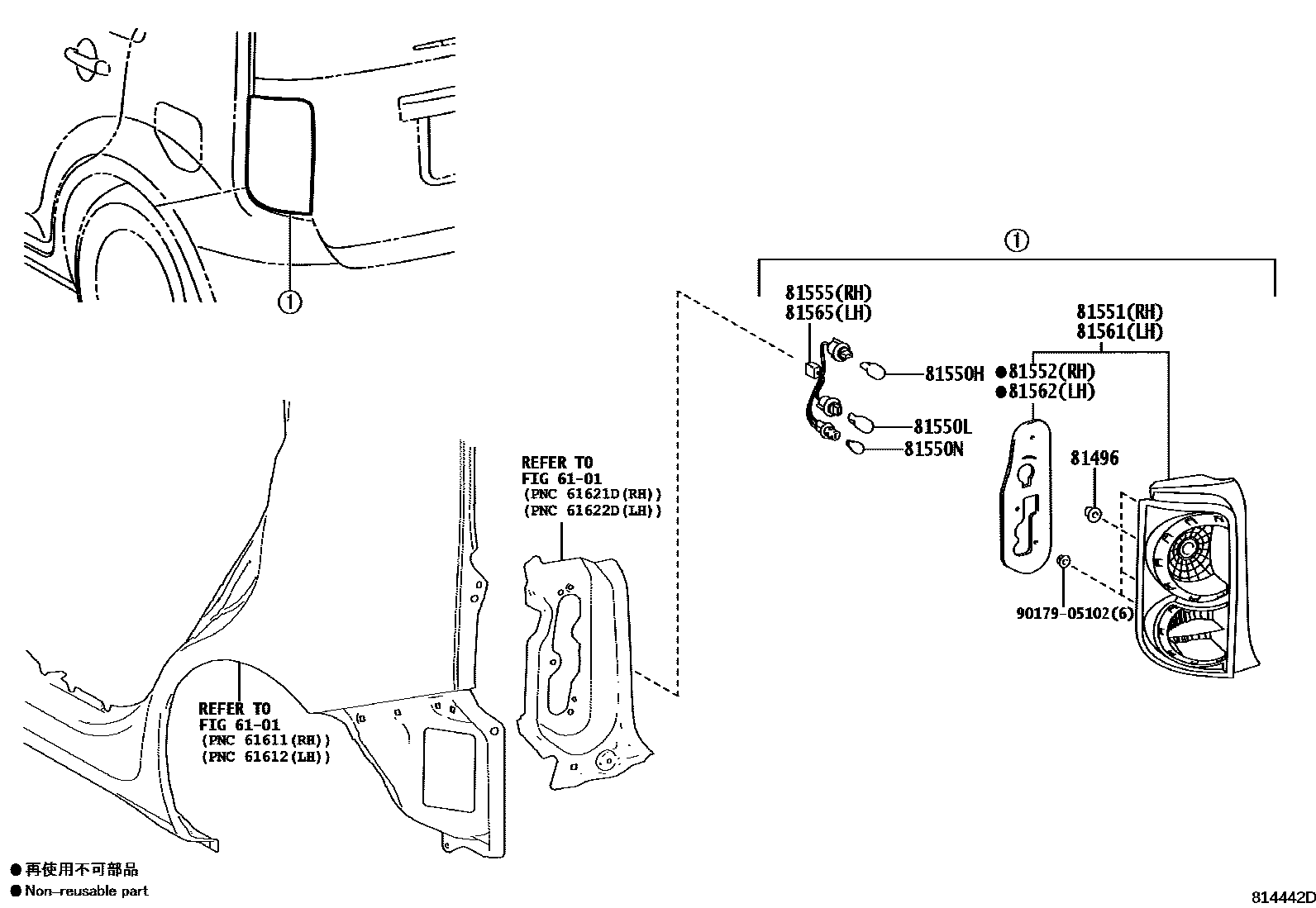

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-12060 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-15011 |
| 81550N | reversing light bulb | 90981-11059 |
| 81551 | Right rear combination lamp shade | 81551-12A70 · 81551-12B80 · 81551-12C70 |
| 81552 | Right rear combination lamp shade gasket | 81554-12A70 · 81554-12B80 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-12A70 · 81555-12B80 |
| 81561 | Left rear combination lamp shade | 81561-12A70 · 81561-12B80 · 81561-12C70 |
| 81562 | Left rear combination lamp shade gasket | 81554-12A70 · 81554-12B80 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-12A70 · 81555-12B80 |
