Toyota COROLLA Headlamp — Figure 8101

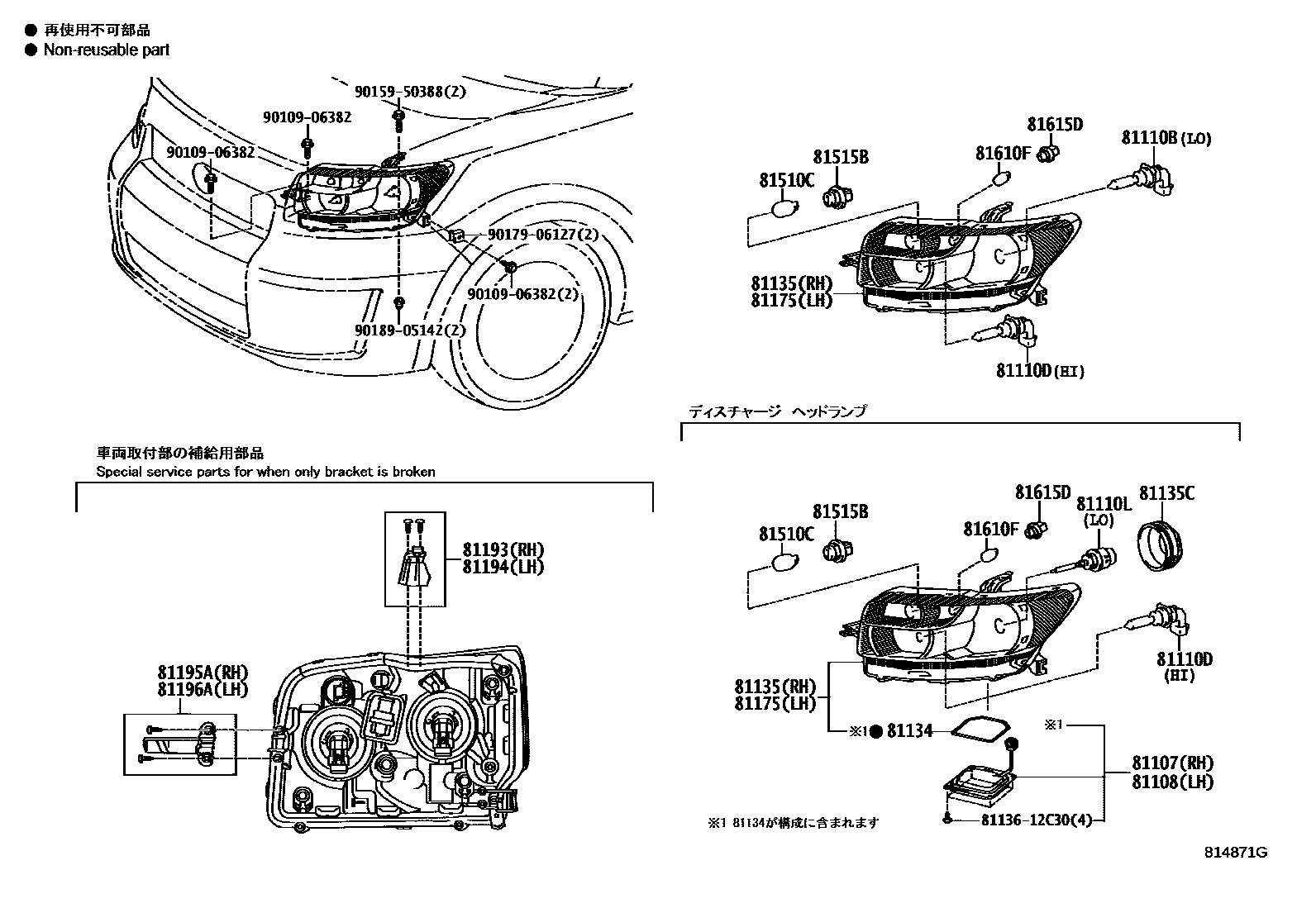

Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-12C30 |
| 81108 | Left headlight control ECU sub-assembly | 81107-12C30 |
| 81110B | Bulb (for headlight No. 1) | 90981-13047 |
| 81110D | Bulb (for headlight No. 2) | 90981-13046 |
| 81110L | Discharge headlight bulb | 90981-20018 · 90981-20028 |
| 81134 | headlight gasket | 90075-68007 |
| 81135 | Right headlight assembly | 81130-12C00 · 81130-12C01 · 81130-12C03 · 81145-12C10 · 81145-12F40 · 81145-12F41 · 81145-12J20 · 81145-12J21 |
| 81135C | No. 1 headlight rear cover | 81135-12B30 |
| 81175 | Left headlight assembly | 81170-12C00 · 81170-12C01 · 81170-12C03 · 81185-12C10 · 81185-12F40 · 81185-12F41 · 81185-12J20 · 81185-12J21 |
| 81193 | Right headlight upper protective ring | 81193-12110 |
| 81194 | Left headlight upper protective ring | 81194-12090 |
| 81195A | Right headlight lower protection ring | 81195-12120 |
| 81196A | Left headlight lower protection ring | 81196-12120 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 81515-42050 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81138-52570 |
