Toyota COROLLA 挡泥板和扰流板 — Figure 7601

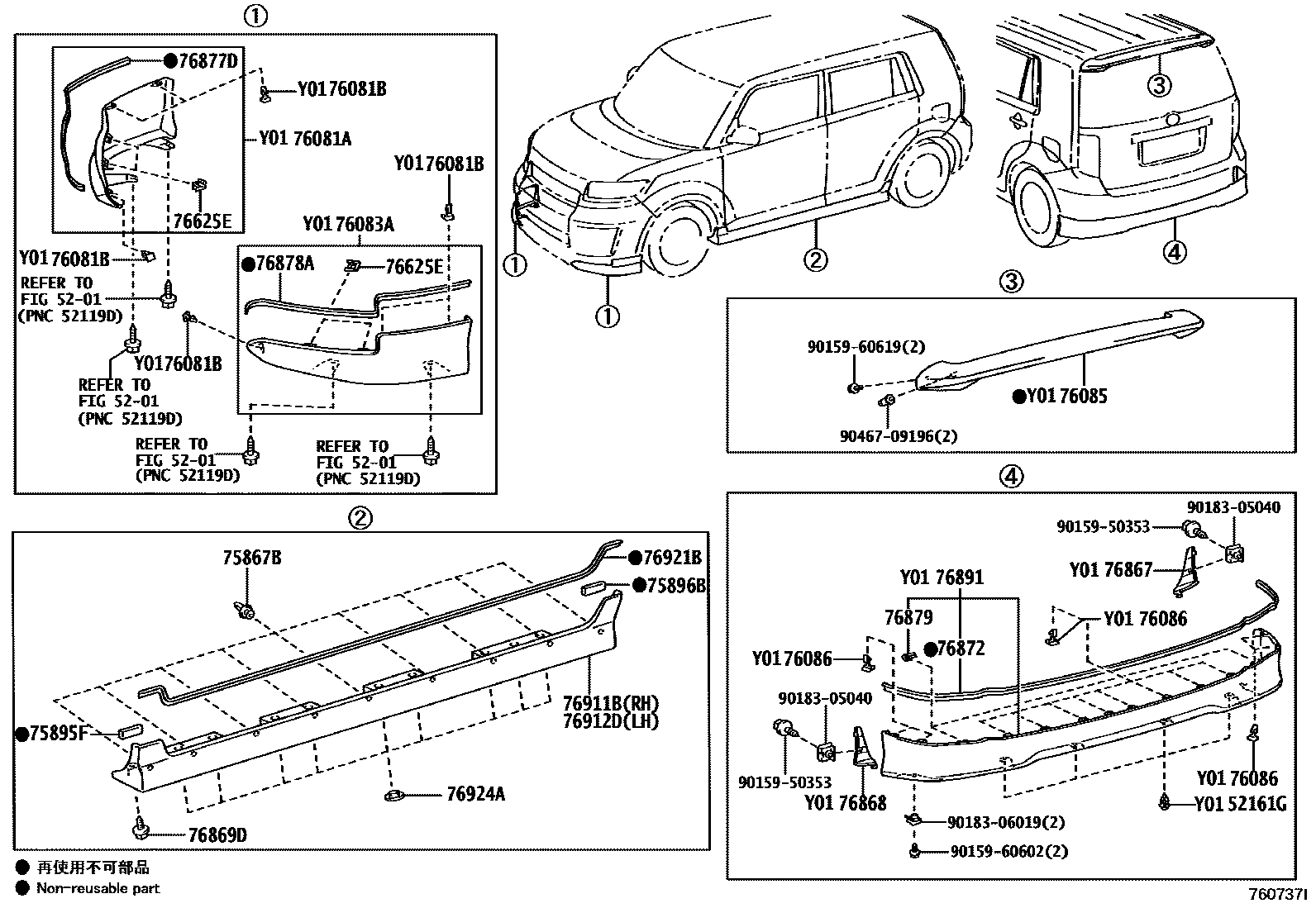

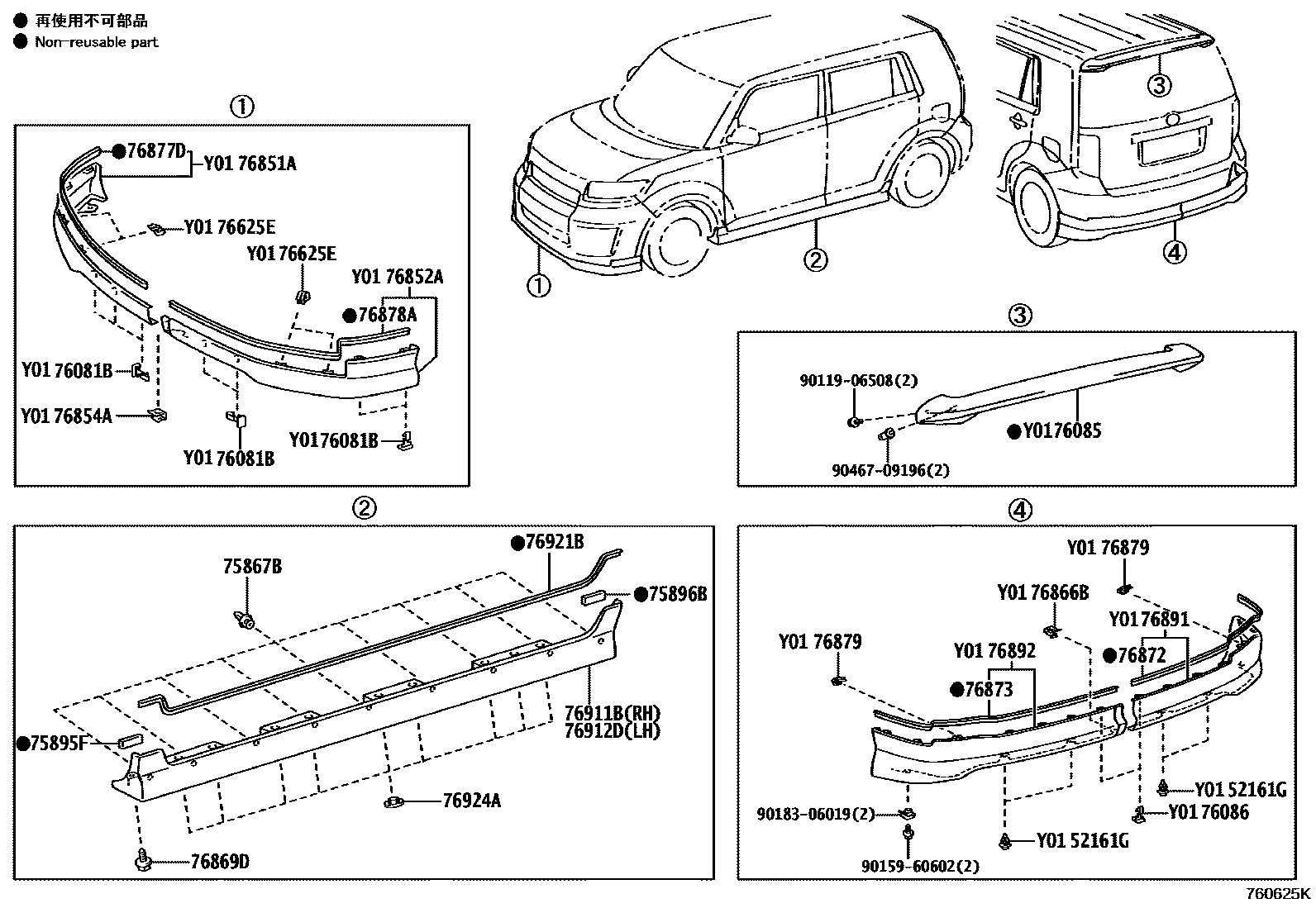

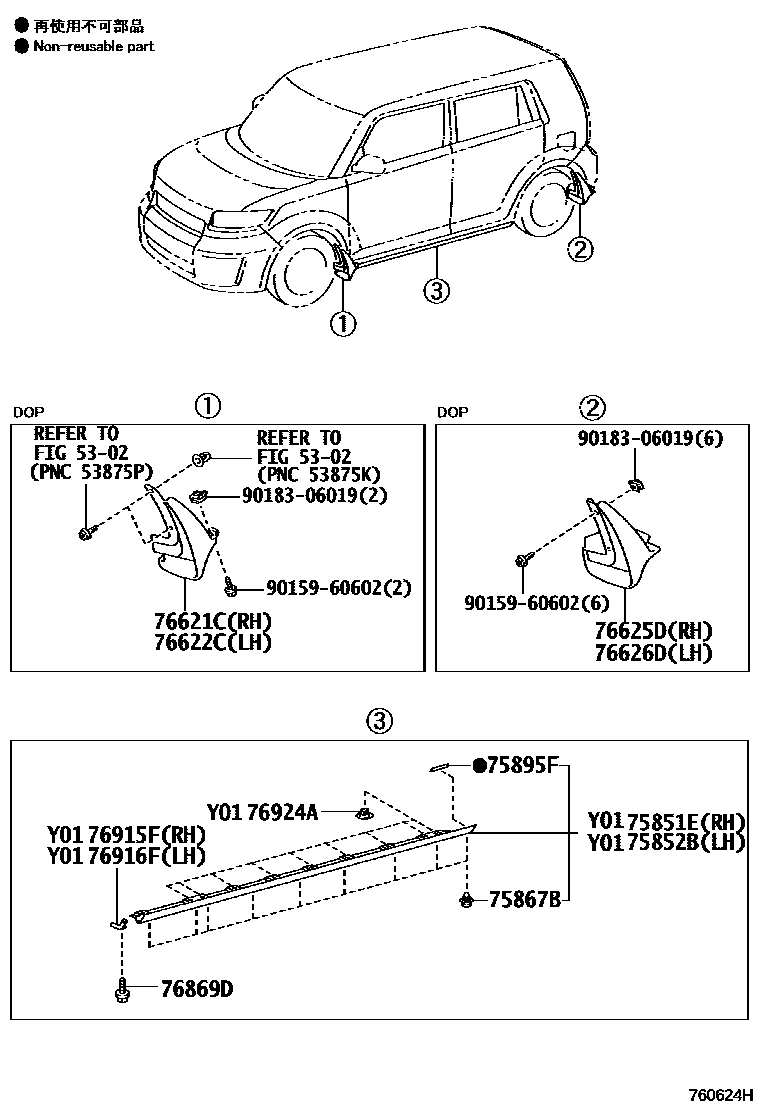

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161G | Rear bumper insert | 52161-16010 |
| 75851E | Right body door sill panel protection strip | 75851-12130 |
| 75852B | Left body door sill panel protection strip | 75852-12100 |
| 75867B | Door sill panel protective strip clip | 75867-33030 · 90467-10162 |
| 75895F | No. 1 protective strip tape | 75895-12050 · 75895-12060 · 75895-12070 |
| 75896B | No. 2 protective strip tape | 75896-12020 · 75896-12040 |
| 76081B | Front spoiler fixings | 52535-28020 |
| 76086 | Rear spoiler fixing sub-assembly | 52535-28020 |
| 76625E | clip | 76879-44010 |
| 76854A | No. 2 front spoiler fixing piece | 76854-44010 |
| 76866B | No. 2 rear spoiler fixing piece | 76854-44010 |
| 76867 | Right rear spoiler fixing | 76867-12140 |
| 76868 | Left rear spoiler fixing | 76868-12110 |
| 76869D | Toyota part | 90159-60431 · 90159-60602 |
| 76879 | No. 1 rear spoiler clip | 76879-44010 |
| 76915F | Right front fender | 76915-12120 |
| 76916F | Left front fender | 76916-12120 |
| 76924A | No. 2 side fender fixings | 76924-12040 |
